Mostrando 28–36 de 55 resultadosOrdenado por los últimos
-
DataloggersData Logger Hioki MR8880-20 Memory Recorder 4 Channel Fixed Inputs
Memory Recorder 4 Channel
- CAT III 600 V insulation performance
- Direct input and measurement of 3-phase power lines
- 4 analog + 8 logic channels
- Directly input 600 V AC/DC (CAT III) and 300 V AC/DC (CAT IV) input.
- Measure up to 2000V DC/1000V AC (CAT II) with the Differential Probe 9322 (separate power supply required.)
- Maximum 600V AC/DC input – no need for a differential probe
- 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
- Tough against harsh environments
- Operating temperature range: -10°C to 50°C
- Even when operating on battery power, the Hioki MR8880-20 can take measurements from 0°C (32°F) to 40°C(104°F)
- Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
- Built to withstand harsh environments
- Extensive operating temperature range [-10°C (14°F) to -50°C(-58°F)]
- Rugged, damage-resistant design features standard side protectors that guard the instrument’s case.
- Measurement Applications
- Plant equipment maintenance, inspections, and fault monitoring
- Elevator maintenance, inspections, and fault monitoring
- Train maintenance and inspections and rolling stock development
- Automobile development, malfunction analysis, etc.
(0 reviews) -
DataloggersVoltímetro Digital Hioki U8991 – Digital Voltmeter Unit
Digital Voltmeter Unit
- DVM unit dedicated to 4-channel DCV measurement, 108 channels simultaneous sampling in combination with MR8740T
- High-precision measurement of fine voltage fluctuation investigation etc. of sensor output
- High accuracy of ±0.02 % and super-high 1.2 million-count resolution
- High-speed sampling at 50 samples/s
- Isolated input (channel-to-channel and channel-to-chassis: max. rated voltag to earth of 100 V AC/DC).
(0 reviews) -
DataloggersUnidad Generadora VIR Hioki U8794
VIR Generator Unit. Generation unit can be used for various simulation tests instead of sensor output. For the MR8740-50.
- As an inspection device of the ECU, it is ideal for generating simulation signals of various sensors, inspection of electronic parts, equipment maintenance
- DC voltage, DC current, and resistance simulation output possible
- In resistance generation, the voltage to be connected is measured, the output current is calculated from the set resistance value, and simulated output
- Used in combination with Memory HiCorder series MR8740T (not available in other models)
- Insulation between each output channel and between channel and chassis.
(0 reviews) -
DataloggersData Logger Hioki PR8112 Pen Recorder
2-Pen Chart Recording of DC Voltage Signals with an Easy-to-Use Portable Pen Recorder
- Easily portable, Compact size
- Pen-based, Records data reliably
- Outdoor-ready, Ships with a drip-proof cover
- Easy enough for anyone to use, Features simple operation
- Support for three power sources, Can be powered with dry-cell batteries.
(0 reviews) -
DataloggersData Logger Hioki MR8875 Kit
Memory Hi Corder w/ Analog Input Module
- Analog Input card included. See accessories/brochure for additional options.
- 4 Channel, 0 – 150 V, DC – 100 kHz
- Up to 4 slots, user installable input cards in any combination by plugging into the main unit
- 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
- Measure multiple channels simultaneously despite handheld portable design
- Max. 2 μsec high-speed simultaneous logging for all input channels
- Save directly to the SD Card in real time for uninterrupted long-term logging
- 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
- FFT calculation, waveform calculation functions for advanced analysis
- Intuitive touch screen for optimal operability
- Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests
- 3 different power supplies.
(0 reviews) -

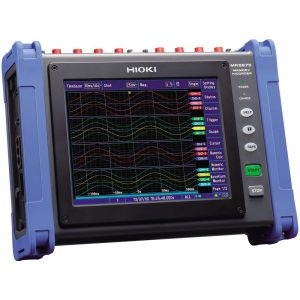

DataloggersData Logger Hioki MR8875 Memory HiCorder (Max. 16-60 channels, 32MW)
Memory Hi Corder – Instrument only
- Input cards not included. Must order at least one for a functional system.
- Kit with Analog input module
- Up to 4 slots, user installable input cards in any combination by plugging into the main unit
- 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
- Measure multiple channels simultaneously despite handheld portable design
- Max. 2 μsec high-speed simultaneous logging for all input channels
- Save directly to the SD Card in real time for uninterrupted long-term logging
- 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
- FFT calculation, waveform calculation functions for advanced analysis
- Intuitive touch screen for optimal operability
- Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests.
(0 reviews) -
DataloggersData Logger Hioki MR8870-20 PRO KIT – Memory HiCorder Pro Kit
MR8870-20 w/ 9782, 9780, 9728, 2 x L9197
- Kit includes Memory HiCorder (MR8870-20), Carrying case (9782), Battery pack (9780), PC card (9728), test leads (x2) L9197
- Mode for recording instantaneous waveform and RMS fluctuations
- Save values in real time to a CF card
- Record four channels at once by synchronizing two instruments with the bundled PC application
- Compact and easy to carry
- Easy, intuitive operation
- Fast, 1MS/s performance despite the compact size
- Built-in, compact-yet-sharp QVGA-TFT wide LCD.
(0 reviews) -

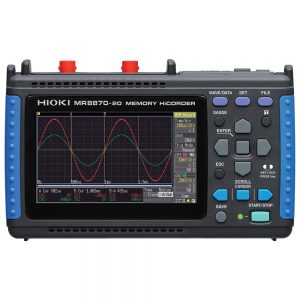

DataloggersData Logger Hioki MR8870-20 Memory HiCorder, Memory Recorder 2 CH
Memory Recorder 2 CH
- MR8870-20 Memory HiCorder
- New mode for recording RMS fluctuations in addition to instantaneous waveform mode
- Save values in real time to a CF card
- Record four channels at once by synchronizing two instruments with the bundled PC application
- Compact and easy to carry
- Easy, intuitive operation
- Fast, 1MS/s performance despite the compact size
- Built-in, compact-yet-sharp QVGA-TFT wide LCD.
(0 reviews) -
DataloggersData Logger Hioki LR8450-01 Kit – Memory Hilogger Wireless LAN model Kits
LR8450-01 w/ C1012, Z4003, 2 x Z1007
- Memory Hilogger Wireless LAN model Kits with Hioki C1012, Z4003 and Z1007
- Wireless LAN model expandable to 330 ch with wireless and plug-in units
- Record voltage output from pressure and other sensors with 1ms sampling speed
- Directly connect strain gauge and measure signals in as fast as 1ms intervals
- Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
- Avoid wiring issues by minimizing cable length using wireless units
- Monitor data captured remotely on PC with wireless LAN technology.
(0 reviews)
