Logtag TRED30-16 Vaccine Kit
- Requires LT-INT-HID or LTI-Wifi Cradle (not included) to connect to a computer to read/program the logger
- Kit includes TRED30-16R, ST100K-15 extension probe (65mm tip length, No Handle, 1.5m Cable), Glycol buffer, NIST traceable calibration certificate
- Up to 15,900 sets of recordings – enough memory for 66 days at 6min logging
- Records temperature from -40°C to +99°C
- Comprehensive customization options including alarm settings, sample interval and trip duration
| Logtag Vaccine Kits | |
| Kit Model | Includes |
| Logtag TRED30-16 Vaccine Kit | TRED30-16R, ST100K-15 Ext probe, Glycol buffer, NIST traceable calibration certificate |
| Logtag UTRED-16 Vaccine Kit | Utred-16, ST100K-15 Ext probe, Glycol buffer, factory calibration certificate |
| Logtag UTRED30-WIFI Vaccine Kit | Utred30-WIFI, ST100K-15 Ext Probe, Glycol buffer, NIST traceable calibration certificate |
| Logtag UTREL30-16 Vaccine Kit | UTREL30-16, ST10S-15 Ext Probe, NIST traceable calibration certificate |
| Logtag UTREL30-16-WIFI Vaccine | UTREL30-16, ST10M-15 Ext Probe, Buffer Kit, NIST traceable calibration certificate |
Requires LT-INT-HID or LTI-Wifi Cradle (not included) to connect to a computer to read/program the logger

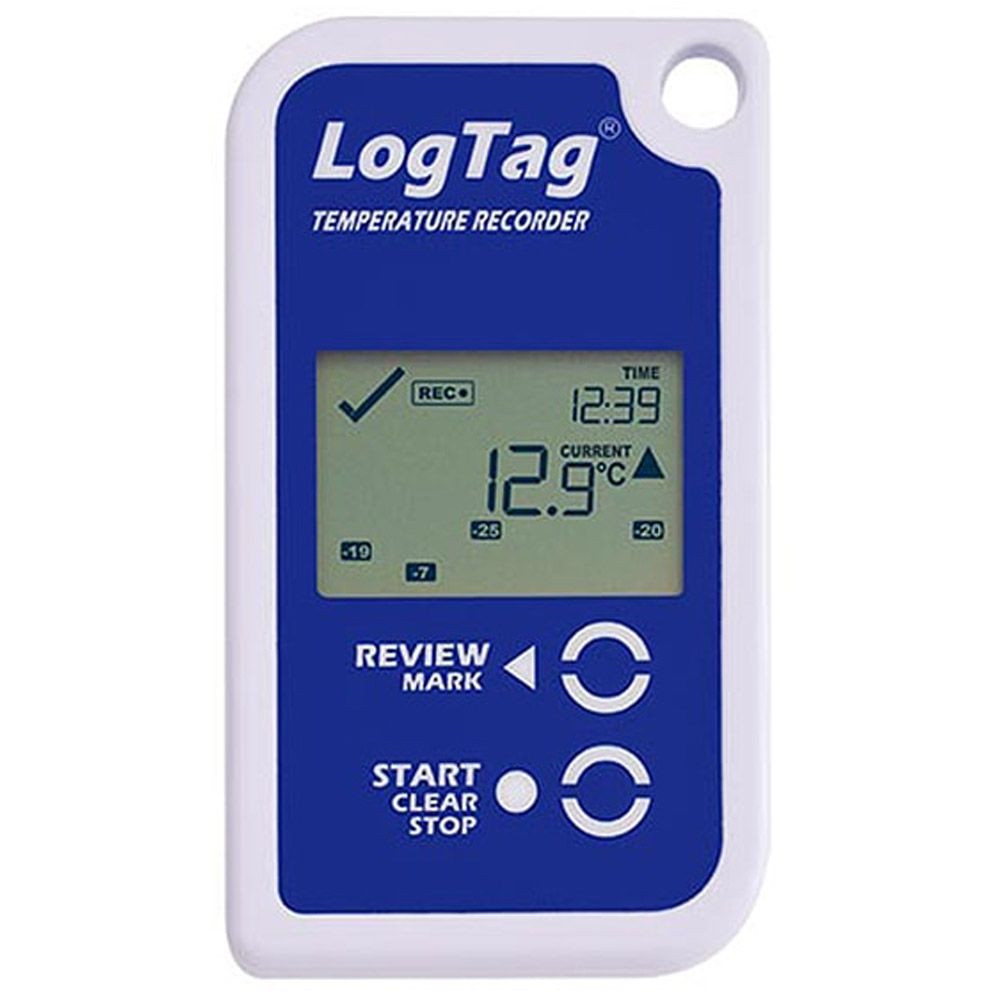

The LogTag TRED30-16R Temperature Recorder measures and stores up to 15,900 temperature readings over a -40°C to +99°C (-40°F to +210°F) measurement range from an External Probe.
The display is designed to show ‘at a glance’ if temperature excursions have occurred during the current day and up to the previous 29 days.
The alarm is triggered if temperature readings are outside pre-set alarm limits. The status indicator changes from a ✔ to a X and, if configured, the audible alarm will sound.
Manufacturer Specs
| Product Model | TRED30-16R (Replaceable Battery) |
| External Temperature Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F) |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature Range | -10°C to +40°C (14°F to +104°F) |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F) Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F) Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F) Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F) Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F) 0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F) 0.3°C (0.5°F) for measurements +70°C to +80°C (+158°F to +176°F) 0.4°C-0.6°C (0.7°F to 1°F) for measurements +80°C to +99°C (+176°F to +210°F) LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Recording Capacity | 15,905 temperature readings 66 days @ 6min logging Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics |
| Sampling Interval | Configurable from 30 seconds to hourly |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18hours |
| Recording Indication | State indicator REC |
| Download Time | Typically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used |
| Environmental | IP61 (when vertically mounted or hung) |
| Power Source | 3V CR2032 (LiMnO2) coin cell battery, user replaceable |
| Battery Life | 1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible. |
| Real Time Clock | Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Standard External Probe Cable Lengths | Standard: 1.5m (4’11″). Extended: 3m (9’10″) (Recommended maximum). |
| Remote External Probe Type | PTFE (FDA food contact rated) coaxial |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) |
| Weight | 41g without External Probe |
| Case Material | Polycarbonate |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | -40 F (-40 C) |
| Min Temperature | 210 F |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| Input Source | External Probe |
| SAMPLE RATE/Intervals | 30 seconds to hourly |
| Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). |
| LCD Screen | Yes |
Test Equipment General Attributes |
|
| Unique Features | 30 Day display with external probe External Sensor Measurement Range: -40°C to +99°C (-40°F to +210°F) Operating Temperature Range: -30°C to +60°C (-22°F to +140°F) Storage Temperature Range: -10°C to +40°C (14°F to +104°F) |
| Warranty | 1 YEARS |
| Storage | Internal Memory |
| Product Weight | 0.0904 LBS |
| Product Height | 3.6 IN |
| Product Length | 2.145 IN |
| Product Width | 0.338 IN |
| Shipping Weight | 0.1039 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.19.8085 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
