Sistema de inspección de tuberías Gen-Eye GPR-500 Prism

Descripción

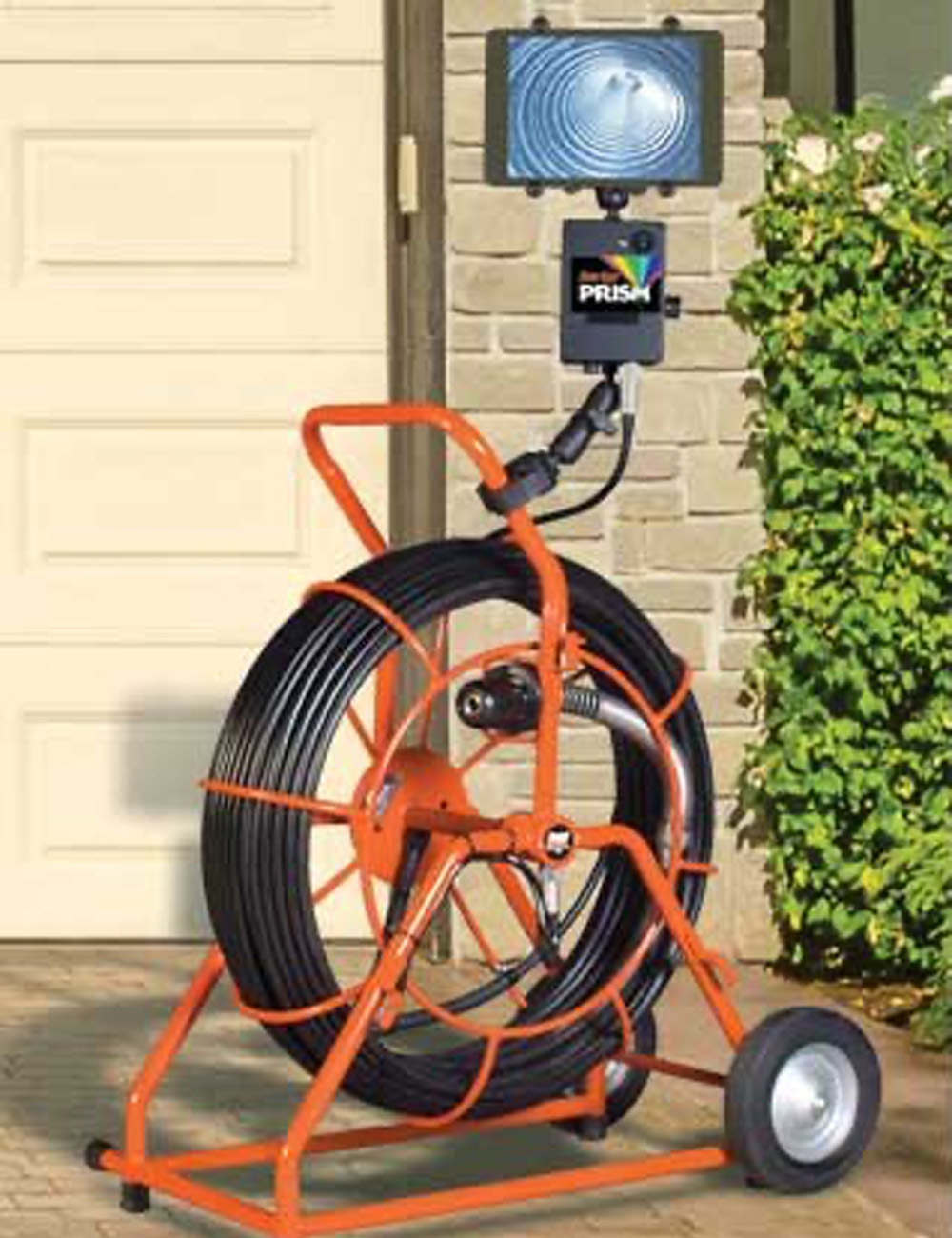

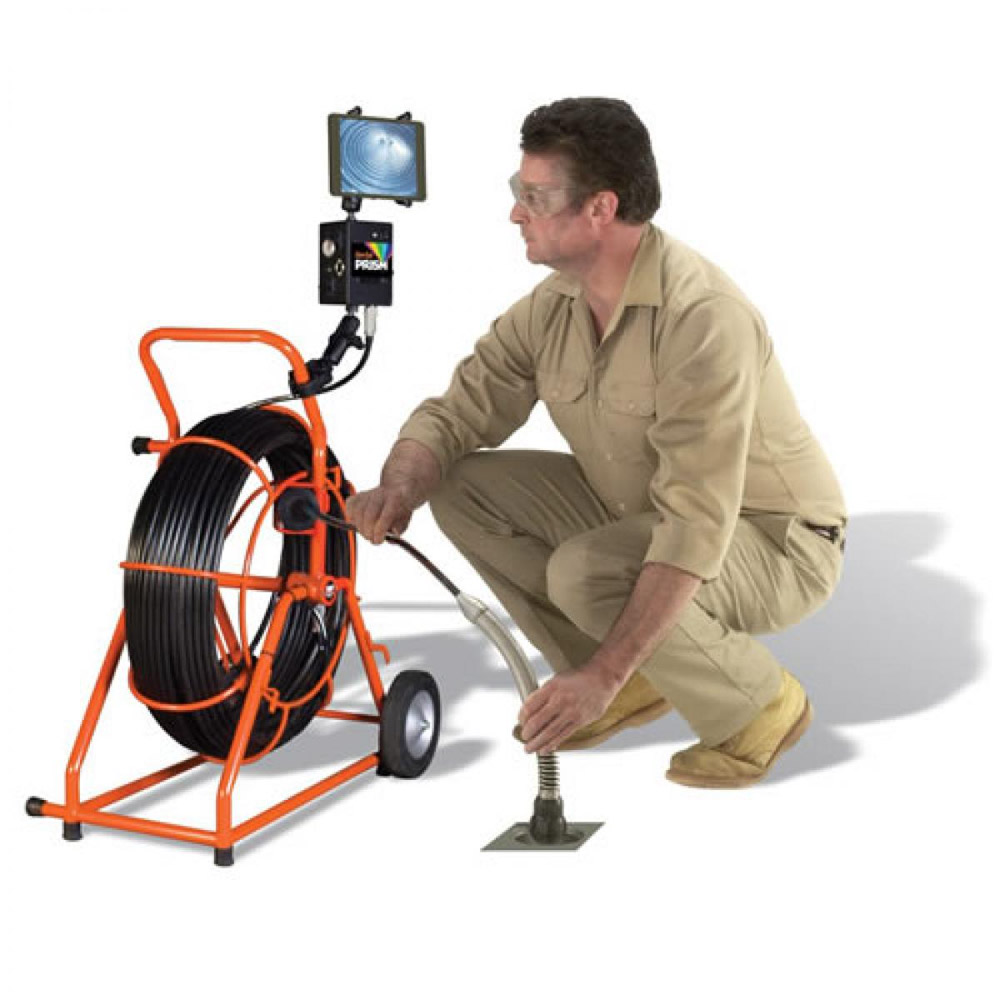

Gen-Eye GPR-500 Prism Command Module complete with Wi-Fi, Tablet Holder, Keyboard, and Docking Arm

The new Gen-Eye Prism video inspection system lets you use your own tablet or Smartphone to view your inspection and record it. The Wi-Fi transmitter inside the Prism sends video to your Smartphone or tablet. A free App lets you easily view and record video inspections at a range of up to 500 feet.

The compact, rugged Prism Command Module weighs just 3 lbs. and can be mounted securely on any Gen-Eye GL or POD reel. An expandable holder on top of the unit safely supports your standard size tablet and is adjustable for easy viewing. Optional brackets for mini-tablets and Smartphones are available.

The Prism offers all the features of full-size video inspection systems in a compact, fan-cooled package. It includes an on-screen distance counter to track how much push rod is in the line, a nine page titler with full keyboard to add your company name and job locations to your videos, a date and time stamp for your records, and an LED Dimmer control. Also included: a Power Port for your tablet or Smartphone, so you can keep it charged as you do your inspection.

Complete systems include a self-leveling color camera that automatically keeps the picture right side up, 2″, 3″, and 6″ trap skids, and a 512 Hz transmitter for easy camera tracking with General’s Hot Spot® pipe locator.

Use your own tablet or Smartphone

An expandable holder on top of the unit safely supports your standard size tablet and is adjustable for easy viewing. Optional brackets for mini-tablets and Smartphones are available.

Durable Carrying Case

Prism Command Module, adjustable holder, docking arms and clamps, full keyboard, and power cord are securely contained in padded carrying case to protect your investment during transport.

Manufacturer Specs

General Specifications
	Self-Leveling Color Camera	Color Camera	Mini Self-Leveling Color Camera	Color Mini Camera
Line Capacity	3” to 10”	3” to 10	2” to 4”	2” to 4”
Reel Capacity	200, 300, 400 ft.	200, 300, 400 ft.	100 or 200 ft.	100 or 200 ft.
Sensitivity	0.5 Lux	0.5 Lux	0.008 Lux	0.5 Lux
Lighting	16 White LED’s 88K MCD	16 White LED’s 88K MCD	4 Super Bright White LED’s 78K MCD	12 White LED’s 68K MCD
White Balance	Auto High Speed	Auto High Speed	Auto High Speed	Auto High Speed
Camera Dimensions	1.625” Dia. X 2.7” Long	1.625” Dia x 2.2” Long	1.125” Dia. X 1.74” Long	1.125” Dia. X 1.625” Long
Push-Rod Diameter	.475” Gel-Rod®	.475” Gel-Rod®	.400” Gel-Rod®	.400” Gel-Rod®
Reel Dimensions	29” L x 16” W x 33-1/2” H	29” L x 16” W x 33-1/2” H	18” L x 16” W x 19” H	18” L x 16” W x 19” H
Video Format	NTSC or PAL	NTSC or PAL	NTSC or PAL	NTSC or PAL
Power	110v/60 Hz AC, 12 VDC	110v/60 Hz AC, 12 VDC	110v/60 Hz AC, 12 VDC	110v/60 Hz AC, 12 VDC
Operating Temperature	14° F to 122° F -10° C to 50° C	14° F to 122° F -10° C to 50° C	14° F to 122° F -10° C to 50° C	14° F to 122° F -10° C to 50° C

Tech Specs

Test Equipment General Attributes
Product Weight	3 LBS
Product Height	6.00 IN
Product Length	19.00 IN
Product Width	14.25 IN
HTS/Schedule B Number	9013.80.9000
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	6.00 IN
Shipping Length	19.00 IN
Shipping Width	14.25 IN
