Gen-Eye C-GP-A MINI-POD with 125′ Mini Push-Rod, Sonde, 7″ LCD Screen, Color Mini-Camera, Open Mini-Reel and 3″ Trap Skid

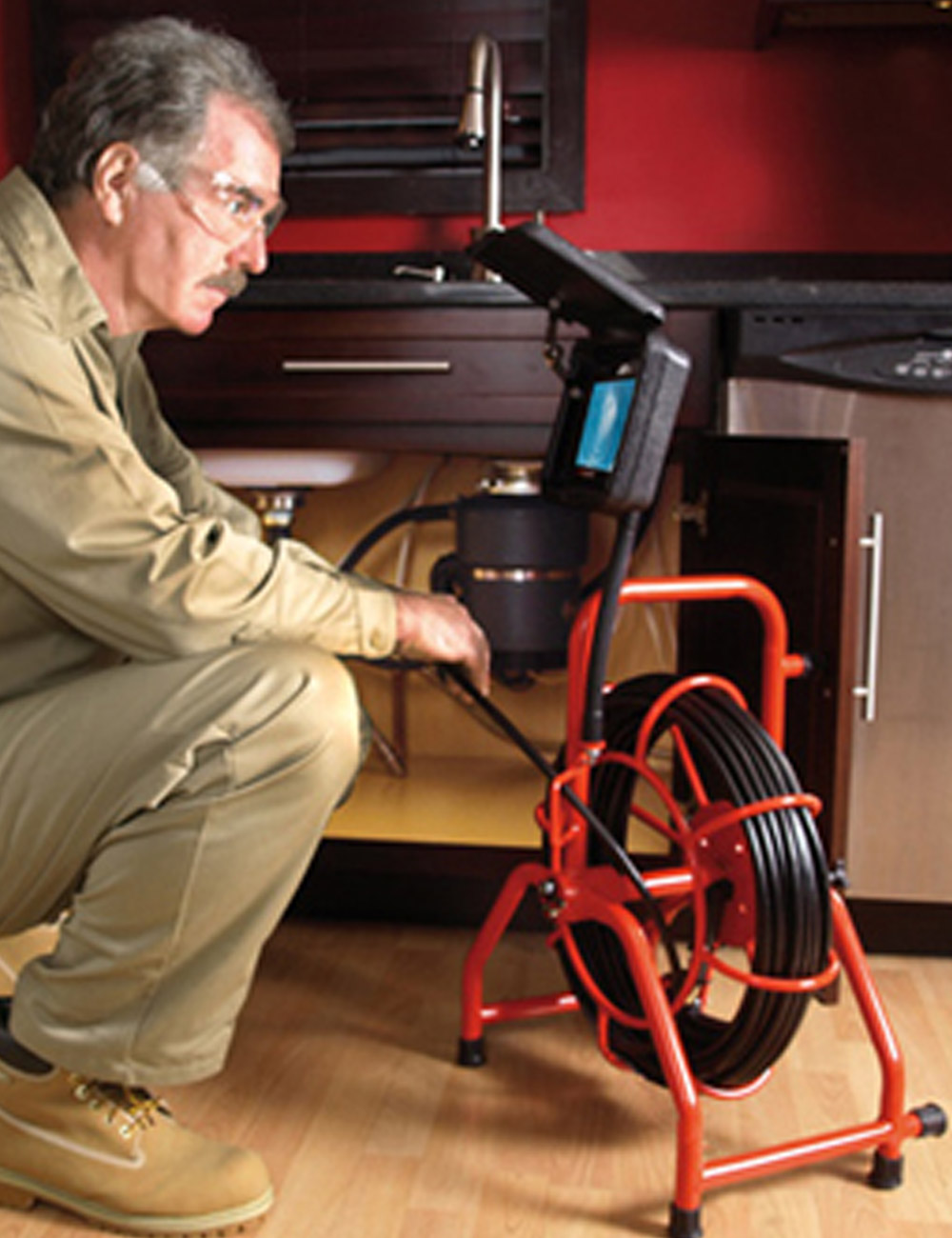

The lightweight, Gen-Eye POD and MINI-POD® combine camera, reel, and monitor in an all-in-one package.
You get a large 7” LCD color monitor protected by a padded case. It’s mounted on a rugged yet flexible gooseneck that swivels to give you the best viewing angle, wherever you’re working.

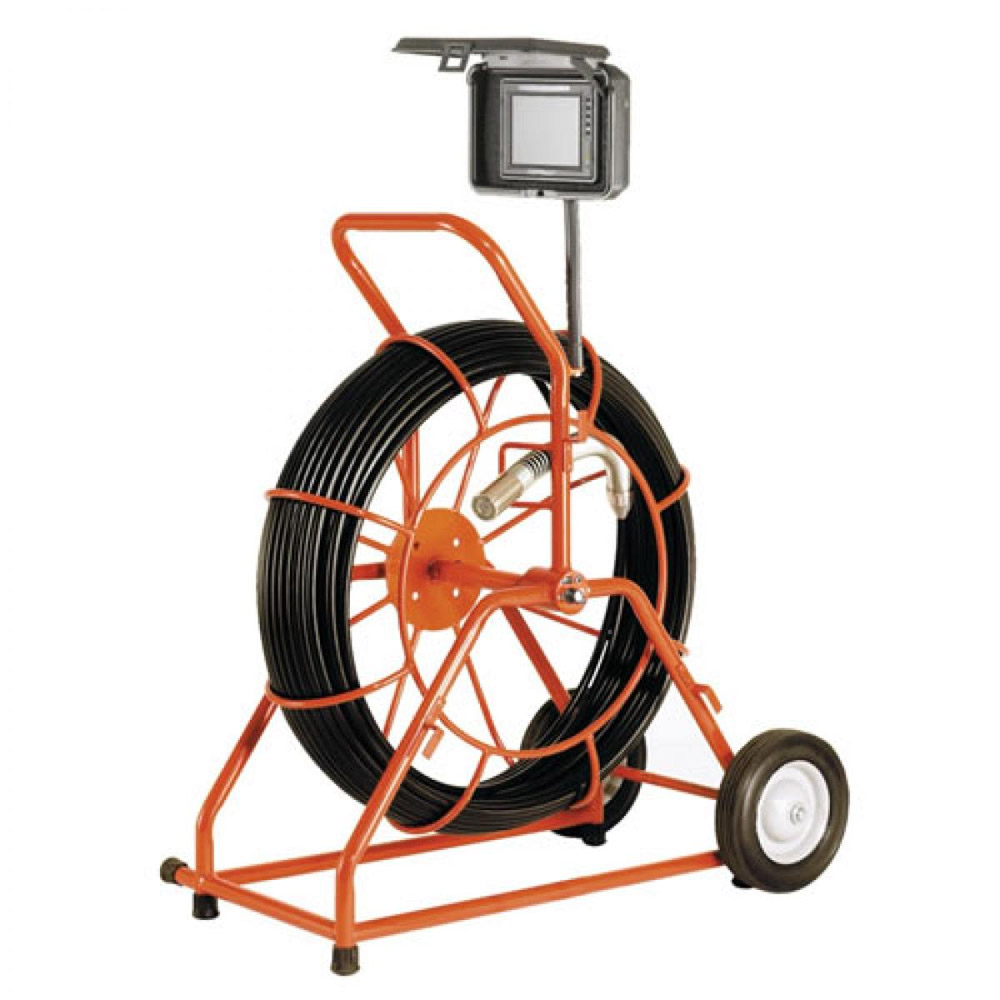

The full size Gen-Eye POD features a self-leveling camera and 200 ft. of Gel-Rod® for trouble-shooting 3” to 10” drain lines. The big capacity MINI-POD carries 125 ft. or 175 ft. of push-rod and color mini-camera for inspecting 2” to 4” drain lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
There’s lots more, like an LED Dimmer Control, both AC and DC power cords, 2″ and 3” Trap Skids, and a 512 Hz transmitter. A video out connection lets you record on an external device.
Skid designs Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
Manufacturer Specs
| General Specifications | ||||
| Full Size POD w/ Self-Leveling Color Camera | Full Size POD w/ Full Size Color Camera | MINI-POD w/ Mini Self-Leveling Color Camera | MINI-POD w/ Color Mini Camera | |
| Line Capacity | 3” to 10” | 3” to 10 | 2” to 4” | 2” to 4” |
| Reel Capacity | 200, 300, 400 ft. | 200, 300, 400 ft. | 100 or 200 ft. | 100 or 200 ft. |
| Sensitivity | 0.5 Lux | 0.5 Lux | 0.008 Lux | 0.5 Lux |
| Lighting | 16 White LED’s 88K MCD |
16 White LED’s 88K MCD |
4 Super Bright White LED’s 78K MCD |
12 White LED’s 68K MCD |
| White Balance | Auto High Speed | Auto High Speed | Auto High Speed | Auto High Speed |
| Camera Dimensions | 1.625” Dia. X 2.7” Long | 1.625” Dia x 2.2” Long | 1.125” Dia. X 1.74” Long | 1.125” Dia. X 1.625” Long |
| Push-Rod Diameter | .475” Gel-Rod® | .475” Gel-Rod® | .400” Gel-Rod® | .400” Gel-Rod® |
| Reel Dimensions | 29” L x 16” W x 33-1/2” H | 29” L x 16” W x 33-1/2” H | 18” L x 16” W x 19” H | 18” L x 16” W x 19” H |
| Video Format | NTSC or PAL | NTSC or PAL | NTSC or PAL | NTSC or PAL |
| Recording Device | External Connection | External Connection | External Connection | External Connection |
| Power | 110v/60 Hz AC, 12 VDC | 110v/60 Hz AC, 12 VDC | 110v/60 Hz AC, 12 VDC | 110v/60 Hz AC, 12 VDC |
| Operating Temperature | 14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 125 Ft (1500 IN) |
| Shaft Diameter | 1.375 IN (0.025 M) |
| Screen Size | 7 IN |
| Screen Type | LCD |
| Video Output Format | NTSC, PAL |
