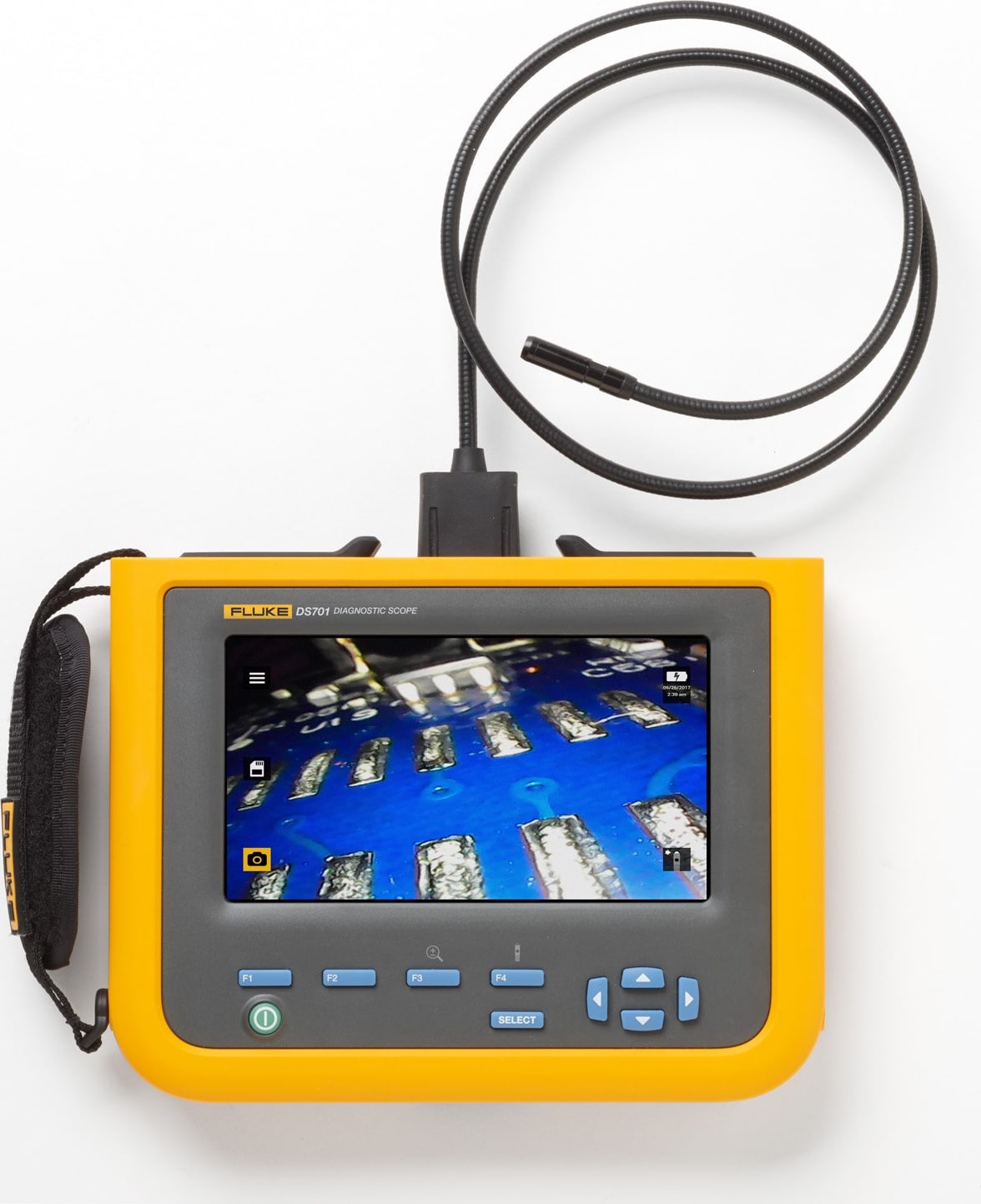

Fluke DS701 – Diagnostic Videoscope
- Industrial 800 x 600 resolution
- Standard Video Resolution
- Dual view probe
- 7″ LCD screen
- Adjustable LED lighting
The benefits of a videoscope are well known. But Industrial inspections require a powerful diagnostic videoscope designed to stand up to the dirtiest, most harsh environments.
Fluke Diagnostic Videoscopes put high-resolution images in the palm of your hand.
- High definition probe with dual-view camera
- Processing speeds that render a smooth, clear, consistent image
- 7″ LCD screen for easy viewing
- Macro to micro zoom function
- Adjustable lighting to capture the best image
- Standard Video Resolution
Applications
Industry
Maintenance manager
- Corrosion in rotors and stators
- Equipment part N°
- Cable pulley/pulley slots condition
- Liquid channel inspection
- Material integrity
Assets:
- Pumps
- Motors Gear boxes
- Compressors
- Turbines
Heavy duty
Industrial maintenance team
- Clogged pipelines
- Cracked industrial fluid lines
- Condition of large waste lines
- Ventilation ducting
Assets:
- Sewer lines
- Industrial pipelines
- Off shore structural components
- Industrial HVAC systems
Production
Mechanical maintenance teams
- Quality of finished goods
- Inspect bearing surface and lubrication
- Gear helix inspection
Assets:
- Factory MIA goods
- Conveyors
- Roller bearings
- Production line rotating machinery
- Gear boxes
Aviation
Aircraft maintenance technician
- Inspect blades for chips or cracks
- Engine hot section contamination
- Foreign/loosened micro parts
- Leakage from lubrication lines
Assets:
- Engine sections
- Airframes
- Flaps
- Turbines
- Hydraulic lines
- HP sections
Automotive
Quality assurance manager
- Quality/reliability testing of casting goods
- Piston dome/cylinder/valve condition
- Inspect for crack, chips and contamination in HP chambers
Assets:
- Casting goods
- Combustion chambers
- Engines
Preventive maintenance simplified. Rework eliminated.
Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect system.
- Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Access baseline, historical and current measurements by asset
The Fluke DS703 FC is part of a growing system of connected test tools and equipment maintenance software.
Manufacturer Specs
| General Specifications | ||
| DS701 | DS703 FC | |
| Videoscope probe | ||
| Length | 1.2 meter (3.94 feet) | |
| Type | Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth | |
| Diameter | 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available | |
| Material | Elastomer coated steel | |
| Lighting | Adjustable LED, one front, one side | |
| Illumination | 53 Lux | |
| UpisUp™ technology | Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only | |
| Camera | Dual view camera, forward and side | |
| Resolution | 800 x 600 (480,000 pixels) | 1200 x 720 (864,000 pixels) |
| Still image format | JPG | |
| Video recording format | AVI | |
| Video output format | MPEG compression | |
| Digital zoom | Adjustable from 1x to 8x zoom | |
| Field of view | 68° | |
| Depth of field | 25 mm to infinity | |
| Video resolution | Standard | 720p |
| Minimum focus distance | 10 mm | |
| Focus type | Fixed | |
| Rotation | 180° | |
| Streaming video | Via HDMI and Fluke Connect™ | |
| LCD screen | ||
| Touch screen | Capacitive touch screen | |
| Size | 7 inch (17.79 cm) | |
| Refresh rate | 30 hz | |
| UpisUp™ technology | Real-time upright adjustment for image | |
| LED backlight | Adjust display brightness for optimal viewing | |
| Communication | ||
| Wireless interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) | |
| Data transfer | USB | USB and micro HDMI cable |
| Fluke Connect™ | Save and share images directly from the diagnostic scope. Attach images or video to an asset record or work order. |
|
| Instant upload to the cloud | Yes, with Fluke Connect™ | |
| General Features | ||
| Color palettes | Visible light, grayscale or inverted | |
| Internal memory | 6 GB | |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button | |
| Carrying case | Protective EVA case | |
| Strap | Hand strap | Hand strap and neck strap |
| Power adapter | AC adapter/battery charger input | |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery | |
| Battery life | 3 hours at 50 % LED brightness | |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) | |
| Weight | 1.95 lbs (0.88 Kg) | |
| IP Rating | ||
| Tablet | IP56, dust protected and protected against water projected from a nozzle | |
| Probe | IP68, dust tight and immersion of 1 meter or more depth | |
| Drop test | 2 meter (6.56 feet) | |
| Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) | |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) | |
| Operating humidity | 90 % at 35 °C (95 °F) 75 % at 40 °C (104 °F) 45 % at 50 °C (122 °F) |
|
| Warranty | 2 years | |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 3.94 Ft (47.28 IN) |
| Shaft Diameter | 8.5 MM (0.0085 M) |
| Screen Size | 7 IN |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Resolution (Boroscopes) | Standard |
| Image Resolution | 800×600 |
| Digital Zoom X | 8 |
| Video Output Format | NTSC |
| IP Rating | IP56, IP68 |
Test Equipment General Attributes |
|
| Unique Features | Dual view camera, forward and side Digital zoom: Adjustable from 1x to 8x zoom Camera probe is detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth (other lengths available) Minimum focus distance: 10 mm Adjustable LED. Illumination 53 Lux |
| Warranty | 2 YEARS |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Weight | 2 LBS |
| Product Height | 4.00 IN |
| Product Length | 13.00 IN |
| Product Width | 16.00 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 8528.61.0000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | United States |
| Shipping Height | 4.00 IN |
| Shipping Length | 13.00 IN |
| Shipping Width | 16.00 IN |
