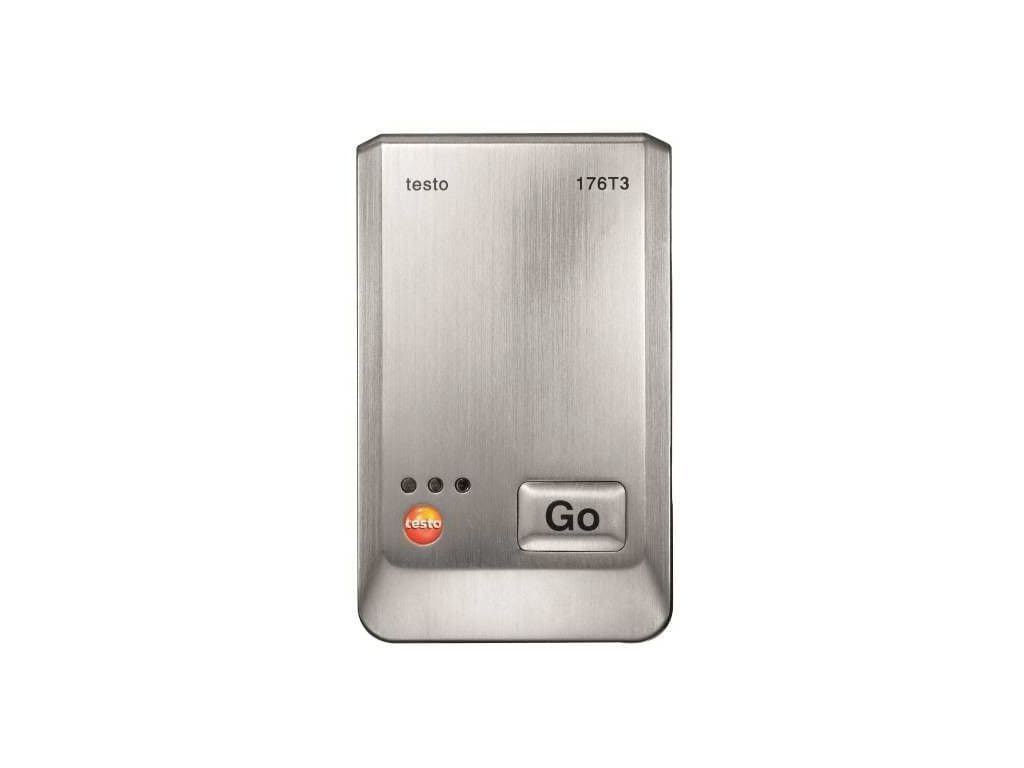

Testo 176 T3 – Four Channel Temperature Datalogger (Part Number 0572 1763)
- Requires a sensor to be connected to start up
- Rugged metal housing protects against impact, dirt, and moisture
- Capable of storing up to 2,000,000 temperature readings
- Rugged and waterproof according to IP54
The Testo 176T3 temperature data logger with rugged metal housing makes it ideal for monitoring temperatures. The 176T3 temperature measurement logger features external thermocouple parallel connections, which allow for simultaneous measurements using a wide variety of probes. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
Checking the flow and return temperature of heating systems
The heating period starts in autumn and with it the time for tenants to complain that the apartment cannot be heated to the extent they want as well. Using flexible external pipe wrap probes, you can for instance check the flow and return temperature of individual heaters in a targeted way, so as to identify causes and remedy them.
Manufacturer Specs
| Specifications | |
| Temperature – Type K TC | |
| Measuring range | -319° to 1832 °F / -195 to +1000 °C |
| Accuracy | ±1 % of mv (-319° to -148.2 °F) / ±1 % of mv (-195 to -100.1 °C) ±0.5 °F (-148° to 158 °F) / ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (158° to 1832 °F) / ±0.5 % of mv (+70.1 to +1000 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – TC Type T (Cu-CuNi) | |
| Measuring range | -328° to 752 °F / -200 to +400 °C |
| Accuracy | ±1 % of mv (-328° to -148.2 °F) / ±1 % of mv (-200 to -100.1 °C) ±0.5 °F (-148° to 158 °F) / ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (158.2° to 752 °F) / ±0.5 % of mv (+70.1 to +400 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – Type J TC | |
| Measuring range | -148° to 1382 °F / -100 to +750 °C |
| Accuracy | ±1 °F (-148° to 158 °F) / ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (158.2° to 1382 °F) / ±0.5 % of mv (+70.1 to +750 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| General technical data | |
| Dimensions | 4 x 2 x 1 in. / 103 x 63 x 33 mm |
| Operating temperature | -4° to 158 °F / -20 to +70 °C |
| Protection class | IP65 |
| Channels | 4 external |
| Battery type | 1 x Lithium (TL-5903) |
| Battery life | 8 years at 15 min. meas. rate |
| Memory | 2,000,000 measuring values |
| Storage temperature | -40° to 185 °F / -40 to +85 °C |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 1832 F (1000 C) |
| Min Temperature | -328 F |
| Battery Life | 8 YEARS (70080 HR) |
| Input Source | External Probe |
| # Data Points | 2000000000 |
| # Inputs/Channels | 4 |
| SAMPLE RATE/Intervals | 1 sec – 24 hour |
| Accuracy | +/-1% of reading (-328 to 212 F) +/-0.5 (-148 to 158 F) +/-0.5% of reading (158 to 1832 F) |
| LCD Screen | Yes |
| Software Included | No |
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
| Type | J, K, T |
Test Equipment General Attributes |
|
| Unique Features | Parallel temperature measurement at up to four measurement sites using thermocouple probes,Rugged metal housing protects the logger against impact,dirt and moisture |
| Warranty | 2 YEARS |
| Warranty Details | 2 years from date of purchase |
| Storage | SD Card |
| IP Rating | IP54 |
| Product Weight | 4 LBS |
| Product Height | 1.3 IN |
| Product Length | 4.0 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 6 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 90251920000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.3 IN |
| Shipping Length | 6.0 IN |
| Shipping Width | 4.5 IN |
