Descripción

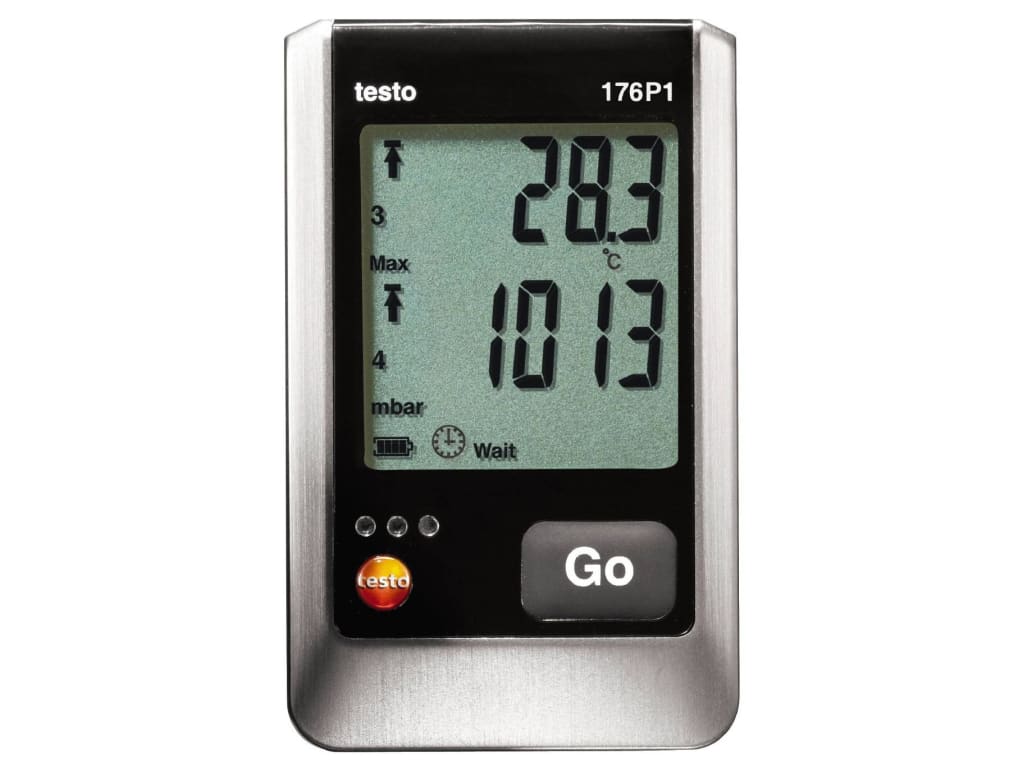

Testo 176P1 – Five Channel Pressure, Temperature and RH Data Logger (Part Number 0572 1767)
- Large, easy to read, backlit display
- Large data memory capable of storing 2,000,000 measurements
- Data transfer possible using the USB port, or SD card (optional)
- IP54 protection class
The Testo 176P1 pressure, temperature, and humidity measurement logger has a large display that makes it easy to read. The 176P1 is an ideal pressure, temperature, and RH data logger for the highly accurate and secure documentation of conditions in a laboratory, enviro chamber, clean room, or hospital control area. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
Monitoring and documentation of laboratory conditions
The ambient conditions for research projects must frequently be documented in laboratories to check external influencing factors. In addition to recording temperature and humidity, this also includes checking the absolute pressure.
There are major requirements in terms of reliability, along with tamper-proofing and data security of the recording instrument, as incorrect documentation could invalidate the whole research result. There are only a few instruments which can log all three measurement parameters at the same time and also offer the required amount of data security.
Manufacturer Specs
| Specifications | |
| Temperature – NTC | |
| Measuring range | -4° to 158 °F / -20 to +70 °C |
| Accuracy | ±0.4 °F (-4° to 158 °F) / ±0.2 °C (-20 to +70 °C) ±0.7 °F (Remaining Range) / ±0.4 °C (Remaining Range) |
| Resolution | 0.1 °F / 0.1 °C |
| Humidity – Capacitive | |
| Measuring range | 0 to 100 %rH* |
| Accuracy | dependent on probe selected |
| Resolution | 0.1 %rH |
| *Not for condensing atmospheres. For continuous applications in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h) | |
| Absolute Pressure | |
| Measuring range | 9 to 16 psi / 600 to 1100 mbar |
| Accuracy | ±0.0 psi (32° to 122 °F) / ±3 mbar (0 to +50 °C) |
| Resolution | 0 psi / 1 mbar |
| General technical data | |
| Dimensions | 4 x 2 x 1 in. / 103 x 63 x 33 mm |
| Operating temperature | -4° to 158 °F / -20 to +70 °C |
| Protection class | IP54 |
| Channels | 1 internal; 4 external |
| Battery type | 1 x Lithium (TL-5903) |
| Battery life | 8 years at 15 min. meas. rate |
| Memory | 2,000,000 measuring values |
| Storage temperature | -40° to 185 °F / -40 to +85 °C |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 158 F (70 C) |
| Min Temperature | -4 F |
| Type | Other |
| Battery Life | 8 YEARS (70080 HR) |
| Input Source | External Probe |
| # Data Points | 2000000000 |
| # Inputs/Channels | 5 |
| SAMPLE RATE/Intervals | 1 sec to 24 hours |
| Accuracy | +/-0.4 degrees F (-4 to 158) +/-0.7 (remaining measuring range) +/-3 mbar (32 to 112 degrees F) |
| LCD Screen | Yes |
| Software Included | No |
| RH | 100 % |
| Dew Point | Yes |
Test Equipment General Attributes |
|
| Unique Features | Highly accurate and secure documentation of ambient conditions in a laboratory,enviro chamber,clean room,hospital control areas,etc. Internal absolute pressure sensor and connection possibilities for two |
| Warranty | 2 YEARS |
| Warranty Details | 2 years from date of purchase |
| Storage | SD Card |
| IP Rating | IP54 |
| Product Weight | 3 LBS |
| Product Height | 1.3 IN |
| Product Length | 4.0 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 5 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 90258040890 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.3 IN |
| Shipping Length | 6.0 IN |
| Shipping Width | 4.5 IN |
