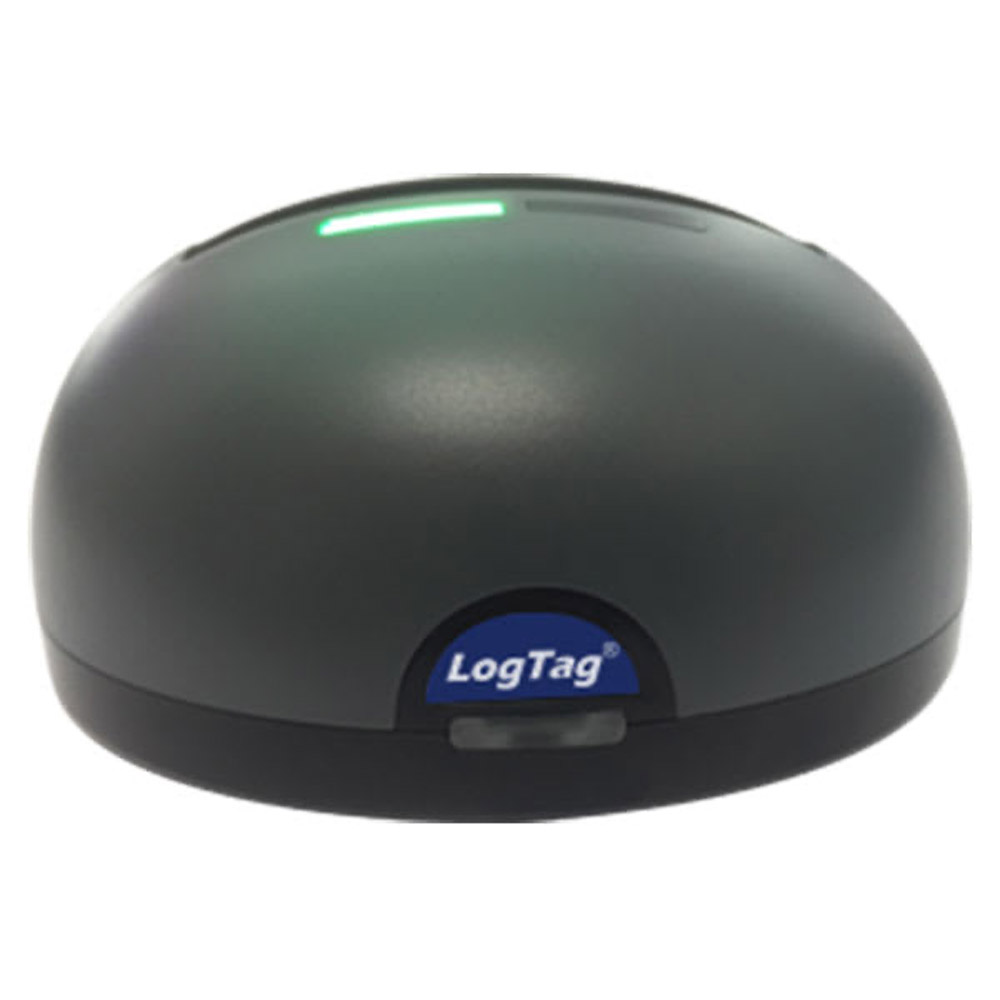

LogTag LTI-Wifi – Desktop WiFi Interface Cradle
- Connects to LogTag Online, a cloud server solution for viewing, analyzing and storing data
- Buffers up to 48 full memory logger downloads during loss of network connectivity
- Downloaded data is fully encrypted and automatically uploaded to a secure LogTag cloud server
- Easily set up to work with your WiFi network
- Uploaded data is immediately available for viewing in LogTag Online
The new wireless interface LTI-WiFi is a high-speed 802.11/b/g/n compatible device that connects to your WiFi network and can establish a connection to external server software via the TCP/IP protocol.
The LTI-WiFi uses interface drivers that are built into all currently supported Windows OS versions, so there is no longer any need to install proprietary drivers.
The LTI-WiFi is compatible with all standard LogTag recording products having 3 silver contact pins in the lower rear case.
The LTI-WiFi uses the proven and reliable spring contact arrangement taken from the LTI/USB. The LTI-WiFi incorporates a micro USB socket for connection to a computer.
Two indicators at the top (red & green) and the network LED (blue), identify what actions the interface is currently performing.
Attaching the LTI-WiFi to a power bank creates a portable data access point that will work anywhere with WiFi coverage.
With WiFi access disabled, the LTI-WiFi can be connected to a computer and used as a conventional (LTI-HID) interface.
Manufacturer Specs
| Product Model | LTI-WiFi |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -40°C to +70°C |
| USB Standard | 2.0 |
| Logger Buffer | Up to 48 Logger downloads can be buffered |
| Wireless Standard | 2.4GHz 802.11 b/g/n. High sensitivity internal antenna. |
| Network Security | WPA/WPA2-PSK |
| Environmental | IP50 (Rated for inside use only) |
| Software Capability | LTA 2.9r2, LTA 3.0r8, LTX 1.1r1, LogTag Online |
| Indicators | Green ‘Activity’ LED. Red ‘Busy/Error’ LED. Blue/Red dual colour ‘Network Activity’ LED |
| Power Source | 5V/5W (Computer, power bank or USB wall charger) |
| Size | 45mm(H) x 85mm(W) x 71mm(D), excluding cable |
| Weight | 74g, excluding cable |
| Case Material | Polycarbonate, ABS |
| Connection | USB Micro |
| Range (Clear line of sight) | 40m |
| Accessories | 2.0m USB Cable |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Product Weight | 0.165347 LBS |
| Product Height | 1.77165 IN |
| Product Length | 3.34646 IN |
| Product Width | 2.79528 IN |
| Shipping Weight | 0.1876 LBS |
