Descripción
Records up to 16,000 readings for each parameter

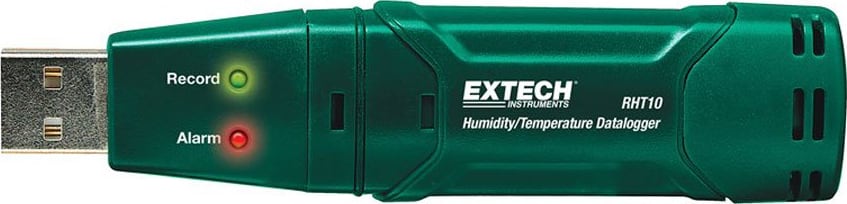

This datalogger measures and stores up to 16,000 relative humidity and 16,000 temperature readings over 0 to 100%RH and -40 to +70°C (-40 to +158°F) measurement ranges. The user can easily configure the logging rate, high/low alarm and start-mode, and download the stored data by plugging the module into a PC’s USB port and running the supplied PC software. Relative Humidity, Temperature and Dew Point data can then be graphed, printed and exported to other applications. GPP (grains per pound) data can be viewed using the optional RHT10-SW software. The data logger is supplied with a long-life lithium battery, which can typically allow logging for one year. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
Manufacturer Specs
| Temperature | -40 to 158°F |
| Humidity | 0 to 100%, ±3%RH |
| Datalogging interval | 1 second to 24 hours |
| Memory | Temperature- 16,000 points; Relative Humidity- 16,000 points |
| Dimensions | 5.1 x 1.1 x 0.98″ (130 x 30 x 25mm) |
| Weight | 1oz (20g) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 158 F (70 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Input Source | Internal Probe |
| Accuracy | ±1.8°F (14 to 104°F) ±3.6°F (-40 to +14 and 104 to 158°F) ±3%RH |
| LCD Screen | No |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Product Height | 1.50 IN |
| Product Length | 7.70 IN |
| Product Width | 4.60 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.19.8080 |
| ECCN Number | EAR99 |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 1.50 IN |
| Shipping Length | 7.70 IN |
| Shipping Width | 4.60 IN |
