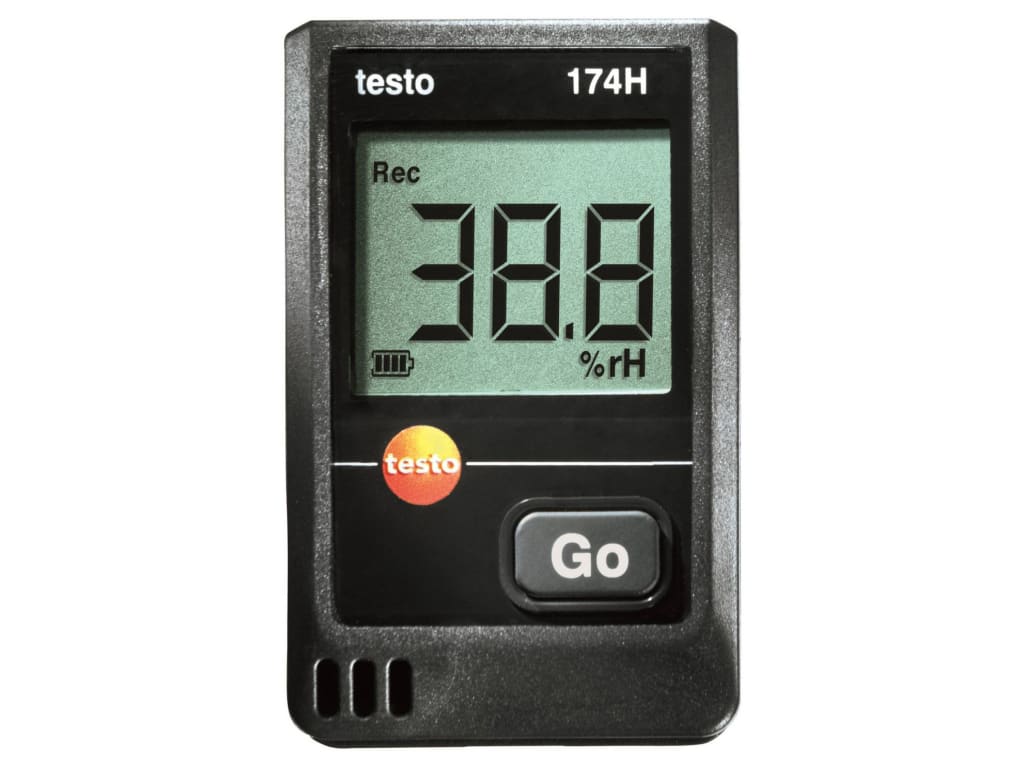

Testo 174H – Mini Temperature and Humidity Data Logger (Part Number 0572 6560)
- Temperature and humidity data logger
- Large easy to read display
- Clear indications of when humidity and temperature thresholds have been exceeded
- Requires USB interface for programming and data transfer (0572 0500) or select starter kit with interface included
The testo 174H mini temperature and humidity data logger features a large display and alarm indication that makes it capable of monitoring air temperature and relative humidity levels at all times. This temperature and RH measurement logger is long lasting for continuous use and is highly accurate. The 174H temperature and humidity data logger has free software available as a download for easy analysis.
**Requires USB interface for programming and data transfer (0572 0500) or select starter kit with interface included**
Features include:
- High accuracy NTC thermistor sensor for reliable measurement data of temperature and humidity
- Easy to read large display that shows current reading and exceeded measurement limits
- IP65 protection class
- HACCP compliant
Monitoring and documentation of building climate
Temperature and relative humidity are crucial factors when it comes to assessing air quality and comfort levels in indoor areas, e.g. in workplaces. Both values can be monitored and documented over the long term using data loggers.
They are also very well suited for checking ventilation systems or for assessing any building moisture which occurs.
The use of special software means measurement configurations can be carried out individually and recorded measurement data can be both analyzed and archived.
Manufacturer Specs
| Specifications | |
| Temperature – NTC | |
| Measuring range | -20 to +70 °C |
| Accuracy | ±0.5 °C (-20 to +70 °C) |
| Resolution | 0.1 °C |
| Humidity – Capacitive | |
| Measuring range | 0 to 100 %RH* |
| Accuracy | ±3 %RH (2 to +98 %RH) ±0.03 %RH/K |
| Resolution | 0.1 %RH |
| * Not for condensing atmospheres. For continuous use in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h) | |
| General technical data | |
| Dimensions | 60 x 38 x 18.5 mm |
| Operating temperature | -20 to +70 °C |
| Protection class | IP20 |
| Channels | 2 |
| Battery type | 2 lithium batteries (CR2032) |
| Battery life | 1 year (15 min measuring cycle, +25 °C) |
| Memory | 16,000 measuring values |
| Storage temperature | -40 to +70 °C |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 70 C |
| Min Temperature | -20 C (-4 F) |
| Type | Other |
| Battery Life | 1 YEARS (8760 HR) |
| # Data Points | 16000 |
| # Inputs/Channels | 2 |
| SAMPLE RATE/Intervals | 1min to 24hours |
| Accuracy | +/-0.9 degrees f +/- 3% RH |
| LCD Screen | Yes |
| Software Included | No |
Test Equipment General Attributes |
|
| Unique Features | Economical temperature and humidity monitoring for residential,work and storage rooms,Easy readout of data , and tranfer to PC via testo usb interface desktop cradle |
| Warranty | 2 YEARS |
| Storage | SD Card |
| IP Rating | IP20 |
| Product Weight | 1 LBS |
| Product Height | 0.8 IN |
| Product Length | 2.3 IN |
| Product Width | 1.5 IN |
| Shipping Weight | 2 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 90258040890 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | CR2032 |
| Country of Origin | China |
| Shipping Height | 2.8 IN |
| Shipping Length | 4.3 IN |
| Shipping Width | 3.5 IN |
