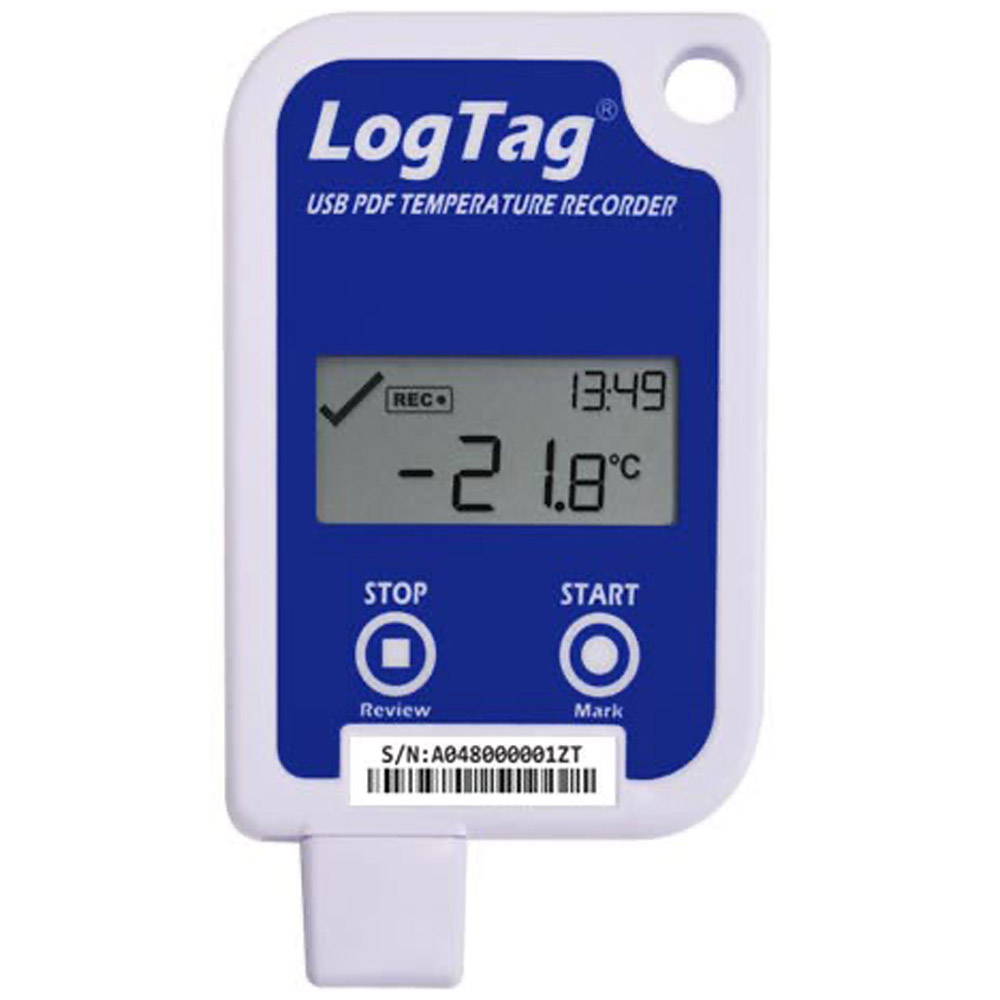

Logtag UTRED-16 Vaccine Kit
- Includes UTRED-16 external probe temperature logger, ST100k-15 external probe (65mm tip length, No Handle, 1.5m Cable), glycol buffer, NIST traceable calibration certificate
- Records temperature from -40°C to +99°C
- Up to 16,000 recordings – enough for 168 days at 15-minute logging
- Read current temperature and latest alarm conditions at a glance
- Display showing temperature and alarm status of up to six alarms
| Logtag Vaccine Kits | |
| Kit Model | Includes |
| Logtag TRED30-16 Vaccine Kit | TRED30-16R, ST100K-15 Ext probe, Glycol buffer, NIST traceable calibration certificate |
| Logtag UTRED-16 Vaccine Kit | Utred-16, ST100K-15 Ext probe, Glycol buffer, factory calibration certificate |
| Logtag UTRED30-WIFI Vaccine Kit | Utred30-WIFI, ST100K-15 Ext Probe, Glycol buffer, NIST traceable calibration certificate |
| Logtag UTREL30-16 Vaccine Kit | UTREL30-16, ST10S-15 Ext Probe, NIST traceable calibration certificate |
| Logtag UTREL30-16-WIFI Vaccine | UTREL30-16, ST10M-15 Ext Probe, Buffer Kit, NIST traceable calibration certificate |
The LogTag UTRED-16 is an affordable & reliable USB temperature recorder, measures, and stores real-time temperature readings over a measurement range of -40°C to +99°C (-40°F to 210°F).
The LogTag UTRED-16 comes with advanced temperature recorder features of a 16,000 log memory and can be used with all external probes from the ST100 range, and the extension cable. It complies with relevant international standards for temperature monitoring devices, such as FCC, CE, IC, and RCM.
Rated Absolute Accuracy
Rated Native Accuracy
Manufacturer Specs
| Product Model | UTRED-16F (Fixed Battery) |
| Sensor Measurement Range | -40°C to +99°C (-40°F to 210°F) |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F) |
| Rated Temperature Reading Resolution | Better than 0.1°C (0.2°F) for -30°C to +60°C (-22°F to +140°F) Better than 0.2°C (0.4°F) for -40°C to -30°C (-40°F to -22°F) Better than 0.5°C (0.9°F) for +60°C to +99°C (+140°F to +210°F) LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag® |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F) Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F) Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F) Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F) |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 72 hours |
| Recording Indication | “REC” symbol on LCD |
| Alarms | Three configurable upper and three configurable lower alarms. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured) |
| Environmental | IP61 (when vertically mounted or hung with USB dust-cap in place) |
| Power Source | CR2450 3V LiMnO2 (Fixed battery) |
| Battery | Life 1 year storage, 2 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 3.1.9 or higher. |
| PDF Report | One page report with trip and alarm summary. Multi-page report with list of readings, including date and time |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap |
| Weight | 39g. |
| Case Material | Polycarbonate |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 210 F (98.89 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 2 YEARS (17520 HR) |
| Input Source | External Probe |
| SAMPLE RATE/Intervals | Configurable from 30 seconds to 18 hours |
| Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). |
| LCD Screen | Yes |
| Data Output Format | |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Height | 99 MM (3.90 IN) |
| Product Length | 54.5 MM (2.15 IN) |
| Product Width | 8.6 MM (0.339 IN) |
| Shipping Weight | 39 GRAMS (0.086 LBS) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.19.8085 |
| ECCN Number | EAR99 |
| Battery Type | AA, Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
