Descripción

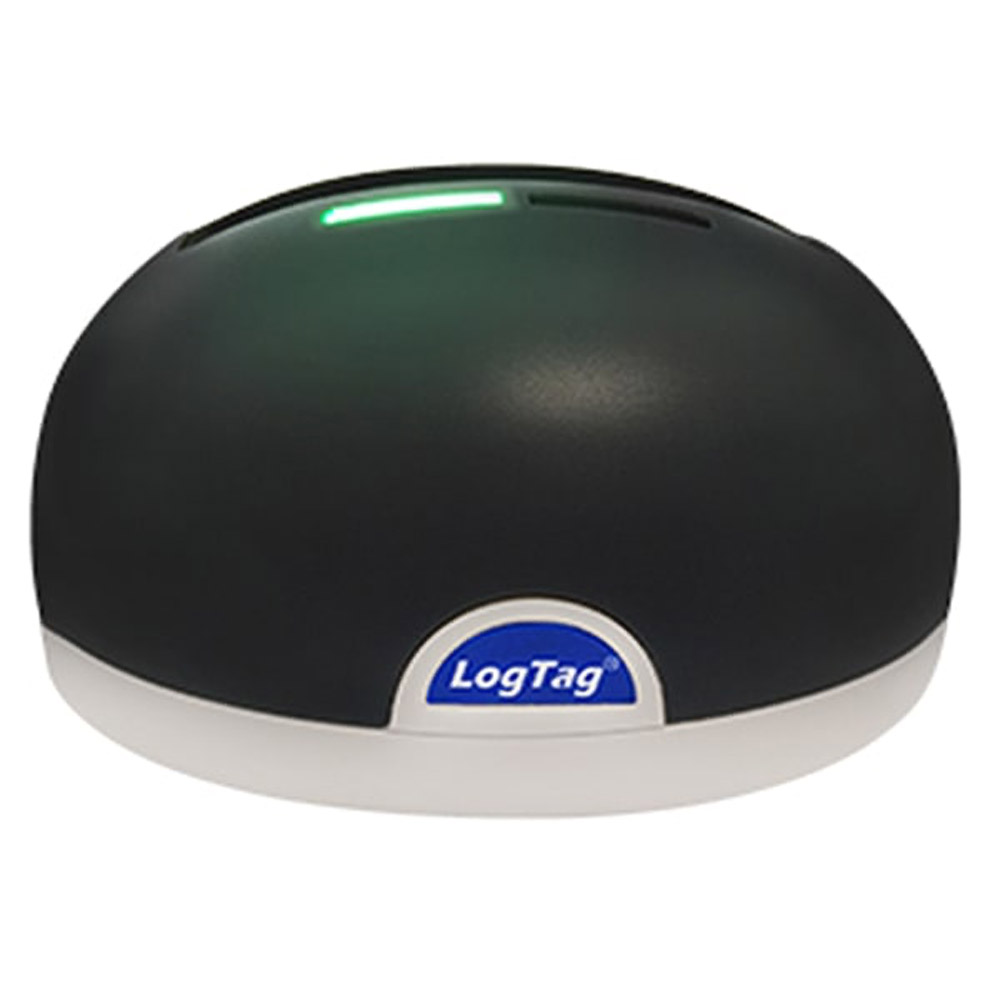

LogTag LT-INT-HID – Desktop USB Interface Cradle
- Downloads loggers from -20°C to +60°C
- No longer any need to install proprietary drivers
- Two indicators at the top (red & green), identify what actions the interface is currently performing
- Incorporates a micro USB socket for connection to a computer
The new LTI-HID desktop USB interface cradle replaces the current LTI-USB interface.
The LTI-HID uses interface drivers that are built into all currently supported Windows OS versions, so there is no longer any need to install proprietary drivers.
The LTI-HID is compatible with all standard LogTag recording products having 3 silver contact pins in the lower rear case.
The LTI-HID uses the proven and reliable spring contact arrangement taken from the LTI/USB. The LTI-HID incorporates a micro USB socket for connection to a computer.
Two indicators at the top (red & green) identify what actions the interface is currently performing.
Manufacturer Specs
| Product Model | LTI-HID |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| USB Standard | 2.0 |
| Environmental | IP50 (Rated for indoor use only) |
| Indicators | Green ‘Activity’ LED. Red ‘Busy/Error’ LED |
| Software Capability | LTA 2.9r2, LTA 3.0r8, LTX 1.1r1, LogTag Online |
| Power Source | Powered from computer |
| Connection | USB Micro |
| Size | 45mm(h) x 85mm(W) x 71mm(D,) excluding cable |
| Weight | 74g, excluding cable |
| Case Material | Polycarbonate, ABS |
| Accessories | 1.0m USB Cable |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| IP Rating | IP50 |
| Product Weight | 0.163142 LBS |
| Product Height | 1.77165 IN |
| Product Length | 3.34646 IN |
| Product Width | 2.79528 IN |
| HTS/Schedule B Number | 9025.80.1000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Width | 0.1876 IN |
