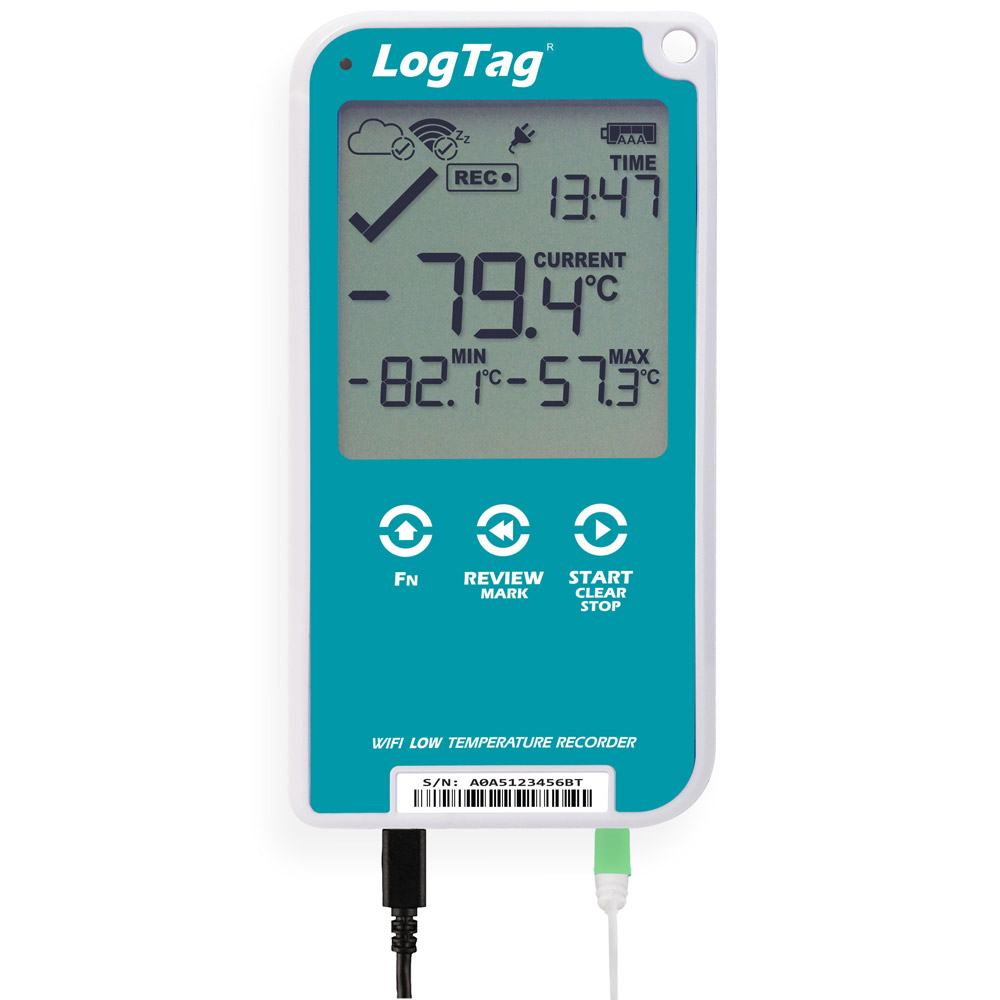

Logtag UTREL30-WiFi – 30 Day WiFi Low Temperature Logger with Display
- Real-time data automatically uploaded via WiFi to the LogTag Online cloud
- Read current temperature and latest Min-Max temperature at a glance
- Audible alarm and flashing red LED signals a temperature alarm
- Can be powered by 2x AAA batteries (user replaceable) if not external powered
- Auto-pause function suspends alarm & statistic processing when the external sensor is unplugged
The LogTag UTREL30-WiFi temperature data logger automatically uploads real-time temperature data to your LogTag Online cloud account via your existing wireless network.
It features a large, easy-to-read display, along with many familiar attributes known from the LogTag family of data loggers.
These include non-volatile memory for up to 16,129 temperature readings and a statistical memory, storing maximum and minimum reading as well as alarm duration for each of the last 30 days.
Manufacturer Specs
| Product Model | UTREL30-WiFi. |
| External Sensor Measurement Range | -90°C to +40°C (-130°F to +210°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -80°C to 10°C (-112°F to 50°F). 0.2°C (0.4°F) for measurements 10°C to 20°C (50°F to 68°F) and -90°C to -80°C (-130°F to -112°F). 0.3°C (0.5°F) for measurements 20°C to 30°C (68°F to 86°F). 0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |

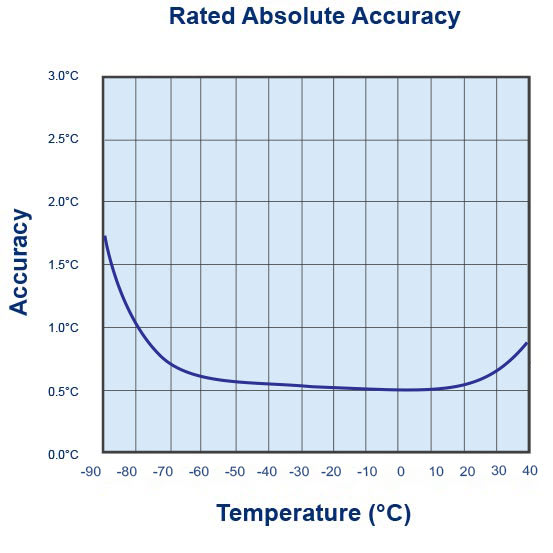

| Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +10°C (-4°F to 50°F) Better than ±0.7°C for -50°C to -20°C (-58°F to -4°F) and +10°C to +30°C (50°F to 86°F) Better than ±1°C for -80°C to -50°C (-112°F to -58°F ) and +30°C to +40°C (86°F to 104°F) Better than ±1.8°C for -90°C to -80°C (-130°F to -112°F) |
| Recording Capacity | 16,129 temperature readings. 67 days at 6 minute logging. Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Download Time | Typically with full memory (16,129 readings) in less than 10 seconds. |
| Environmental | IP51 (when vertically mounted or hung). |
| Power Source | 5V via micro USB socket or, 2 X 1.5V AAA alkaline batteries. CR2032 LiMnO2 coin cell (backup logging function only). |
| Battery Life | AAA battery up to 2 months. |
| Connection Interface | USB 2.0 / Micro USB plug. |
| WiFi | IEEE 802.11 b/g/n (2.4Ghz) WPA/WPA2 security. |
| Size | 141mm(H) x 72mm(W) x 18mm(T). |
| Weight | 158g with AAA batteries, (134g – excluding probe and AAA batteries). |
| Case Material | Polycarbonate. |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 140 F (60 C) |
| Min Temperature | -22 F |
| Power Source | Battery |
| Battery Life | 2 MONTHS (1460 HR) |
| Input Source | External Probe |
| SAMPLE RATE/Intervals | 30 seconds to 18 hours |
| Accuracy | 0.1°C (0.2°F) for measurements -80°C to 10°C (-112°F to 50°F). 0.2°C (0.4°F) for measurements 10°C to 20°C (50°F to 68°F) and -90°C to -80°C (-130°F to -112°F). 0.3°C (0.5°F) for measurements 20°C to 30°C (68°F to 86°F). 0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F). Please see the Rated Native Resolution chart below. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| LCD Screen | Yes |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Storage | Internal Memory |
| IP Rating | IP51 |
| Product Weight | 0.2954 LBS |
| Product Height | 5.5512 IN |
| Product Length | 0.7087 IN |
| Product Width | 2.835 IN |
| Shipping Weight | 0.3397 LBS |
| Data Logging | Yes |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
