Description

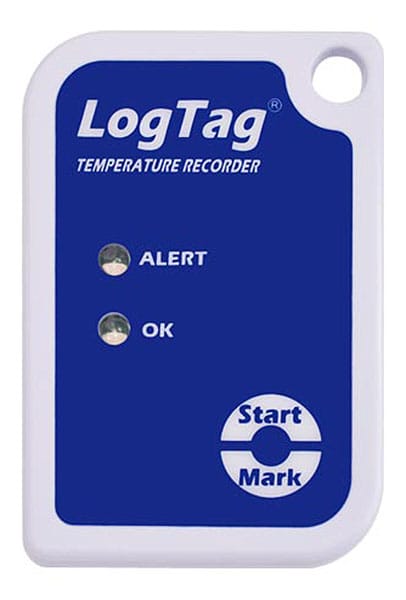

LogTag SRIC-4 – Single-Use Temperature Logger
- Records temperature from -30°C to +60°C (-22°F to +140°F)
- A real time clock provides date/ time stamps for each temperature reading
- Fixed battery provides 20 months storage, followed by 90 days normal use
- Comprehensive customization options including alert settings, sample interval and trip duration
- Up to 4,000 recordings – enough for 13 days at 5-minute logging or 82 days at 30-minute logging
Requires LT-INT-HID or LTI-Wifi Cradle (not included) to connect to a computer to read/program the logger.
The LogTag SRIC-4 is a single-trip temperature logger developed specifically for monitoring temperature sensitive products in both short haul and long-distance transportation applications. The SRIC-4 combines all the features of an advanced temperature logger with a 3968 log memory and a 6-month operating life in a robust and inexpensive package.
When used in conjunction with the standard LogTag Interface Cradle and the freely available LogTag®Analyzer operating software, the SRIC-4 can be easily configured by the user for a wide range of recording and alert conditions. Readings are downloaded using LogTag Analyzer which provides facilities for displaying data in a chart, table or statistical formats and allows electronic archiving, export or transmission of the data in support of sophisticated data management systems.
Red Alert indicator provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured. Green OK indicator provides immediate visual confirmation, without access to a PC, that the unit is operating. Enclosed in a robust and durable polycarbonate case, the SRIC-4 features a real time clock, which provides date/time stamps for each temperature reading.
Manufacturer Specs
| Product Model | SRIC-4. |
| Sensor Measurement Range | -30°C to +60°C (-22°F to +140°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |

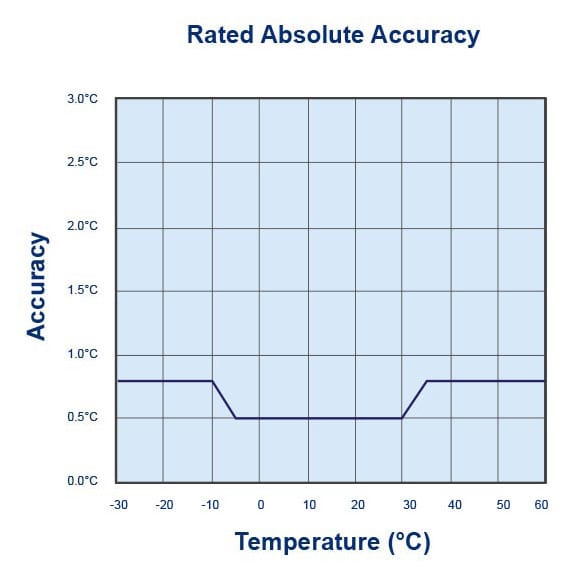

| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -5°C to +30°C (23°F to 86°F). ±0.8°C (±1.5°F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |

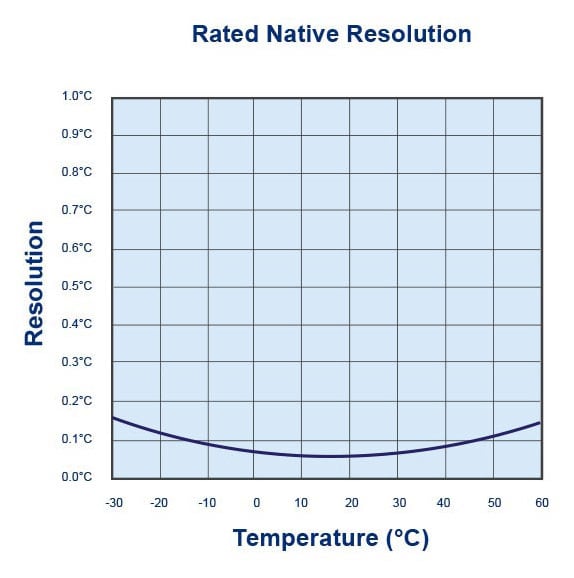

| Rated Temperature Reading Resolution | Less than 0.1°C/F. Please see the Rated Native Resolution chart below. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s). |
| Recording Capacity | 3968 temperature readings. 13 days @ 5min logging, 41 days @ 15min logging. |
| Sampling Interval | Configurable from 1 minute to 18 hours. |
| Logging Start Options | Push button start or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically less than 4 seconds for full memory (3968 readings), depending on computer or readout device used. |
| Alarms | 1 configurable upper and 1 configurable lower alarms. |
| Environmental | IP65 (roughly equivalent to NEMA 4). |
| Power Source | CR2032 3V LiMnO2 Battery (Fixed). |
| Battery Life | 20 months storage, followed by 90 days normal use. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Size | 77mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 28g. |
| Case Material | Polycarbonate. |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 140 F (60 C) |
| Min Temperature | -22 F |
| Power Source | Battery |
| Battery Life | 90 DAYS (2160 HR) |
| Input Source | Internal Probe |
| SAMPLE RATE/Intervals | 1 minute to 18 hours |
| Accuracy | Better than ±0.5°C (±0.9°F) for -5°C to +30°C (23°F to 86°F). ±0.8°C (±1.5°F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |
| LCD Screen | No |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Storage | Internal Memory |
| IP Rating | IP65 |
| Product Weight | 0.06173 LBS |
| Product Height | 3.0315 IN |
| Product Length | 0.338583 IN |
| Product Width | 2.145669 IN |
| Shipping Weight | 0.071 LBS |
| Data Logging | Yes |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
