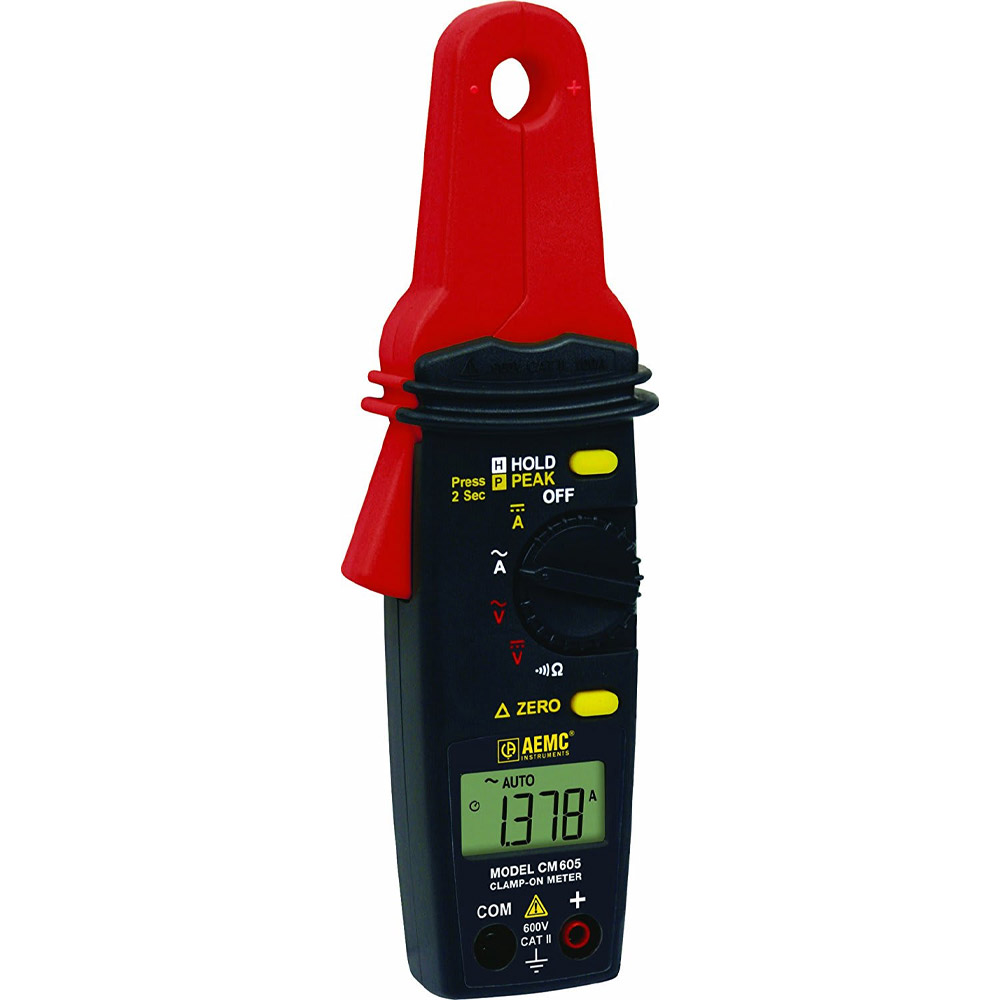

AEMC CM605
- 10,000-count LCD Display – Excellent Resolution
- 100AAC/DC Ammeter with low 10A Range (1mA Resolution)
- Tapered Jaws for crowded wiring or areas (Ø .45″ – 12mm Jaw Opening)
- 600VAC/DC Voltmeter
- Analog Output in AAC/DC
Clamp-on Meter (100AAC/DC, Low Current)
The Model CM605 is a versatile device that is capable of measuring both AC/DC voltage (up to 600V) and AC/DC current up to 100 Amps. It can also measure resistance up to 10kΩ and includes a continuity buzzer to assist in circuit verification.
The Multifunction Clamp-on Meter Model CM605 is a good choice for both process and general industrial applications. It can detect milliamp process signals, as well as the higher currents up to 100A associated with general industrial monitoring and troubleshooting.
For operator convenience, the Model CM605 can also hold the last reading in the display and capture the peak value at the time of the measurement.
Applications:
- Process loop monitoring
- Automotive electrical troubleshooting
- Industrial plant maintenance
- General AC and DC voltage and current monitoring
- Continuity checking
Manufacturer Specs
| MODEL | CM605 |
| ELECTRICAL | |
| AC Current | |
| Measurement Ranges | 2 Ranges: 10A, 100A |
| Accuracy & Resolution | 10A: 2.0% ± 10cts – 1mA Resolution 10A: 2.0% ± 10cts – 1mA Resolution > 80A: 3.5% ± 10cts – 10mA Resolution |
| Frequency Range | 2 Ranges: 50 to 500Hz |
| DC Current | |
| Measurement Ranges | 2 Ranges: 10A, 100A |
| Accuracy & Resolution | 10A: 2.5% ± 10cts – 1mA Resolution 80A: 2.5% ± 10cts – 10mA Resolution > 80A: 4.5% ± 10cts – 10mA Resolution |
| AC Volts | |
| Measurement Ranges | 600Vrms |
| Accuracy & Resolution | 1.5% ± 5cts – 100mV Resolution |
| Frequency | 40 to 500Hz |
| Input Impedance | 10MΩ, < 50pF |
| DC Volts | |
| Measurement Ranges | 600V |
| Accuracy & Resolution | 1.0% ± 2cts – 100mV Resolution |
| Input Impedance | 10MΩ |
| Resistance (Ohms) | |
| Measurement Ranges | 10kΩ (9999Ω) |
| Accuracy & Resolution | 1.0% ± 3cts – 1Ω Resolution |
| Test Voltage | < 3.0VDC |
| Continuity | |
| Measurement Ranges | Buzzer < 100Ω ± 25Ω |
| Resolution | 1Ω |
| Test Voltage | < 3.0Vdc |
| Analog Output | |
| Output | 10mV/Aac & Adc through front banana jacks |
| Frequency | 0 to 20kHz @ ± 3db |
| Output Impedance | 3kΩ, < 50pF |
| Other Functions | |
| Adc Zero & Relative Function | One touch push button (ZERO Button) to Zero Adc, or other readings. Relative function also used in the other ranges to compare two measurements. |
| HOLD Function | Holds A & V measurements when pressed (HOLD button) |
| PEAK Function | Captures PEAK (1ms) V or A measurement when activated (PEAK Button) |
| Auto-Ranging | “AUTO” displayed on LCD |
| Over Range | “OL” displayed on LCD for all measurements |
| Auto-Off | Auto-Off after approx 10 minute with Over-Ride |
| Low Battery | Low Battery indication on LCD |
| MECHANICAL | |
| Jaw Opening (Window) | Ø 0.45″ (Ø 12mm) or .40 x 1.39″ (10 x 35mm) |
| Power Source | Two 1.5V AAA (LR03) batteries (included) |
| Dimensions & Weight | 7.95 x 2.76 x 1.33″ (202 x 70 x 34mm) – 6.5 oz (180g) |
| Safety Standards | IEC/EN 61010-1 and 2-032 – 600V CAT II and 300V CAT III – Pollution Degree 2 Class 2 – Double or reinforced insulation, CE mark |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 100 A |
| Maximum Current DC | 100 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 0.45 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Product Weight | 0.41 LBS |
| Product Height | 1.46 IN |
| Product Length | 7.44 IN |
| Product Width | 2.8 IN |
| Shipping Weight | 6.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
