CPS ABM-HOOD-200 – Airflow Capture Hood with Environmental Meter
- Test and balance reports – automatically generated
- Easy, accurate and affordable HVAC airflow measurement in a lightweight, compact housing
- Use smartphone and free CPS Link app to display, store and send data
- Also measures temperature, wet bulb, dew point and relative humidity (ABM-200)
- Accuracy, calibration, certification – in accordance with ANSI / AMCA standards

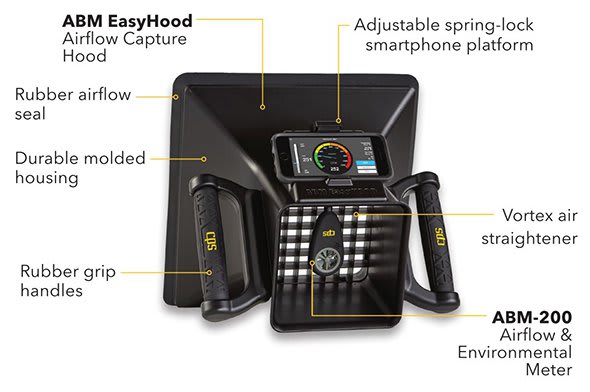

The ABM-HOOD «EasyHood» includes: ABM-200, Padded Carrying Case, Expansion Hood (for grilles up to 24″ x 24″) and a Low Airflow Adapter. Use the included ABM-200 meter with a smartphone to display, capture and record real-time airflow readings from air grilles ranging from 12″ to 24″.
The Fastest and Easiest Way to Measure Airflow!
- No more entering duct dimensions
- No more determining (or guessing) AK factors
- No more traversing the grille
The ABM Easy Hood captures air speed values from air supply or return/exhaust grilles in residential or commercial buildings, and easily converts that into an airflow volume reading. To accomplish this, the ABM Easy Hood is used with an ABM-200 Airflow and Environmental meter and a smart phone having the latest, free CPS Link app installed.
Manufacturer Specs
| ABM-HOOD | |
| Hood Opening | 12″ x 12″ (.3 m x .3 m) |
| Expansion Hood Opening | 24″ x 24″ (.6 m x .6 m) |
| Weight (with Expansion Hood) | 4.75 lb (2.15 kg) |
| Hood Size (with Expansion Hood) | 17.75″ H x 25″ W x 25″ D (.45 m x .63 m x .63 m) |
| ABM-HOOD-2OO (when used with ABM-200 meter) | |
| Wireless Connection Range | ≤ 100 ft. (30.5 m) |
| Airflow Volume Regular Test | 35 – 1,200 CFM (59 – 2,039 M3/H |
| Airflow Low Volume Test | 7 – 100 CFM (12 – 170 M3/H |
| RH Range | Range: 0 – 85% Accuracy: ±4% |
| Operating Temperature | Range: 0 ˚F to 140 ˚F (-18 ˚C to 60 ˚C) Accuracy: ±0.7% (0.4 ˚C) |
| Auto Power Off | No connection or 30 sec after closing app |
| Battery Type (3.0 V) | Inside ABM-200 (CR2450 Coin Cell, Lithium) |
| Battery Life | > 5OO hrs. |
| Calibration, Certification | Accuracy verified in accordance with ANSI AMCA 201-207 Airflow Rate Device Verification. Airflow calibration and certification tests performed at a 3rd party AMCA Certified Laboratory in accordance with ANSI / AMCA 210-ANSI / AMCA 51 tests methods |
| Warranty | 1 Year (including ABM-HOOD) |
