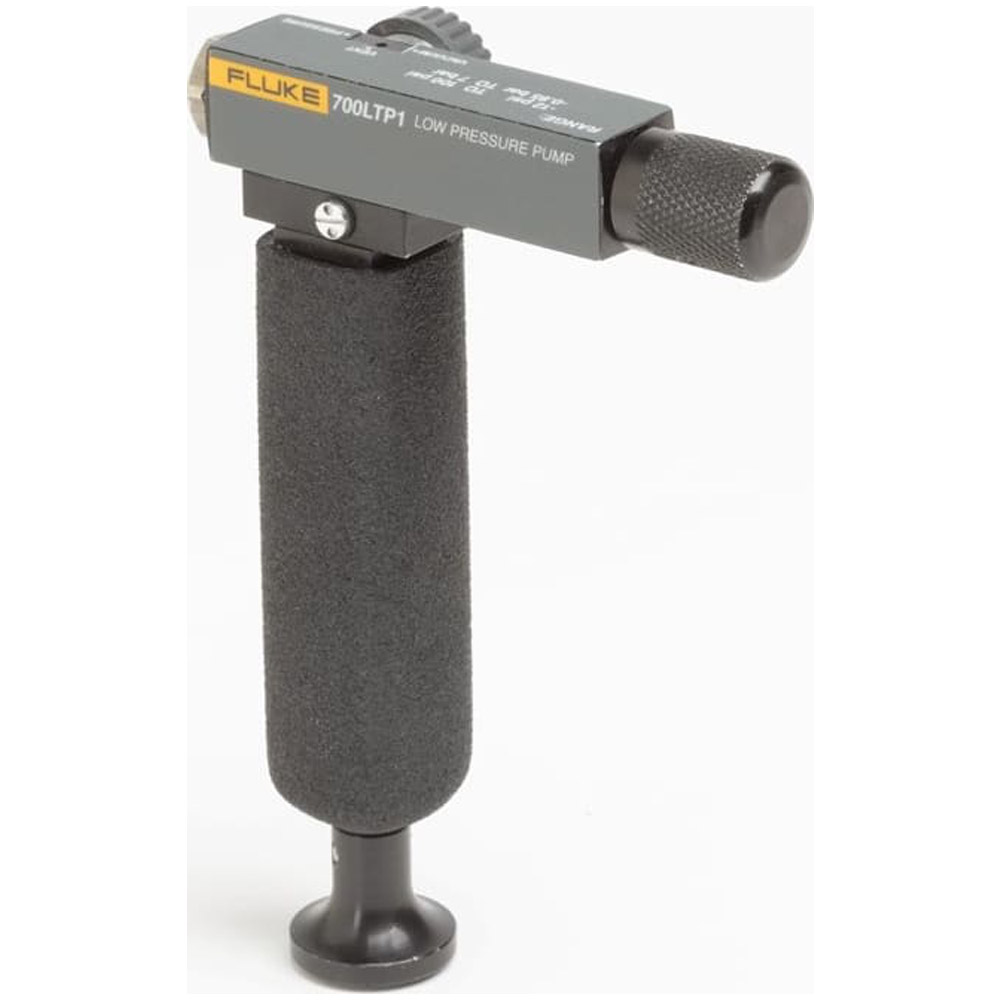

Fluke 700LTP-1 – Low-Pressure Test Pump
- Pump can be easily cleaned without disassembly
- Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate
- Slim design, easy to carry and use
The Fluke 700LTP-1 is a hand-operated pressure pump designed to generate either vacuum to -13 psi / -.90 bar or pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are terminated with 1/4-NPT female fittings that can be adapted using the BSP/ISO adapters
For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low-pressure applications requiring accurate low-pressure testing.
Manufacturer Specs
| Mechanical & General Specifications | |
| Size | length 5.9 in (150 mm), width 4 in (100 mm), depth 1.25 in (32 mm) |
| Weight | 226 grams or .5 lbs (pump only) |
| Warranty | One year |
| Material | Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 100 psi |
| Maximum Range Vacuum | -12 |
| Fluid Compatability | Air |
| Adjustable Vent Release | Yes |
| Adjustable Vacuum Release | Yes |
| Display | No |
| NIST Calibration | No |
| Kits Available | No |
Test Equipment General Attributes |
|
| Unique Features | Low-Pressure Test Pump is a portable, dual source of vacuum and pressure. Each pump incorporates a vacuum and pressure selector and fine adjustment control. |
| Warranty | 1 YEARS |
| Product Weight | 0.5 LBS |
| Product Height | 5.00 IN |
| Product Length | 5.9 IN |
| Product Width | 4 IN |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 5.00 IN |
| Shipping Length | 13.25 IN |
| Shipping Width | 10.75 IN |
