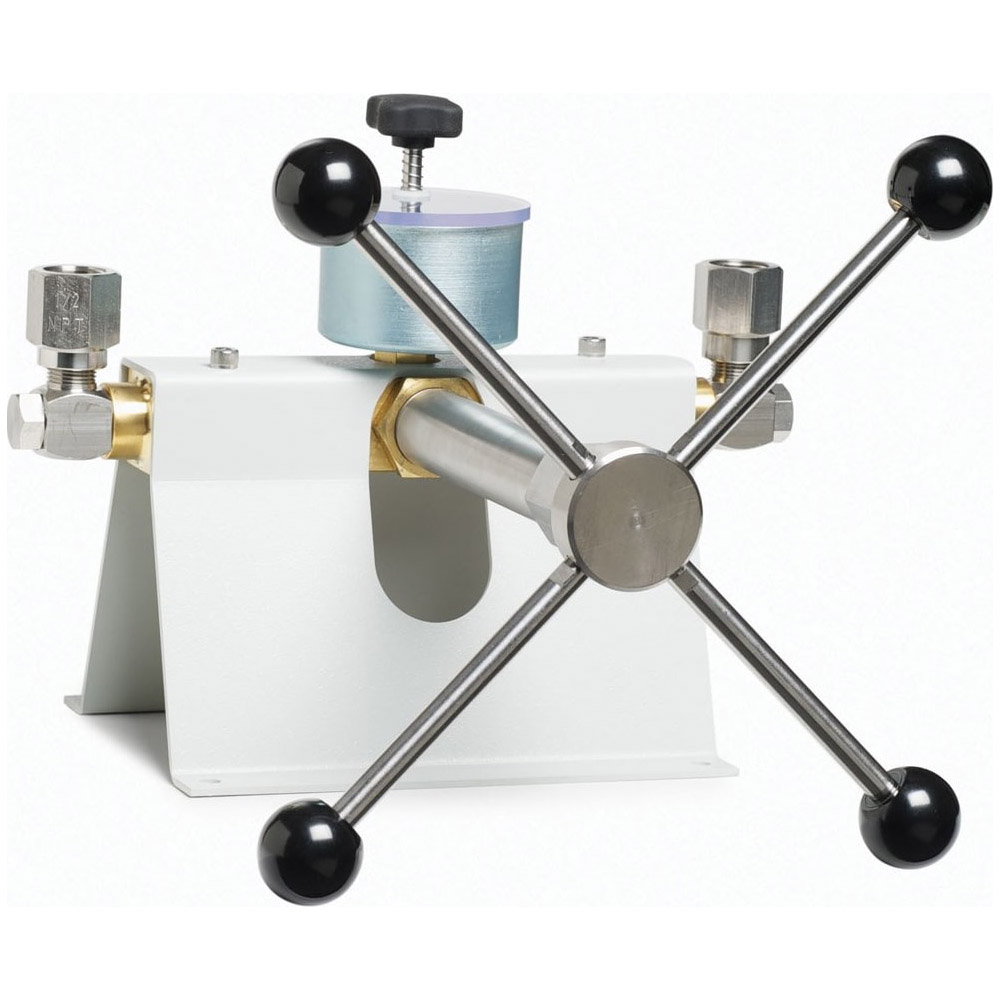

| P5514-70M Hydraulic Comparison Test Pump Viton Seals, Pressure range 0 to 10 000 psi (70 MPa) |
|
| These instruments are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These hydraulic test pumps provide a quick and easy solution for checking pressure measuring instruments to 10,000 psi (700 bar). |
Manufacturer Specs
| Model P5515-140M | Model P5514-70M | |
| Pressure range | 0 psi to 20 000 psi (1 400 bar) | 0 to 10,000 psi (700 bar) |
| Test port adapters | M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
| Weight | 16 kg (36 lb) | 5 kg (11 lb) |
| Dimensions (W x D x H) | 440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in) | 279.4 mm x 279.4 mm x 254 mm (11 in x 11 in x 10 in) |
| Reservoir volume | 150 cm 3 (9.2 in 3 ) | 75 cm 3 (4.6 in 3 ) |
| Screw press displacement | 5.5 cm 3 (0.34 in 3 ) | 20 cm 3 (1.2 in 3 ) |
| Priming Pump displacement | 4.7 cm 3 (0.29 3 in) per stroke |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Hydraulic |
| Maximum Range Pressure (Gauges) | 10000 psi |
| Fluid Compatability | Hydraulic Oil, Water |
| Display | No |
| Kits Available | No |
Test Equipment General Attributes |
|
| Product Height | 11.00 IN |
| Product Length | 14.75 IN |
| Product Width | 14.50 IN |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 11.00 IN |
| Shipping Length | 14.75 IN |
| Shipping Width | 14.50 IN |
