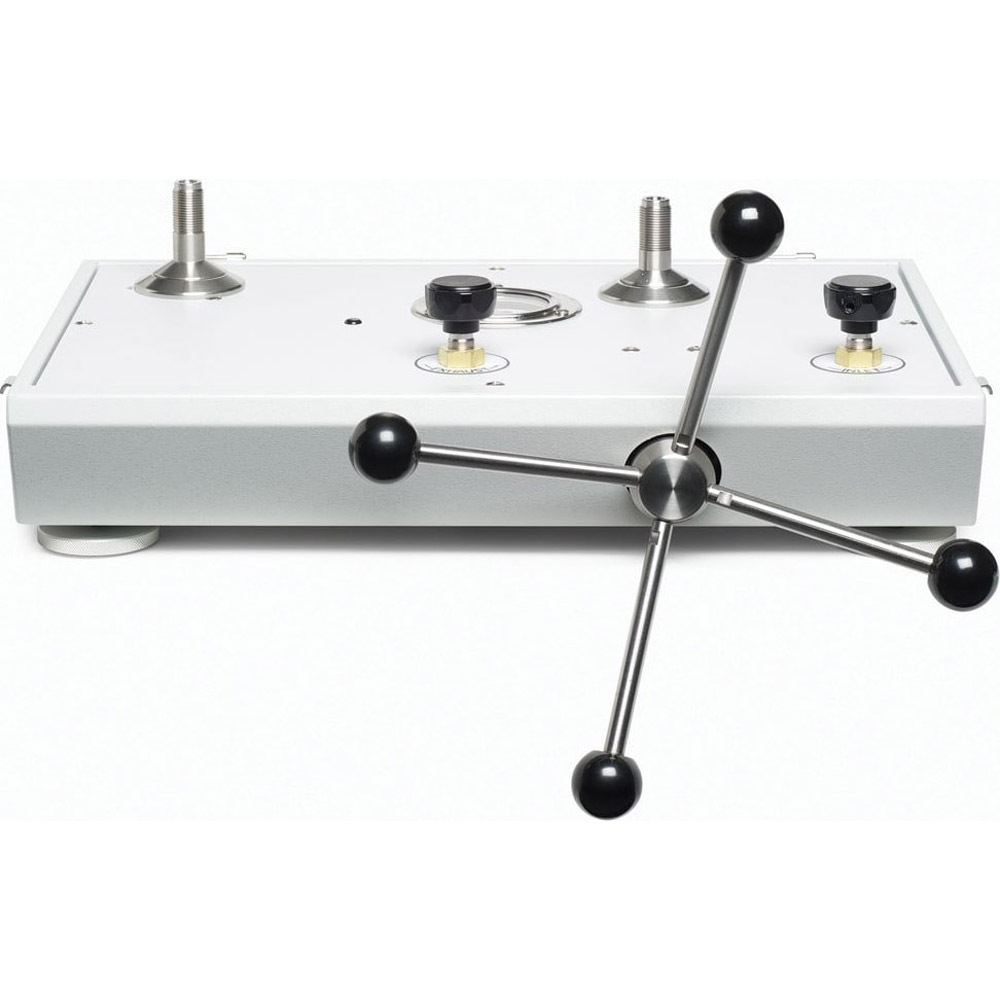

| P5513-20M Pneumatic Comparison Test Pump Pressure range 0 to 3,000 psi (210 bar) |
|
| This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers. Note: Unit requires pressure source (i.e. nitrogen bottle) for operation. |
Manufacturer Specs
| Model P5510-2M | Model P5513-20M | |
| Pressure range | 0 psi to 300 psi (20 bar) | 0 psi to 3 000 psi (210 bar) |
| Vacuum range | 0 in to 24 in Hg (800 mbar) | |
| Test port adapters | M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
| Weight | 3.5 kg (7.5 lb) | 8 kg (17 lb) |
| Dimensions (W x D x H) | 240 mm x 330 mm x 180 mm (9.5 in x 13 in x 7 in) | 440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in) |
| Gas supply connection | 1/4 NPT female |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 3000 psi |
| Fluid Compatability | Air |
Test Equipment General Attributes |
|
| ECCN Number | EAR99 |
| Country of Origin | United States |
