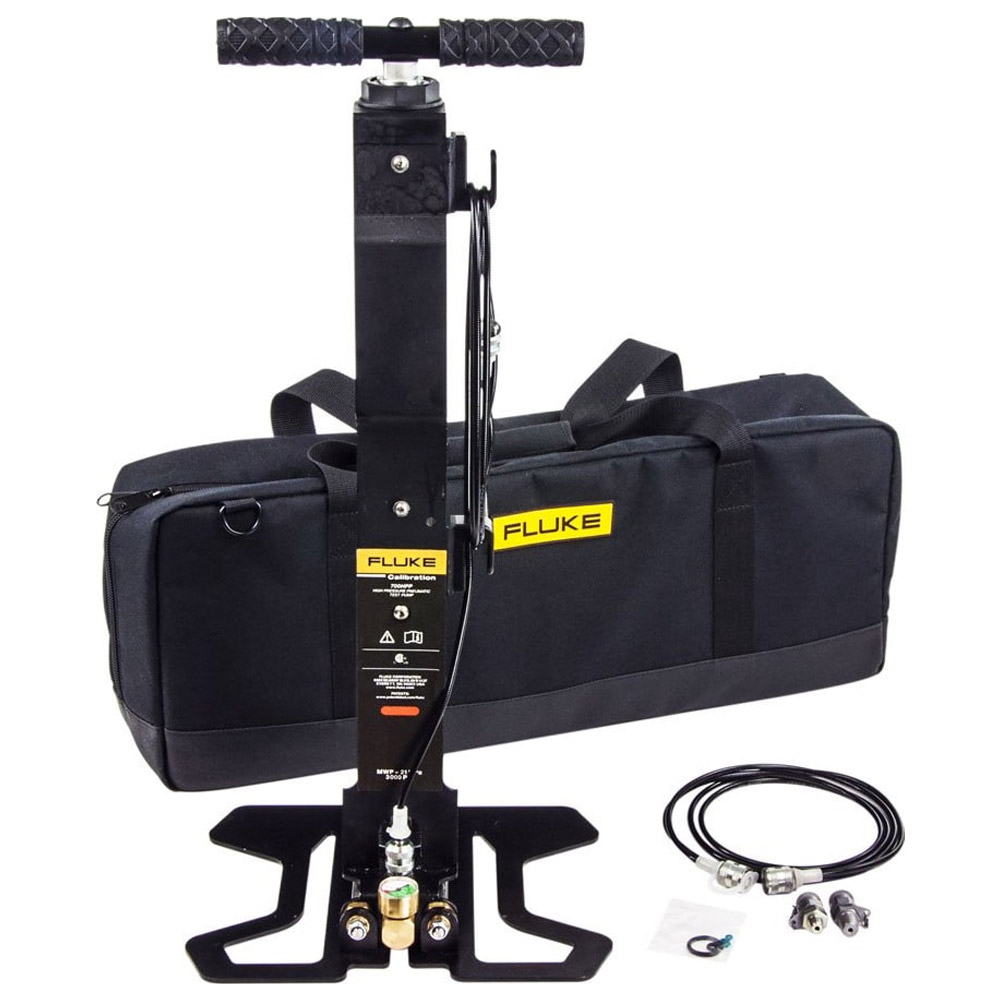

Fluke 700HPP-MET – High Pressure Pneumatic Test Pump, 21 MPA (3000 psi), Metric
- Works on just about any surface, so you don’t need a flat laboratory bench or flat area in the field
- With the 700HPPK, you don’t need to carry a lot of extra equipment or accessories
The 700HPPK generates pressure up to 21 MPA (3000 psi) within 20 seconds to full scale into a 10 cm3 volume. A detachable pressure adjustment system and adjustment control knob enables users to make fine pressure adjustments to 0.1% of reading or better. The 700HPPK includes a 2 meter (6.5-foot) pressure line and assorted pressure fittings, enabling you to connect a wide variety of DUTs for wide workload coverage. In fact, the 700HPPK covers at least five times more workload than standard range pneumatic pumps. An in-line filter system protects the system against contamination from the unit under test.
The Fluke Calibration 700HPPK Pneumatic Test Pump Kit generates and adjusts pneumatic pressures up to 21 MPa (3000 psi), without requiring a nitrogen bottle or other external pressure supply. It supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. It’s the perfect solution for generating high pressure in the field, where conditions and operating surfaces can vary.
The 700HPPK is the ideal choice for calibration technicians, test engineers, and instrument technicians working in industries like natural gas transmission and distribution, process, aerospace and defense, who need a simple-to-use, safe and portable pressure source that they can depend on in a wide variety of conditions.
The 700HPPK contains both a calibration manifold and high pressure pump to generate and finely adjust pressures. A second model, the 700HPP, is available for people who only prefer a high pressure source.
Use the 700HPPK Test Pump Kits with 2700G Reference Pressure Gauges or 700G Precision Pressure Gauges for a complete pressure calibration solution.
- The desiccant tube protects against contamination from inlet gas.
- The inlet valve (700HPPK only) is conveniently located at the bottom of the calibration manifold. Opening and closing this valve helps to stabilize the pressure faster.
- The vent valve lets you vent the pressure with a simple turn of a knob (HPPK only).
- The pump handle lets you generate pressure easily and without physical straining.
- The variable volume control lets you adjust the pressure and achieve the exact target pressure on the reference gauge (HPPK only).
- The gauge port enables you to connect a reference gauge to the calibration manifold (HPPK only).
- The calibration manifold (700HPPK only) attaches and detaches easily with quick detent pins, so it’s easy to set up in the field.
- External line providing simple and fast connection to the Device Under Test.
- Inlet port connecting the pump and adjustment manifold.
- The calibration manifold attaches to the pump bracket.
Generate high pressure accurately and safely for a wide workload
The 700HPPK generates pressure up to 21 MPA (3000 psi) within 20 seconds to full scale into a 10 cm3 volume. A detachable pressure adjustment system and adjustment control knob enables users to make fine pressure adjustments to 0.1% of reading or better.
The 700HPPK includes a 2 meter (6.5 foot) pressure line and assorted pressure fittings, enabling you to connect a wide variety of DUTs for wide workload coverage. In fact, the 700HPPK covers at least five times more workload than standard range pneumatic pumps.
An in-line filter system protects the system against contamination from the unit under test.
Use the 700HPPK just about anywhere
The 700HPPK is designed to be at home in the lab or the field. Lightweight and portable, it features collapsible feet, built-in handhold, and a canvas carrying case, making it easy to carry to the field.
The 700HPPK works on just about any surface, so you don’t need a flat laboratory bench or flat area in the field.
With the 700HPPK, you don’t need to carry a lot of extra equipment or accessories. No PTFE tape or extra tools are required thanks to a swivel ¼ NPT female reference gauge connector that makes switching reference gauges fast and easy.
The pump kit is designed so the calibration manifold attaches and detaches easily via quick detent pins. You won’t need to spend a lot of time setting it up or packing it away at the end of the day.
Manufacturer Specs
| Model | 700HPP | 700HPPK |
| Maximum working pressure | 21 MPa 3000 psi |
|
| Time to generate full scale pressure with 10 cc volume (s) |
20 | |
| Weight | 5.5 kg (12.2 lbs) | 7.2 kg (15.8 lbs) |
| Dimensions | 66 x 25 x 13 cm (26 x 10 x 5 in) | 66 x 30.5 x 13 cm (26 x 12 x 5 in) |
| Reference gauge connection | 1/4 NPT, quick connect | |
| Inlet supply contamination protection | Desiccant filter | |
| DUT contamination protection filter | – | 100 micron |
| Fine adjustment resolution | – | 0.05 % reading |
| Maximum leak rate (with isolation valve closed) |
– | 0.01 % reading |
| Supplied test port adapters | NPT: 1/8, 1/4 NPT | |
| BSP: 1/8, 1/4 BSP | ||
| MET: M14, M20, 1/4 NPT | ||
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Maximum Range Pressure (Gauges) | 3000 psi |
Test Equipment General Attributes |
|
| Product Weight | 12.2 LBS |
| Product Height | 5 IN |
| Product Length | 26 IN |
| Product Width | 10 IN |
| ECCN Number | EAR99 |
| Country of Origin | United Kingdom |
