Descripción

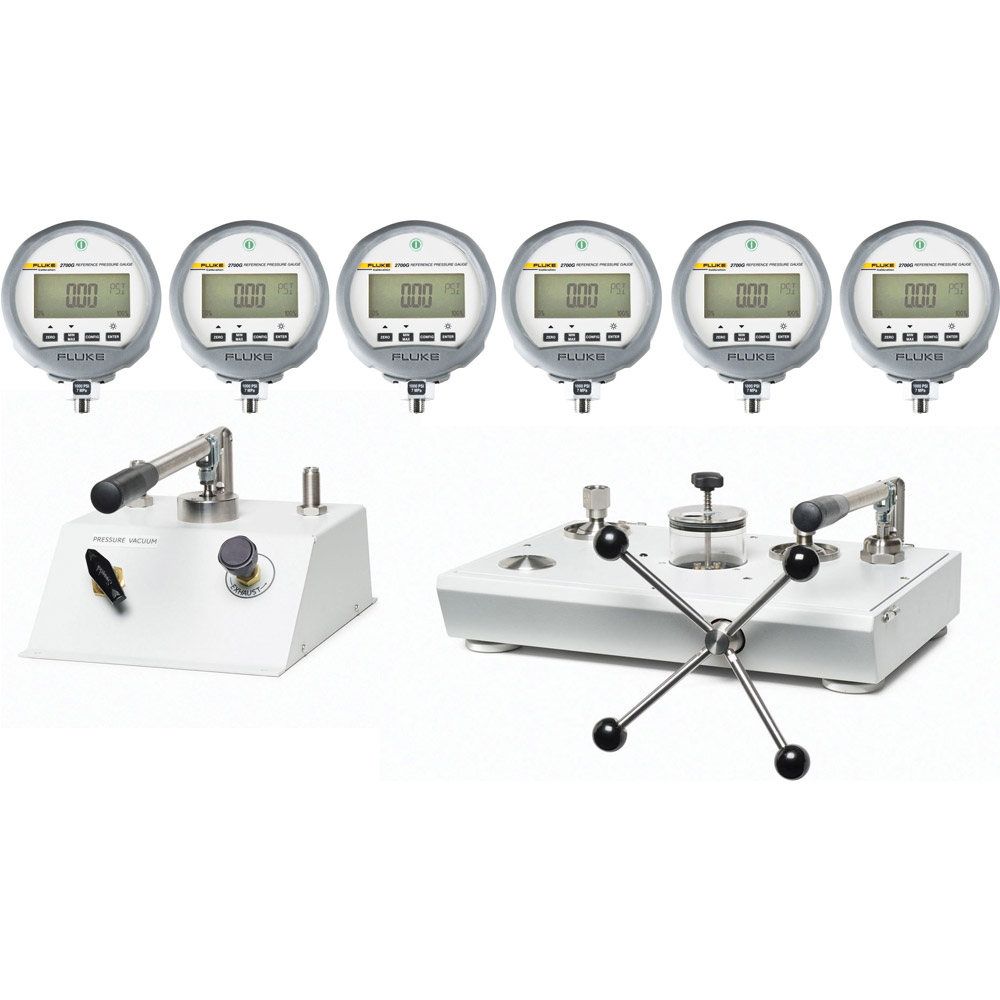

P5515 Hydraulic Calibrator
These instruments are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These hydraulic test pumps provide a quick and easy solution for checking pressure measuring instruments to 20,000 psi (1400 bar). Designed for operation with a wide range of fluids the 5515 include several features from our popular line of deadweight testers.
P5510 Pneumatic Comparison Test Pump
This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.
2700G Pressure Gauges
The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications. It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches. In addition, it can be used as a check standard or to provide process measurements with data logging.
The 2700G has an easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure. You can also view the remaining battery life. Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi. In addition, the supervisor menu can be used to set one custom engineering unit. To ensure against incorrect measurements, each of the above functions can be locked from use through the supervisor menu.
The 2700G Reference Pressure Gauge can be combined with the Fluke Calibration P5500 series of comparison test pumps to make a complete pressure calibration system. The unique test port design of the P5500 series allows for hand tight connection of the 2700G without the use of PTFE tape.
Manufacturer Specs
P5515 Hydraulic Calibrator
| Specifications | |
| Pressure Range | 0 to 20,000 psi (1,400 bar) |
| Test Port Adapters | (2 sets) 1/8, 1/4, 3/8 and 1/2 NPT or BSP |
| Instrument Weight | 36 lb (16 kg) |
| Instrument Size (W x D x H) | 17.5 x 12 x 8.5 in (440 x 300 x 215 mm) |
| Reservoir Volume | 150 cc |
| Screw Press Displacement | 5.5 cc |
| Pump Displacement | 4.7 cc per stroke |
P5510 Pneumatic Comparison Test Pump
| Specifications | |
| Pressure Range | 0 to 300 psi (20 bar) |
| Vacuum Range | 0 to 24 inHg (800 mbar) |
| Instrument Size (W x D x H) | 9.5 x 13 x 7 in (240 x 330 x 180 mm) |
| Instrument Weight | 7.5 lb (3.5kg) |
| Test Port Adapters | 2 sets 1/8, 1/4, 3/8, and 1/2 NPT or BSP |
2700G Pressure Gauges
| Mechanical specifications | |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in) |
| Pressure connection | ¼ in NPT Male |
| Housing/weight | Cast ZNAL/0.56 kg (1.22 lb) |
| Display | 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 % |
| Power | Three AA alkaline batteries |
| Battery life | 75 hours |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 20000 psi (20000 hPa) |
| Gauge Pressure | Yes |
| Built in Pressue Pump | Yes |
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
| Style (pumps) | Hydraulic, Pneumatic, Pneumatic and Hydraulic |
| Maximum Range Pressure (Gauges) | 20000 psi |
| Fluid Compatability | Air, Hydraulic Oil, Water |
| NIST Calibration | Yes |
| Kits Available | Yes |
Test Equipment General Attributes |
|
| ECCN Number | EAR99 |
| Country of Origin | United States |
