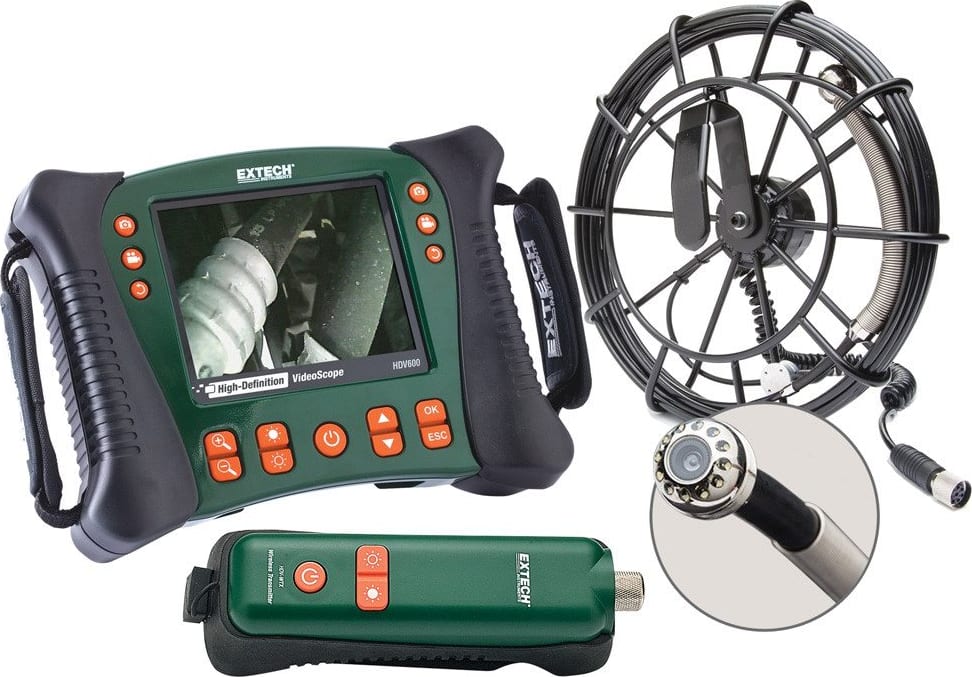

Extech HDV650W-10G HD VideoScope Wireless Plumbing Kit with 10m Probe
- SD memory card included to store >15,000 images
- AV output for viewing images and video directly on a monitor
- Non-slip ergonomic handles for ambidextrous use
- Video recording (up to 4 hours) with Voice annotation
- Rugged oil/chemical resistant and water/drop proof housing (IP67/2m)
Inspection Camera with Wireless 25mm camera head, 60° FOV/Long Depth of Field Probe (10m)
The HDV650W-10G is from drains to pipe runs, Extech’s Plumbing Videoscope Kits reveal problems with its large, waterproof, rugged, high definition color display and a 10m or 30m snake with 25mm diameter camera head. Built-in bright lights help illuminate the problem area deep within the pipe runs. The camera probe is rugged enough to dislodge small clogs. Ideal for inspecting P-traps, 90s, drains, pipe runs, sewers, vent stacks and more. Available in a wireless kit that allows you to transmit video up to 100ft (30m) from the measurement point to your monitor.
Manufacturer Specs
| General Specifications | |
| Camera | |
| Minimum Focus distance | 2.36″ (60mm) |
| Field of View | 65° |
| Shaft diameter | 0.98″ (25mm) |
| Working length | 32.8ft (10m) or 98.4ft (30m) |
| Borescope | |
| LCD Color TFT Display | 5.7″ (14.5cm) size; 5.3” (13.5cm) viewable |
| Pixels | 640 x 480 VGA pixel resolution |
| Frame Rate | 30 fps frame rate (NTSC & PAL) |
| Operating | up to 4 hours AVI video |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 10 M (393.70 IN) |
| Shaft Diameter | 25 MM (0.025 M) |
| Screen Size | 5.7 IN |
| Detachable Screen | No |
| Screen Type | TFT LCD |
| Image Resolution | 640 x 480 VGA pixel resolution |
| Video Output Format | NTSC, PAL |
| Max Transmission Range for Wireless | 100 Ft |
| IP Rating | IP57, IP67 |
Test Equipment General Attributes |
|
| Unique Features | wireless |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | SD Card |
| Product Height | 14.50 IN |
| Product Length | 24.75 IN |
| Product Width | 16.45 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 14.50 IN |
| Shipping Length | 24.75 IN |
| Shipping Width | 16.45 IN |
