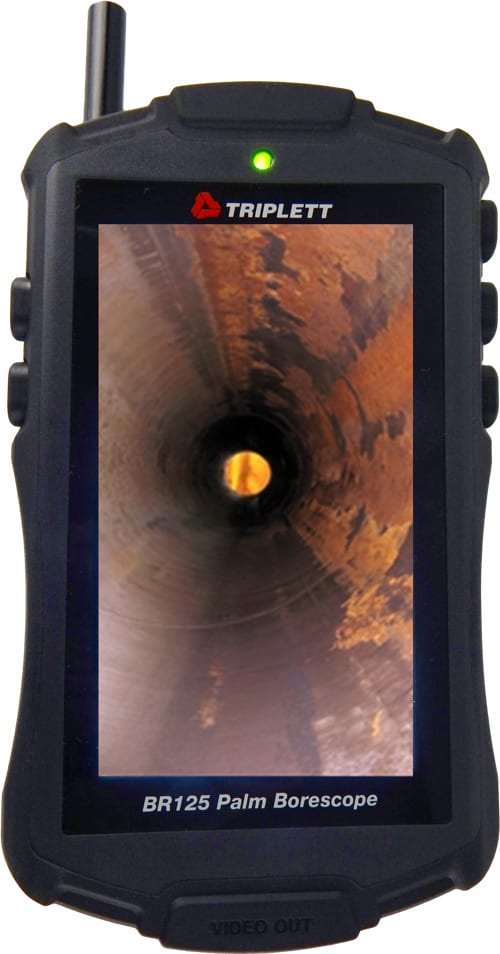

Triplett BR125 – Palm Borescope
Palm Borescope
- 8mm waterproof (IP67) camera with 2.5ft (0.77m) flexible cable
- 4.3″ 640 x 480 TFT LCD monitor
- 2X digital zoom
- Image mirroring and image rotation
The Palm Borescope allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 8mm waterproof (IP67) camera with a 2.5ft (0.77m) flexible cable. It features a 4.3″ 640 x 480 TFT LCD monitor, 2X digital zoom, image mirroring and image rotation. A 3.5mm video output jack can be used for external viewing ona a larger display. Drop tested to 3 feet. Includes mirror, hook, magnet, and carrying case.
Applications
- Inspect cable connections on the back of installed equipment
- Plumbing and Electrical installations behind walls and hard-toreach
- areas
- HVAC and Heating ductwork or in and around the heat exchanger,
- “A Coil» and evaporator
- Automotive sensors and engine parts
- Insect or rodent infestation
- Anywhere you need to see underneath and behind difficult to move objects.
Manufacturer Specs
| General Specifications | |
| Camera Diameter | 8mm |
| Waterproof | IP67 |
| Horizontal Viewing Angle | 45° ± 5° |
| Focus Distance | 1.2 to 3.1” (3 to 8cm) |
| Cable Length | 2.5ft (0.77m) |
| Display | 4.3″ TFT LCD |
| Pixels | 640 x 480 |
| Image Zoom | X2 |
| Video Format | NTSC and PAL |
| Power | 4 x AA Batteries |
| Dimensions | 7 x 3.5 x 1.4 ” (180 x 89 x 36mm) |
| Weight | 11.5oz (325g) |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 2.5 IN |
| Shaft Diameter | 8 MM (0.008 M) |
| Screen Size | 4.3 IN |
| Screen Type | TFT LCD |
| Video Resolution (Boroscopes) | 640 x 480 |
| Image Resolution | 640 x 480 |
| Max Probe Distance with Extensions | 2.5 Ft |
| Video Output Format | NTSC, PAL |
| IP Rating | IP67 |
Test Equipment General Attributes |
|
| Product Weight | 1 LBS |
| Product Height | 2.00 IN |
| Product Length | 9.00 IN |
| Product Width | 6.00 IN |
| HTS/Schedule B Number | 9013.80.9000 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.00 IN |
| Shipping Length | 9.00 IN |
| Shipping Width | 6.00 IN |
