Descripción

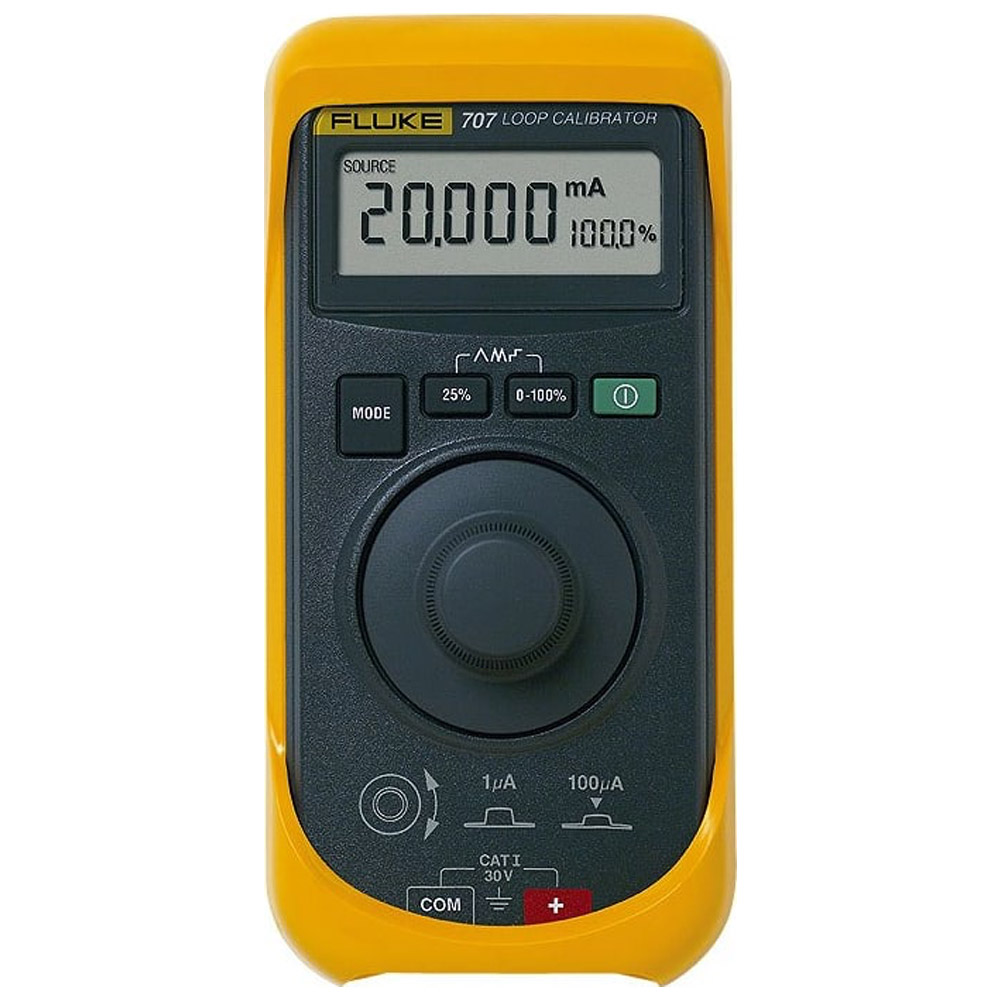

Fluke 707 – Loop Calibrator
- High performance loop calibrator for calibration, repair, and maintenance
- Features large display and simple, quick-click interface for easy one-handed operation.
- Provides simultaneous mA and % readout for quick, easy interpretation of readings.
- Delivers mA accuracy of 0.015%
- Provides 1 µA resolution for mA source, simulate, and measure
The Fluke 715 Volt/mA Calibrator delivers outstanding performance, durability, and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight, and easy to carry. With a push-button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust/splash resistant, and features a removable battery door for quick battery changes.
The Fastest, One-handed Tool for Loop Checks
The Fluke 707 Loop Calibrator is a high-performance solution for calibration, repair, and maintenance of current loops. The “Quick Click” knob makes it extremely fast and easy to use. It features:
- One handed user interface with «Quick Click» detented knob
- mA sourcing, simulation and measurement
- 0.015 % accuracy and 0.001 mA resolution
- Simultaneous mA and % of span display
- Selectable step or ramp outputs
- 24 V Loop supply with mA measure, including 250 Ω HART resistor
- 0 V dc to 28 V dc measurement to check Loop Voltage
- Removable battery door for quick battery replacement
- Compact case with protective holster
- Three year warranty
Manufacturer Specs
| General Specifications | |
| Maximum voltage | 30 volts: Non-operating temperature: –4 °C to 60 °C |
| Operating temperature | –10 °C to 55 °C |
| Relative humidity | 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C) |
| Operating altitude | 3,000 m max |
| Shock | 1 m drop tes |
| Vibration | Random, 2 g, 5 Hz to 500 Hz |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Power | 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
| Warranty | Three-years |
| Current Measurement | |
| Range: | 0 to 24 mA |
| Resolution: | 0.001 mA |
| Accuracy: | 0.015% Rdg + 2 LSD |
| Current Sourcing | |
| Range: | 0 to 20 mA or 4 to 20 mA |
| Accuracy: | 0.015% Rdg + 2 LSD |
| Drive Capability: | 1200 Ω; 950 Ω at 20 mA in HART mode |
| Current Simulation | |
| Range: | 0 to 20 mA or 4 to 20 mA |
| Accuracy: | 0.015% Rdg + 2 LSD |
| Ext. loop voltage requirement: | 12-30 V |
| Loop Power | While measuring mA, 24 V |
| Voltage measurement | |
| Range: | 0 to 28 V DC |
| Resolution: | 1 mV |
| Accuracy: | 0.015% Rdg + 2 LSD |
| Environmental Specifications | |
| Operating Temperature | -10ºC to 55ºC |
| Storage Temperature | -30ºC to 60ºC |
| Humidity (Without Condensation) | 0 to 90% (0ºC to 35ºC); 0 to 70% (35ºC to 55ºC) |
| Temperature Coefficient | -10ºC to 18ºC, 28ºC to 55ºC, ±.005% of range per ºC |
| Safety Specifications | |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Maximum voltage | 30V |
| Mechanical & General Specifications | |
| Size | 152 x 70 x 41 mm |
| Weight | 224 g (340 g including holster) |
| Batteries | One 9V battery Alkaline |
| Warranty | Three years |
| Shock & Vibration | per MIL-T-28800 for a Class 2 Instrument |
| Display current and % of span | Yes |
| Auto step, auto ramp | Yes |
| Span Check | Yes |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Height | 3.25 IN |
| Product Length | 10.25 IN |
| Product Width | 6.00 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| Country of Origin | China |
| Shipping Height | 3.25 IN |
| Shipping Length | 10.25 IN |
| Shipping Width | 6.00 IN |
