Descripción

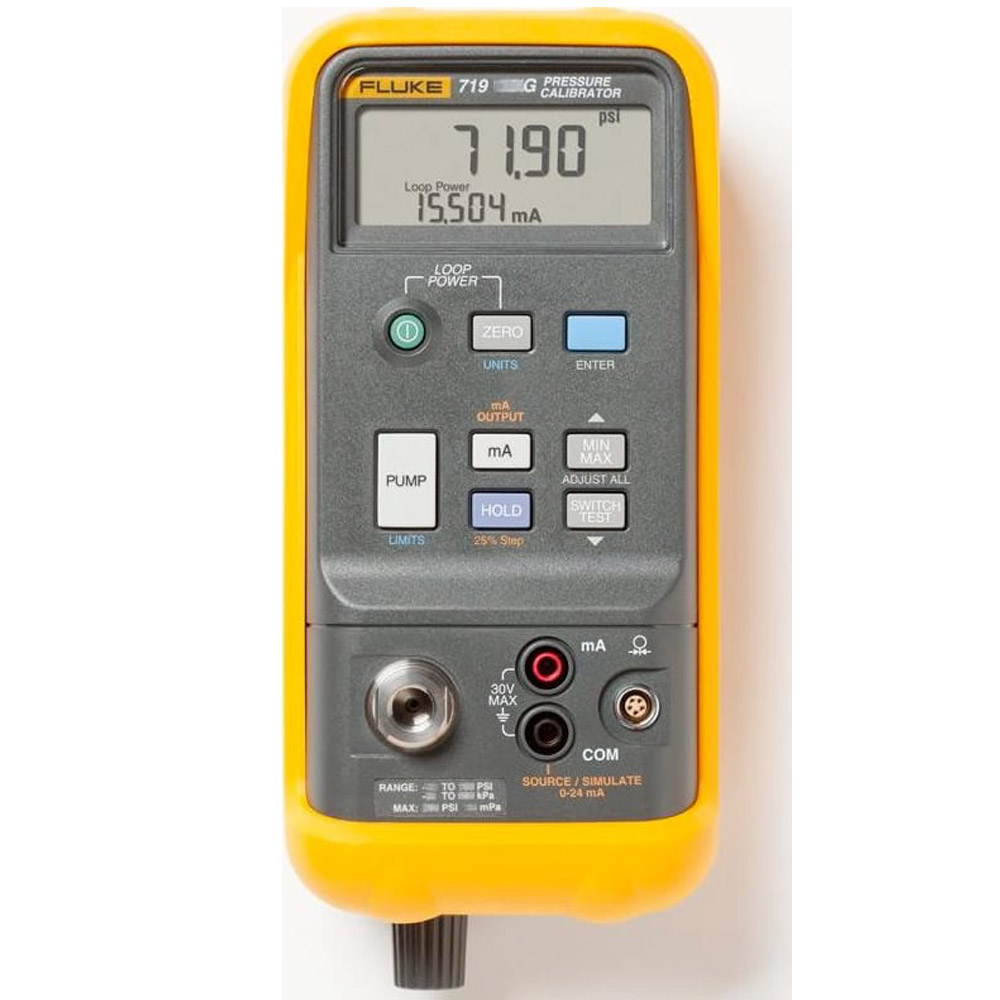

| FLUKE-719 100G Electric Pressure Calibrator, 100 psi, 7 bar Forget the Hassle of Hand Pumping Now you can calibrate and test pressure devices quickly and easily with one hand, saving valuable time. With the innovative, built-in electric pump, the Fluke 719 Electric Pressure Calibrator provides pressure calibration at your fingertips! |
|
| Use the programmable pump limit settings to eliminate over-pressurization, and to set ‘pump to’ pressure values. The unique cleanout port design reduces pump failures, and makes the 719 easy to clean without repair. The compact, lightweight form, combined with one-handed calibration, makes this pressure calibrator the ideal tool for busy process professionals
Pressure calibration made easy, by a name you know and trust for all your process calibration needs. |
Manufacturer Specs
| General Specifications | |
| Storage temperature | -30 °C to 60 °C |
| Operating temperature | -10 °C to 55 °C |
| Relative humidity | 95 % (-10 °C to 30 °C) 75 % (30 °C to 40 °C) 45 % (40 °C to 50 °C) 35 % (50 °C to 55 °C) |
| Shock | 1 meter drop test |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Size (HxWxL) | 60 mm x 87 mm x 210 mm (2.19 in x 3.41 in x 8.28 in) |
| Weight | 912 g (2 lb) |
| Battery | Two 9 V alkaline batteries |
| Battery life | 12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi |
| Warranty | Three-years, one year for pump |
| Specifications | |
| Fluke-719 30G | |
| Range | -12 to 36 psi, -850 mbar to 2.4 bar |
| Resolution | 0.001 psi, 0.1 mbar |
| Accuracy | 0.025 % range for 6 months 0.035 % of range for one (1) year |
| Fluke-719 100G | |
| Range | -12 to 120 psi, -850 mbar to 8 bar |
| Resolution | 0.01 psi, 1 mbar |
| Accuracy | 0.025 % range for 6 months 0.035 % of range for one (1) year |
| mA | |
| Range | 0 to 24 mA |
| Resolution | 0.001 mA |
| Accuracy | 015 % Rdg + 2 counts |
| Notes | Max load, 1000 Ω, 750 Ω ohm in HART mode |
| Loop supply | |
| Range | 24 V dc |
| Resolution | N/A |
| Accuracy | ± 10 % |
| Pump specifications | |
| Maximum pressure generation | 120 PSI (8 BAR) (100 PSI model) |
| Pump to | – 30 PSI in less than 15 seconds* – 100 psi in less than 45 seconds* *(with 1 meter of 1/8 inch test hose) |
| Pump cycles between rebuilds | 5000 |
| Total pump life | 20,000 calibration cycle |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 200 psi (200 hPa) |
| Accuracy | 0.025 % range for 6 months. 0.035 % of range for one (1) year |
| Maximum Resolution | .001 psi |
| Absolute Pressure | No |
| Gauge Pressure | Yes |
| Differential Pressure | No |
| Built in Pressue Pump | Yes |
| Intrinsically Safe | No |
| Min/Max | Yes |
| Simulate Loop Voltage | No |
| Modular Inputs Available | Yes |
| Hart Compatible | No |
| Battery Run Time | 12 HR |
| FieldBus Compatible | No |
| Backlight | No |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Electric pump for one handed pressure calibration. Best in class pressure measurement uncertainty of 0.025 %. Measure and source mA with
best in class 0.015 % accuracy. Precision pressure adjust vernier. Variable release rate bleed valve for easy pressure adjustment. Ideal performance for high accuracy transmitter calibration. 30 PSI and 100 PSI pressure ranges. Programmable pump limit which eliminates over-pressurization and allows the user to program target pressures for pumping. |
| Warranty | 3 YEARS |
| Warranty Details | One year for pump. |
| Safety Approval | CSA |
| Product Weight | 2 LBS |
| Product Height | 2.19 IN |
| Product Length | 8.28 IN |
| Product Width | 3.41 IN |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.50 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 8.00 IN |
