Fluke 2271A-N-G7M/G700K Pressure Calibrator with Module
- Benchtop pressure calibrator NPT, 7 MPA (1000 PSI)
- Calibrate a wide range of gauges and sensors with a single instrument
- Removable pressure measurement modules make it easy to change or add measurement ranges
- 0.02 % FS pressure measurement uncertainty
The Fluke Calibration 2271A Industrial Pressure Calibrator provides a complete, automated solution for calibrating a wide variety of pressure gauges and sensors. Thanks to its modular design, it can be configured to meet different needs and budgets and expanded to cover a broad workload.
The 2271A is ideal for calibration laboratories starting out in pressure calibration because it offers wide pressure measurement capabilities in a single instrument. Everything you need for calibrating pressure is included; just connect supply pressure. And your investment will stand the test of time: as your workload grows and changes, the 2271A can grow and change too. Just add measurement modules.
The 2271A is also a great fit for labs that currently calibrate pressure transmitters and gauges and want to expand their capabilities or make their processes more efficient. This instrument is easy to set up and use, so you don’t have to reserve it for your most experienced technicians. And it can be fully automated so it can help your lab run more efficiently.
If you are concerned about contamination from the workload coming in from the field, the 2271A is a good choice for you as well. Its optional Contamination Prevention System (CPS) provides an important safeguard against that pervasive hazard.
A graphical user interface in your choice of ten languages and an intuitive menu structure, as well as an intuitive hardware design, make the 2271A remarkably easy to learn and to use.

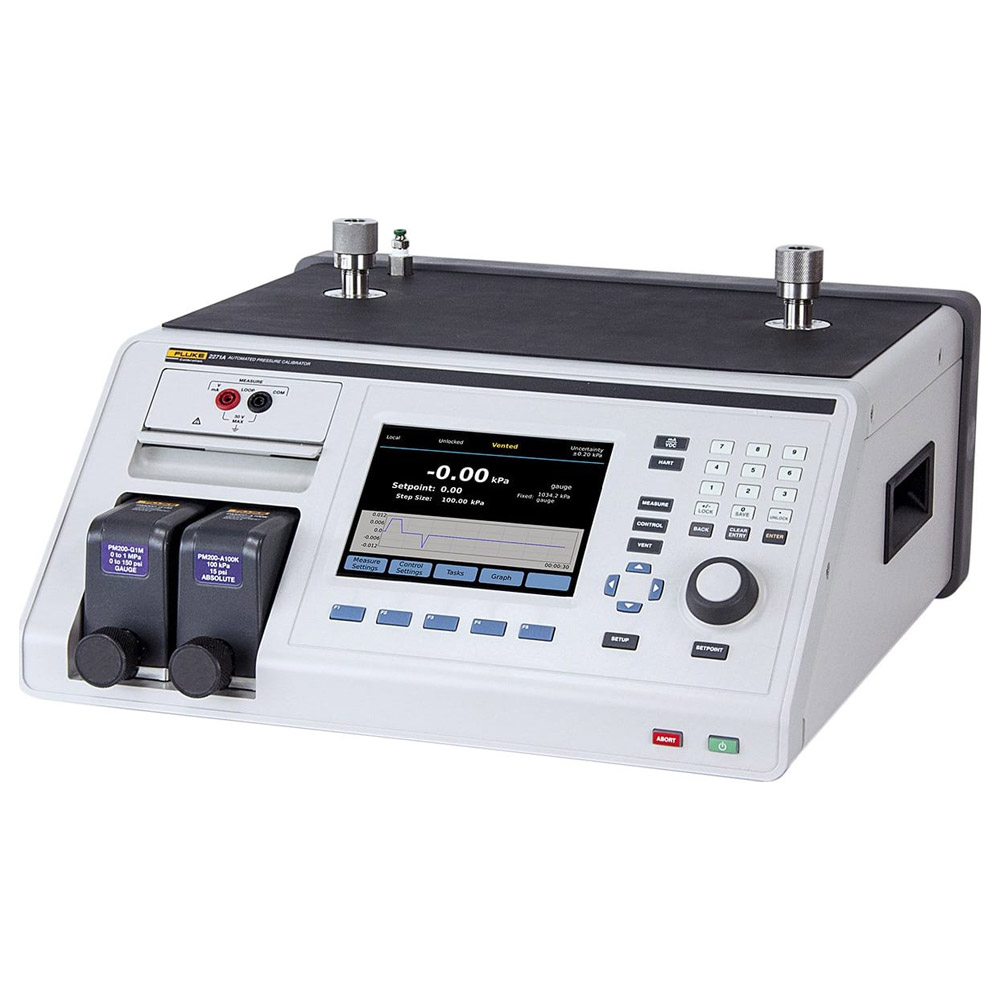

Panel description
- These external drivers are 24 V dc outputs that operate accessories such as the Contamination Prevention System
- USB port
- Ethernet connector
- RS-232 connector
- Master on/off switch
- Line power fuse AC PWR INPUT Connector
- All of the pressure connections are made on the rear panel through this replaceable manifold
- The graphical user interface in a choice of ten languages features an easy-to-read, intuitive menu structure that lets you access any feature within four button presses or less
- The large main display enables you to easily view and edit important information
- The real-time graph makes it easy to see pressure stability or procedure status
- Function softkeys
- Push the Setpoint button to quickly enter a pressure value to control
- Pressure measurement modules snap in and out easily
- Test ports provide easy, hand-tight connection to devices under test
- Reference port for applications that require an atmospheric reference
- Handle
- Make minor adjustments to the pressure using the jog wheel; ideal for calibration of analog dial gauges
Versatile pressure measurement modules
The 2271A uses PM200 Pressure Measurement Modules. These modules use a high characterized silicon pressure sensor to provide an economical method of making accurate pressure measurements. The 0.02 % full scale (FS) specification includes the short-term performance of the module (linearity, hysteresis, and repeatability) as well as its long-term stability and the uncertainty of the calibration standard. Users can be confident in the PM200 measurement performance.
Conveniently located dual test ports and reference port
Dual test ports on the top of the 2271A let you easily mount two devices under test (DUTs). You can potentially double your throughput without spending time searching for fittings and tees. The vertical test ports let you easily connect analog dial gauges without the need for additional test stands or manifolds. Two test port types are supported, the standard HC20 or the P3000 test port.
Both types of test ports enable you to make hand tight connections to traditional NPT, BSP, or metric pressure fittings. The HC20 test port includes easy grip features and integral support for M20 connections, whereas the P3000 style test port provides backward compatibility for users of Fluke Calibration P3000 deadweight testers or P5500 pressure comparators. A reference port is also located on top of the 2271A for applications that require an atmospheric reference.
Manufacturer Specs
| General specifications | |
| Power requirements | 0 V ac to 240 V ac, 47 Hz to 63 Hz |
| Fuse | T2A 250 V ac |
| Max power consumption | 100 W |
| Operating ambient temperature range | 15 °C to 35 °C |
| Storage temperature | -20 °C to 70 °C |
| Relative humidity | Operating: <80 % to 30 °C, <70 % to 35 °C Storage: <95 %, non-condensing. A power stabilization period of four days may be required after extended storage at high temperature and humidity. |
| Vibration | MIL-T-28800D CLASS 3 |
| Altitude (Operation) | <2000 m |
| Ingress protection | IEC 60529: IP20 |
| Safety | IEC 61010-1, Installation Category II, Pollution degree 2 |
| Warmup time | 15 minutes typical |
| Weight (chassis only) | 15 kg (33.06 lbs) |
| Control specifications | |
| Control Precision (Dynamic Mode) | PM200-BG2.5K |
| Control turndown | 10:1 (Typical) |
| Low control point | 1 kPa (0.15 psi) absolute |
| Fluke PM200 Modules Specification | |||||
| Model | Range (SI Units) | Range (Imperial Units) | Measurement Mode 1 | 1-Year Instrumental Uncertainty % FS | Precision Uncertainty % FS |
| PM200-BG2.5K | -2.5 kPa to 2.5 kPa | -10 inH2O to 10 inH2O | bi-directional gauge | 0.2 | 0.055 |
| PM200-BG35K | -35 kPa to 35 kPa | -5 psi to 5 psi | bi-directional gauge | 0.05 | 0.015 |
| PM200-BG40K | -40 kPa to 40 kPa | -6 psi to 6 psi | bi-directional gauge | 0.05 | 0.015 |
| PM200-BG60K | -60 kPa to 60 kPa | -8.7 psi to 8.7 psi | bi-directional gauge | 0.05 | 0.015 |
| PM200-BG100K | -100 kPa to 100 kPa | -15 psi to 15 psi | gauge | 0.02 | 0.01 |
| PM200-A100K | 2 kPa to 100 kPa | 0.3 psi to 15 psi | absolute | 0.1 | 0.02 |
| PM200-A200K | 2 kPa to 200 kPa | 0.3 psi to 30 psi | absolute | 0.1 | 0.02 |
| PM200-BG200K | -100 kPa to 200 kPa | -15 psi to 30 psi | bi-directional gauge | 0.02 | 0.01 |
| PM200-BG250K | -100 kPa to 250 kPa | -15 psi to 36 psi | bi-directional gauge | 0.02 | 0.01 |
| PM200-G400K | 0 kPa to 400 kPa | 0 psi to 60 psi | gauge | 0.02 | 0.01 |
| PM200-G700K | 0 kPa to 700 kPa | 0 psi to 100 psi | gauge | 0.02 | 0.01 |
| PM200-G1M | 0 MPa to 1 MPa | 0 psi to 150 psi | gauge | 0.02 | 0.01 |
| PM200-G1.4M | 0 MPa to 1.4 MPa | 0 psi to 200 psi | gauge | 0.02 | 0.01 |
| PM200-G2M | 0 MPa to 2 MPa | 0 psi to 300 psi | gauge | 0.02 | 0.01 |
| PM200-G2.5M | 0 MPa to 2.5 MPa | 0 psi to 360 psi | gauge | 0.02 | 0.01 |
| PM200-G3.5M | 0 MPa to 3.5 MPa | 0 psi to 500 psi | gauge | 0.02 | 0.01 |
| PM200-G4M | 0 MPa to 4 MPa | 0 psi to 580 psi | gauge | 0.02 | 0.01 |
| PM200-G7M | 0 MPa to 7 MPa | 0 psi to 1000 psi | gauge | 0.02 | 0.01 |
| PM200-G10M | 0 MPa to 10 MPa | 0 psi to 1500 psi | gauge | 0.02 | 0.01 |
| PM200-G14M | 0 MPa to 14 MPa | 0 psi to 2000 psi | gauge | 0.02 | 0.01 |
| PM200-G20M | 0 MPa to 20 MPa | 0 psi to 3000 psi | gauge | 0.02 | 0.01 |
Notes
|
|||||
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 1000 psi (1000 hPa) |
| Gauge Pressure | Yes |
| Built in Pressue Pump | Yes |
| Modular Inputs Available | Yes |
| Hart Compatible | Yes |
| Measure DC Current | Yes |
Test Equipment General Attributes |
|
| Interfaces I/O | LAN / Ethernet, RS-232, USB |
| Product Height | 26.00 IN |
| Product Length | 16.00 IN |
| Product Width | 26.00 IN |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| Shipping Height | 26.00 IN |
| Shipping Length | 16.00 IN |
| Shipping Width | 26.00 IN |
