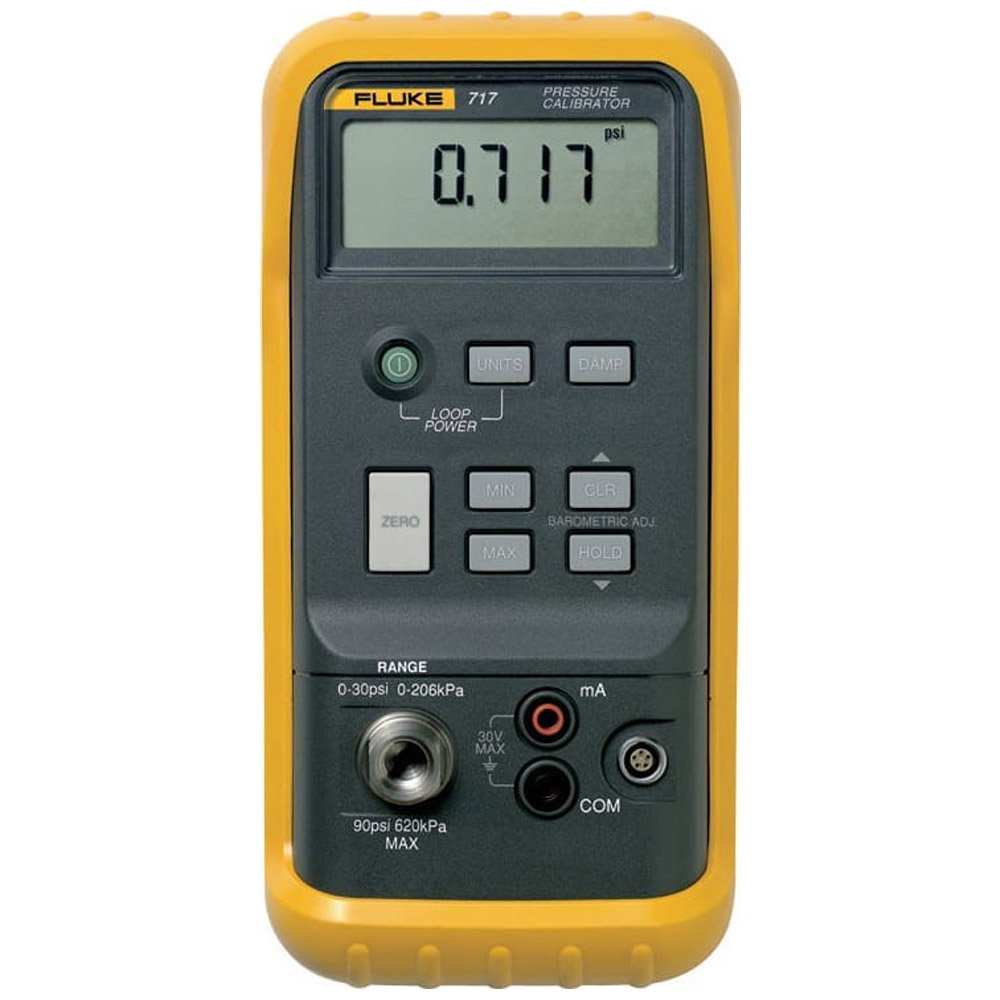

717 Series Pressure Calibrators
Pressure Calibrator 0 to 5000 PSI, (0 bar to 345 bar, 0 to 34474 kPa)
The Fluke 717 Pressure Calibrators delivers outstanding performance, durability and reliability. These calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 717s are easy to use. They are EMI tolerant, dust and splash resistant, and feature a removable battery door for quick battery changes.
These calibrators come in 9 models measuring pressure up to 5000 psi/345 bar and are compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality.
Manufacturer Specs
| Measurement Accuracy | |
| Pressure | |
| 717 Series Measure Pressure |
(internal sensor) |
| Accuracy: | 0.05% full scale |
| Functions: | Zero, Min, Max, Hold, Damp Note Gasses / liquids (non-corrosive) |
| Fluke 717 1G Range: |
-1 to 1 PSI, (-68.9 mbar to 68.9 mbar, -83 to 6.89 kPa) |
| Resolution: | 0.0001 PSI, 0.001 mbar, 0.0001 kPa |
| Over Pressure: | 5 X Full Scale |
| Fluke 717 30G Range: |
-12 to 30 PSI, (-850 mbar to 2 bar, -83 to 206.84 kPa ) |
| Resolution: | 0.001 PSI, 0.1 mbar, 0.01 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 100G Range: |
-12 to 100 PSI, (-850 mbar to 7 bar, -83 to 689.48 kPa) |
| Resolution: | 0.01 psi, 0.1 mbar, 0.01 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 300G Range: |
-12 to 300 PSI, (-850 mbar to 20 bar, -83 to 2068.42 kPa ) |
| Resolution: | 0.01 PSI, 1 mbar, 0.1 kPa |
| Over Pressure: | 375 PSI, 25 bar |
| Fluke 717 500G Range: |
0 to 1000 PSI, (0 mbar to 69 bar, 0 to 6894.76 kPa ) |
| Resolution: | 0.1 PSI, 1 mbar, 0.1 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 1500G Range: |
0 to 1500 PSI, (0 bar to 103.4 bar, 0 to 10342 kPa ) |
| Resolution: | 0.1 PSI, 0.01 mbar, 1 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 3000G Range: |
0 to 3000 PSI, (0 bar to 207 bar, 0 to 20684.27 kPa) |
| Resolution: | 0.1 PSI, 0.01 bar, 1 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 5000G Range: |
0 to 5000 PSI, (0 bar to 345 bar, 0 to 34474 kPa) |
| Resolution: | 0.1 PSI, 0.01 bar, 1 kPa |
| Over Pressure: | 2 X full scale |
| Fluke 717 Series with Pressure Modules | |
| Measure Pressure | (via pressure module connector using optional Pressure Modules) |
| Range: | 29 pressure modules, 0-1 inH20 to 10,000 PSI, 2.5 mbar to 700 bar ranges. Over pressure per pressure module specs |
| Resolution: | Per pressure module specs |
| Accuracy: | per pressure module specs |
| Functions: | Zero, Min, Max, Hold, Damp |
| Current | |
| Range: | 0 to 24 mA (-25% to 125%) |
| Resolution: | 0.001 mA |
| Accuracy: | 0.015% + 2 counts |
| Specifications | |
| Loop Power | |
| Range: | 24 V dc |
| Accuracy: | +/- 10% Note: Drive; 20 mA into 1000 ohms for battery >6.8V; 700 W for battery 5.8 to 6.8 V |
| Display | Clear 5 digit LCD |
| Environmental Specifications | |
| Operating Temperature | -10 ºC to 55 ºC |
| Storage Temperature | -40 ºC to 60 ºC |
| Humidity (Without Condensation) | 95% (10 ºC to 30 ºC) 75% (30 ºC to 40 ºC) 45% (40 ºC to 50 ºC) 35% (50 ºC to 55 ºC) |
| Operating Altitude | 3,000 M max |
| Safety Specifications | |
| Safety | CSA C22.2 No. 1010.1:1992 |
| Mechanical & General Specifications | |
| Size | 201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.) |
| Weight | 22 oz, approximately 600G with holster |
| Warranty | 3 years |
| Shock & Vibration | Random, 2G, 5-500 Hz 1m drop test |
| Battery type | Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 10000 psi (10000 hPa) |
| Accuracy | 0.05% full scale |
| Maximum Resolution | .1 psi |
| Absolute Pressure | No |
| Gauge Pressure | Yes |
| Differential Pressure | No |
| Built in Pressue Pump | No |
| Intrinsically Safe | No |
| Min/Max | No |
| Simulate Loop Voltage | No |
| Modular Inputs Available | Yes |
| Hart Compatible | No |
| Battery Run Time | 20 HR |
| FieldBus Compatible | No |
| Backlight | No |
| Source/Simulate DC Current | No |
| Measure DC Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Measure pressure, 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model). Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power. Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 1.6 LBS |
| Product Height | 2.06 IN |
| Product Length | 7.93 IN |
| Product Width | 3.86 IN |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.50 IN |
| Shipping Length | 9.50 IN |
| Shipping Width | 7.00 IN |
