Pump Up the Pressure

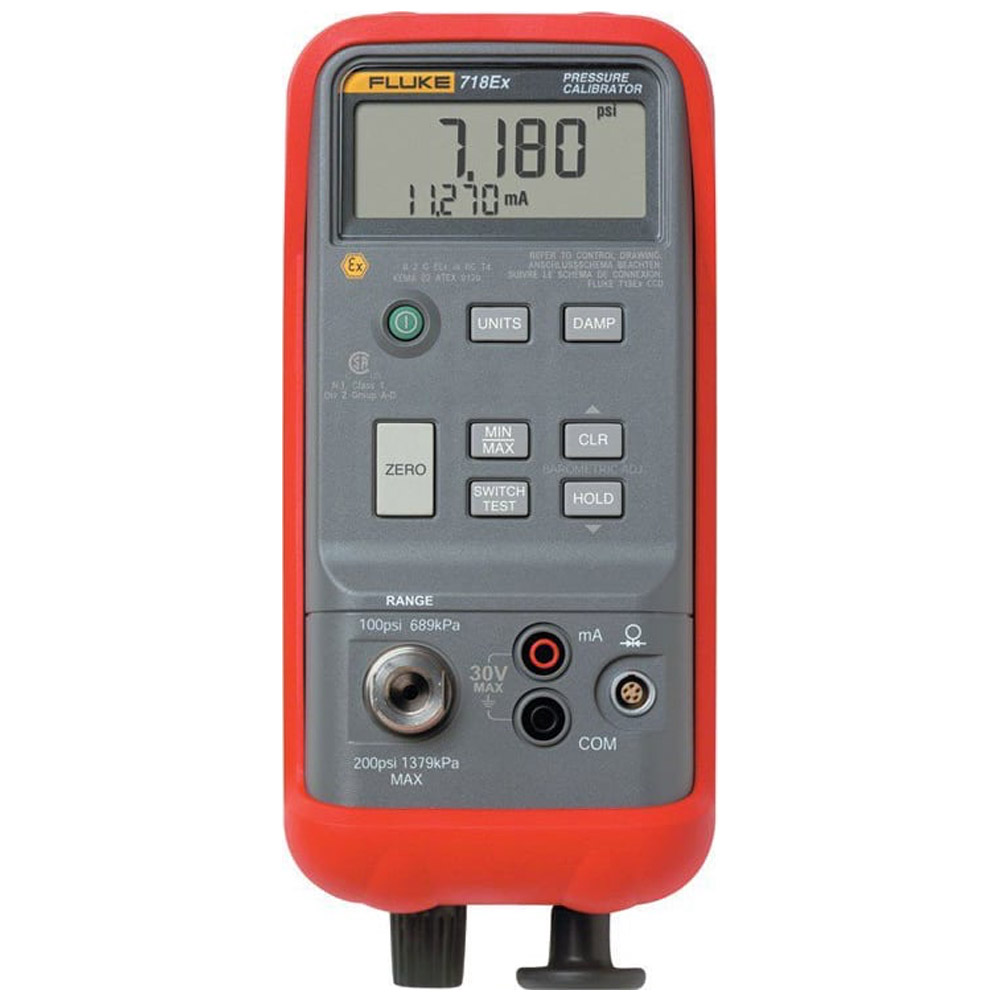

Pressure Calibrator 100 PSI, EX – I.S
The new Fluke 718Ex Intrinsically Safe Pressure Calibrator is a new, powerful intrinsically safe, self contained pressure calibrator for usage in Explosion endangered areas.
Manufacturer Specs
| Measurement Accuracy | |
| Pressure | |
| Fluke 718Ex 30G Range: |
-830 mbar to 2 bar (internal sensor) Over pressure: 3x FS |
| Resolution: | 0.0001 bar |
| Accuracy: | 0.05% FS |
| Functions: | Zero, Min, Max, Hold, Damp Note: for use with non-corrosive gasses |
| Fluke 718Ex 100G Range: |
-830 mbar to 7 bar (internal sensor) Over pressure: 2x FS |
| Resolution: | 0.001 bar |
| Accuracy: | 0.05% FS |
| Functions: | Zero, Min, Max, Hold, Damp Note: for use with non-corrosive gasses |
| Fluke 718Ex 300G Range: |
-830 mbar to 20 bar (internal sensor) Over pressure: 375 psi, 25 bar |
| Resolution: | 0.0001 bar |
| Accuracy: | 0.05% FS |
| Functions: | Zero, Min, Max, Hold, Damp Note: for use with non-corrosive gasses |
| Fluke 718Ex series Range: |
via pressure module connector 29 pressure modules, 2.5 mbar to 700 bar Over pressure per pressure module specs |
| Resolution: | Per pressure module specs |
| Accuracy: | To 0.025% of full span, per pressure module specs |
| Functions: | Zero, Min, Max, Hold, Damp Note: media compatibility per pressure module specs |
| Source Pressure, built in pump Range: |
-820 mbar to full scale |
| Note: | Supported Pressure Units PSI, in. H2O (4 °C), in. H2O (20 °C), kPa, cm H2O (4 °C), cm H2O (20 °C), bar, mbar, kg/cm², mmHg, in Hg |
| Technical Data | |
| Measure Accuracy: | |
| Range: | 0-24 mA |
| Resolution: | 0.001 mA |
| Accuracy: | 0.02% rdg ± 2 counts |
| Display | LCD, 5 digit pressure and current simultaneous |
| Environmental Specifications | |
| Operating Temperature | -10ºC to 55ºC |
| Storage Temperature | -40ºC to 60ºC |
| Humidity (Without Condensation) | 95% (10ºC to 30ºC) 75% (30ºC to 40ºC) 45% (40ºC to 50ºC) 35% (50ºC to 55ºC) |
| Operating Altitude | 3,000 m max |
| Safety Specifications | |
| Safety | ATEX II 1G Ex ia IIC T4 compliant CSA Certification I.S. Class I, Div 1 Groups A-D , T4 |
| Mechanical & General Specifications | |
| Size | 216 mm L x 94 mm W x 66 mm H (with holster) |
| Weight | Approx. 992 g (with holster) |
| Warranty | Three years, one year for pump |
| Shock | 1 meter drop test |
| Vibration | Random, 2 G, 5-500 Hz |
| Battery type | One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V Battery life: 4 to 20 hours, depending on functions used |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 100 psi (100 hPa) |
| Accuracy | .05 % FS |
| Maximum Resolution | .001 psi |
| Absolute Pressure | No |
| Gauge Pressure | Yes |
| Differential Pressure | No |
| Built in Pressue Pump | Yes |
| Intrinsically Safe | Yes |
| Min/Max | Yes |
| Simulate Loop Voltage | No |
| Modular Inputs Available | Yes |
| Hart Compatible | No |
| Battery Run Time | 20 HR |
| Backlight | No |
| Source/Simulate DC Current | No |
| Measure DC Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | ATEX II 1G Ex ia IIC T4 compliance. I.S. Class I, Division 1 compliance. Built-in pressure/vacuum hand pump.Pressure measurement to 0.05 % of full span, using an internal pressure sensor. Pressure measurement to 3,000 psi/200 bar using any of the 8 intrinsically safe Fluke 700PEx Pressure Modules. |
| Warranty | 3 YEARS |
| Warranty Details | One year for pump. |
| Safety Approval | CSA |
| Product Weight | 2.18 LBS |
| Product Height | 2.6 IN |
| Product Length | 8.5 IN |
| Product Width | 3.72 IN |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.50 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 8.00 IN |
