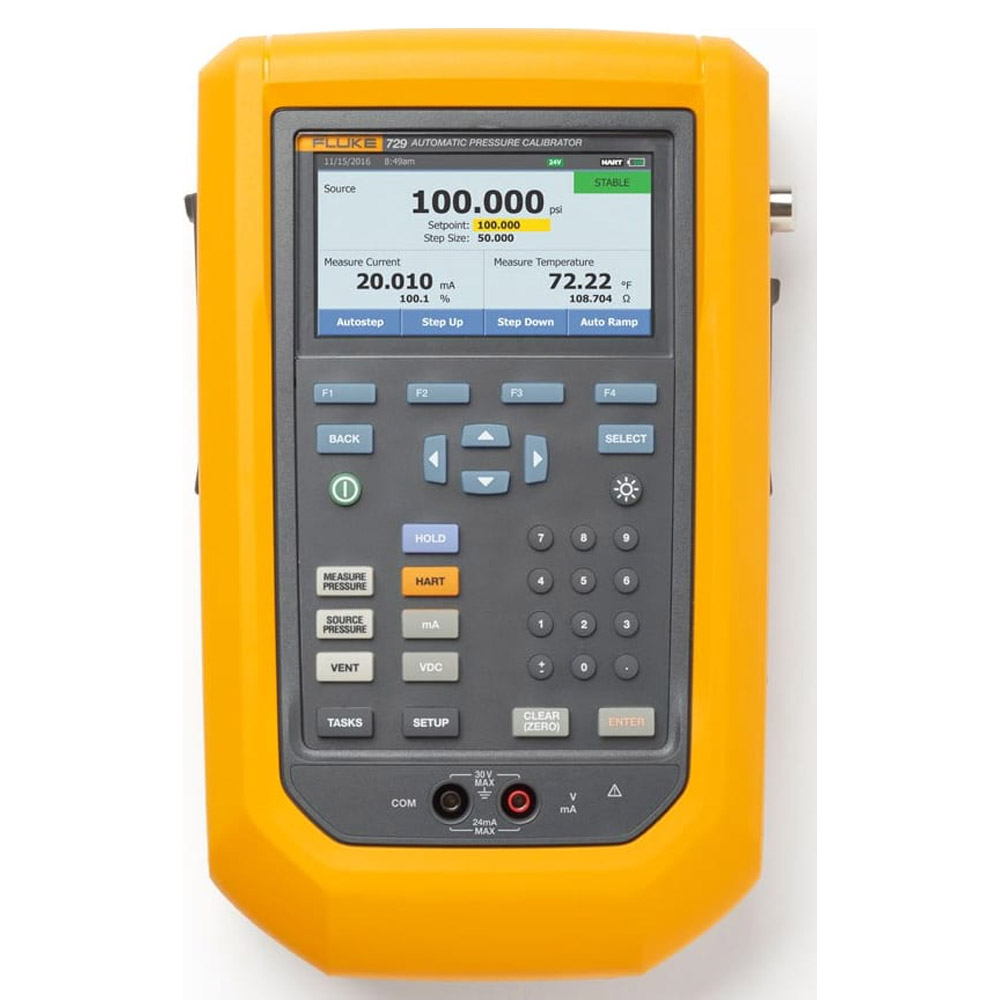

Fluke 729/750SW BU Pressure Calibrator with DPCTrack2 Bundle with Fluke Connect
- Automatic pressure generation and regulation to 300 psi
- Easily document the process using onboard test templates
- Automatic internal fine-pressure adjustment
- Measure, source and simulate 4 to 20 mA signals
The Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an easy-to-use, rugged, portable package.
The ideal portable pressure calibrator, the 729 allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the requested value.
The Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance levels. The 729 does the rest.
Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration, and the ability to adjust to applied 0% and 100% values.
Upload and manage documented calibration results with DPCTrack2™ Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.
With three ranges to choose from, 30 psi (2 bar, 200 kPa), 150 psi (10 bar, 1 MPa), and 300 psi (20 bar, 2 MPa), Fluke 729 Automatic Pressure Calibrators are designed to perform when and where you need them.
Manufacturer Specs
| Pressure Specification |
| One-year specification 0.02% of full scale |
| Control specification 0.005% full scale minimum |
| Model | ||
| 729 30G | Psi range, resolution | -12.0000 to 30.0000 psi |
| Bar range, resolution | -0.82737 to 2.06842 bar | |
| kPa range, resolution | -82.737 to 206.843 kPa | |
| Comment | No wireless communication | |
| 729 150G | Psi range, resolution | -12.000 to 150.000 psi |
| Bar range, resolution | -0.8273 to 10.3421 bar | |
| kPa range, resolution | -82.73 to 1034.21 kPa | |
| Comment | No wireless communication | |
| 729 300G | Psi range, resolution | -12.000 to 300.000 psi |
| Bar range, resolution | -0.8273 to 20.6843 bar | |
| kPa range, resolution | -82.73 to 2068.43 kPa | |
| Comment | No wireless communication | |
| 729 30G FC | Psi range, resolution | -12.0000 to 30.0000 psi |
| Bar range, resolution | -0.82737 to 2.06842 bar | |
| kPa range, resolution | -82.737 to 206.843 kPa | |
| Comment | Wireless communication for Fluke Connect | |
| 729 150G FC | Psi range, resolution | -12.000 to 150.000 psi |
| Bar range, resolution | -0.8273 to 10.3421 bar | |
| kPa range, resolution | -82.73 to 1034.21 kPa | |
| Comment | Wireless communication for Fluke Connect | |
| 729 300G FC | Psi range, resolution | -12.000 to 300.000 psi |
| Bar range, resolution | -0.8273 to 20.6843 bar | |
| kPa range, resolution | -82.73 to 2068.43 kPa | |
| Comment | Wireless communication for Fluke Connect | |
| 729CN 200K | Psi range, resolution | -12.0000 to 30.0000 psi |
| Bar range, resolution | -0.82737 to 2.06842 bar | |
| kPa range, resolution | -82.737 to 206.843 kPa | |
| Comment | For China, no wireless communication | |
| 729CN 1M | Psi range, resolution | -12.000 to 150.000 psi |
| Bar range, resolution | -0.8273 to 10.3421 bar | |
| kPa range, resolution | -82.73 to 1034.21 kPa | |
| Comment | For China, no wireless communication | |
| 729CN 2M | Psi range, resolution | -12.000 to 300.000 psi |
| Bar range, resolution | -0.8273 to 20.6843 bar | |
| kPa range, resolution | -82.73 to 2068.43 kPa | |
| Comment | For China, no wireless communication | |
| 729CN 200K FC | Psi range, resolution | -12.0000 to 30.0000 psi |
| Bar range, resolution | -0.82737 to 2.06842 bar | |
| kPa range, resolution | -82.737 to 206.843 kPa | |
| Comment | For China, wireless communication for Fluke Connect | |
| 729CN 1M FC | Psi range, resolution | -12.000 to 150.000 psi |
| Bar range, resolution | -0.8273 to 10.3421 bar | |
| kPa range, resolution | -82.73 to 1034.21 kPa | |
| Comment | For China, wireless communication for Fluke Connect | |
| 729CN 2M FC | Psi range, resolution | -12.000 to 300.000 psi |
| Bar range, resolution | -0.8273 to 20.6843 bar | |
| kPa range, resolution | -82.73 to 2068.43 kPa | |
| Comment | For China, wireless communication for Fluke Connect | |
| 729JP 200K | kPa range, resolution | -82.737 to 206.843 kPa |
| Comment | For Japan, no wireless communication | |
| 729JP 1M | kPa range, resolution | -82.73 to 1034.21 kPa |
| Comment | For Japan, 1 MPa range, no wireless communication | |
| 729JP 2M | kPa range, resolution | -82.73 to 2068.43 kPa |
| Comment | For Japan, 2 MPa range, no wireless communication | |
| 729JP 200K FC | kPa range, resolution | -82.737 to 206.843 kPa |
| Comment | For Japan, wireless communication for Fluke Connect | |
| 729JP 1M FC | kPa range, resolution | -82.73 to 1034.21 kPa |
| Comment | For Japan, wireless communication for Fluke Connect | |
| 729JP 2M FC | kPa range, resolution | -82.73 to 2068.43 kPa |
| Comment | For Japan, wireless communication for Fluke Connect | |
| Fluke 729 Series General Specifications | |
| mA measure, source and simulate | 0 mA to 24 mA |
| Volts dc measure | 0 V dc to 30 V dc |
| Resolution | |
| mA dc source, simulate and measure | 1 μA |
| Voltage dc measurement | 1 mV |
| Accuracy | 0.01% ±2 LSD all ranges (at 23 °C ±5 °C) |
| Stability | 20 ppm of full scale /°C from -10 °C to +18 °C and 28 °C to +50 °C |
| mA simulate external voltage requirement | 12 V dc to 30 V dc |
| Loop compliance voltage | 24 V dc @ 20 mA |
| mA simulate external voltage requirement | 12 V dc to 30 V dc |
| Temperature measurement only/100 Ω Pt(385) RTD | -50 °C to 150 °C (-58 °F to 302 °F) |
| Temperature resolution | 0.01 °C (0.01 °F) |
| Temperature accuracy | ±0.1 °C (0.2 °F) ±0.25 °C (±0.45 °F) combined uncertainty when using 720 RTD probe (optional accessory) |
| Drive capability | 1200 Ω without HART resistor, 950 Ω with internal HART resistor |
| Mechanical specification | |
| Size (HxWxL) | 7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in) |
| Weight | 6.5 lbs., 2.95 kg |
| Ingress protection | IP54 |
| Environmental specification | |
| Operating temperature | -10 °C to 50 °C for measurement, 0 °C to 50 °C for pressure control |
| Operating temperature with battery | -10 °C to 40 °C |
| Battery will only charge to 40 °C | |
| Storage temperature | -40 °C to 60 °C |
| Operating altitude | 3000 m |
| Storage altitude | 13000 m |
| Wireless (729 FC only) | |
| Radio frequency certification | FCC ID: T68-FBLE IC:6627A-FBLE |
| Wireless radio frequency range | 2412 MHz to 2462 MHz |
Tech Specs
Process / Calibration/Multifunction Calibrators Template |
|
|---|---|
| Type | Hand Held |
| Measure Voltage | Yes |
| Voltage Measurement Max | 30 V |
| Voltage Measurement Min | 0 V |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 24 mA |
| Current Measurement Min | 0 mA |
| Measure RTD | Yes |
| Pressure Measurement | Single Pressure Sensor |
| Pressure Modules Available | Yes |
| Hart Compatible | Yes |
| Data Log Functions | Current, Temperature, Voltage |
| Backlighted | Yes |
| Types RTD/Thermocouples Accepted | PT100 RTD |
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
| Max Pressure | 300 psi (300 hPa) |
| Gauge Pressure | Yes |
| Built in Pressue Pump | Yes |
| Backlight | Yes |
Test Equipment General Attributes |
|
| Unique Features | * Automatic pressure generation and regulation * Easily document the process using onboard test templates * Fluke Connect capable * Compatible with 700 Series and 750 Series pressure modules * Capable for light HART work . Kit adds DPCTRACK2 Software |
| Warranty | 3 YEARS |
| Product Height | 10.00 IN |
| Product Length | 13.00 IN |
| Product Width | 8.00 IN |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 10.00 IN |
| Shipping Length | 13.00 IN |
| Shipping Width | 8.00 IN |
