Feel the Heat!

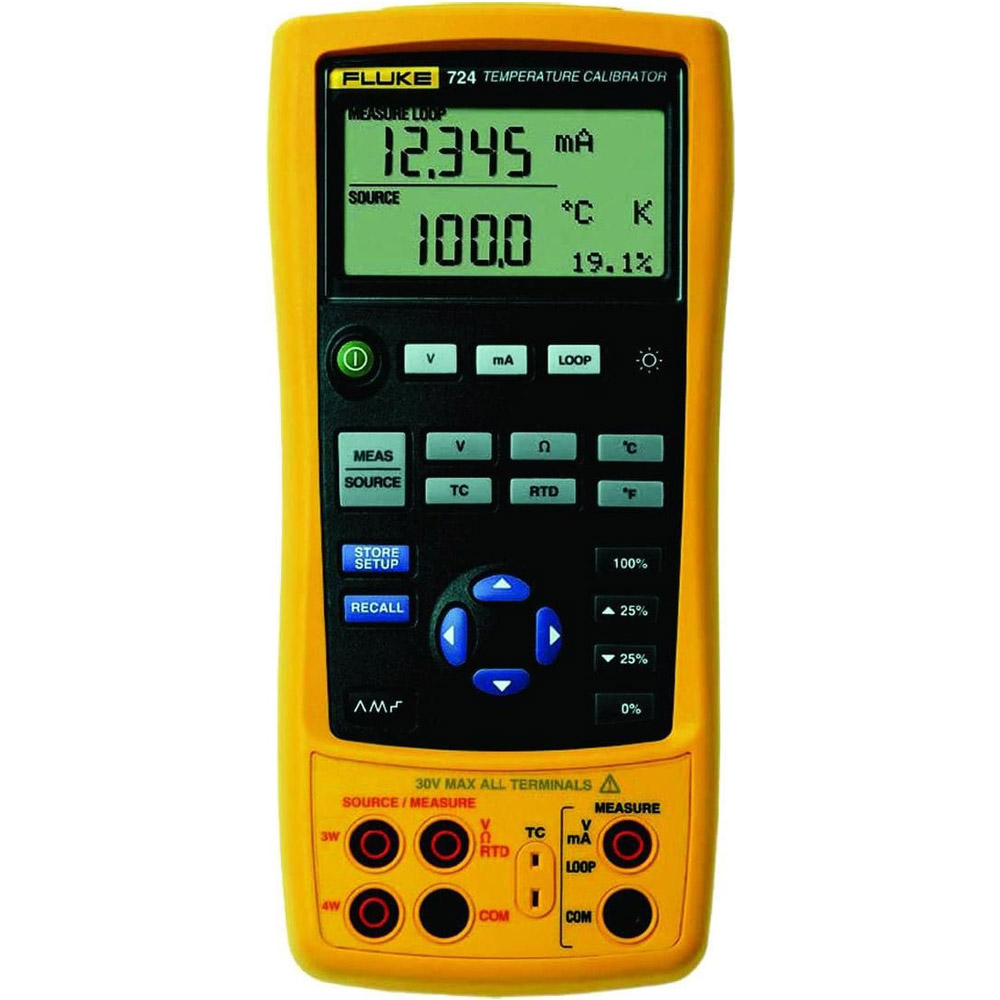

The new Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.
Built for the masters of temperature
The new Fluke 724: everything you need to troubleshoot and calibrate temperature.
- Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
- The Fluke 724 is the master’s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
- The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power.
- The dual line measure/source display lets you source temperature and view loop current at the same time
- With its simple, “no menus” controls, the Fluke 724 is easy to operate, too.
Manufacturer Specs
| Measurement Accuracy | |
| Voltage DC | |
| 30.000 V | 0.02%+ 2 counts (upper display) |
| 20.000 V | 0.02%+ 2 counts (lower display) |
| 100.00 mV | 0.02%+ 2 counts |
| -10.00 mV to 75.00 mV | 0.025 % + 1 count (via TC connector) |
| Current DC | |
| 24.000 mA | 0.02%+ 2 counts |
| Resistance | |
| 0.0 to 400.0 Ω | 0.1Ω (4-wire), 0.15Ω (2- and 3-wire) |
| 401 to 1500 Ω | 0.5Ω (4-wire), 1Ω (2- and 3-wire) |
| 1500 to 3200 Ω | 1Ω (4-wire), 1.5Ω (2- and 3-wire) |
| Source Accuracy | |
| Voltage DC | |
| 100.00 mV | 0.02%+2 counts |
| 10.000 V | 0.02%+2 counts |
| -10.00 mV to 75.00 mV | 0.025 % + 1 count (via TC connector) |
| Resistance | |
| 15.0 to 400.0 Ω | 0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA) |
| 401 to 1500 Ω | 0.5 Ω(excitation current 0.05 to 0.8 mA) |
| 1500 to 3200 Ω | 1 Ω(excitation current 0.05 to 0.4 mA) |
| RTDs and Thermocouples | |
| Measure Accuracy: | |
| NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: J: K: T: E: R: S: B: L: U: N: Resolution XK BP |
0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.8 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9°C J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F 0.6°C 1.2°C |
| Source Accuracy: | |
| NI-120 PT-100 (385) PT-100 (393) PT-100 (JIS) PT-200 (385) PT-500 (385) PT-1000 (385) Resolution: Note: J: K: T: E: R: S: B: L: U: N: Resolution XK BP |
0.2 °C 0.33 °C 0.3 °C 0.3 °C 0.2 °C 0.3 °C 0.2 °C 0.1 °C Accuracy stated for 4-wire measurement. 0.7 °C 0.8 °C 0.8 °C 0.7 °C 1.8 °C 1.5 °C 1.4 °C 0.7 °C 0.75 °C 0.9°C J, K, T, E, L, N, U: 0.1 °C, 0.1 °F B, R, S: 1 °C, 1 °F 0.6°C 1.2°C |
| Specifications | |
| Ramp Functions | |
| Source functions: | Voltage, current, resistance, frequency, temperature |
| Ramps | Slow ramp, Fast ramp, 25% step-ramp |
| Loop Power Function | |
| Voltage: | 24V |
| Accuracy: | 10% |
| Maximum current: | 22 mA, short circuit protected |
| Step Functions | |
| Source functions: | Voltage, current, resistance, frequency, temperature |
| Steps | 25% of range, 100% of range |
| Environmental Specifications | |
| Operating Temperature | -10ºC to 55ºC |
| Storage Temperature | -20ºC to 71ºC |
| Humidity (Without Condensation) | 90% 10ºC to 30ºC 75% 30ºC to 40ºC 45% 40ºC to 50ºC 35% 50ºC to 55ºC |
| Safety Specifications | |
| Safety Rating | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Mechanical & General Specifications | |
| Size | 96 x 200 x 47 mm |
| Weight | 650 g |
| Batteries | Four AA alkaline batteries |
| Warranty | Three years |
| Battery Life | 25 hours typical |
| Shock & Vibration | Random, 2G, 5-500 Hz |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Unique Features | The dual display lets you source temperature and view loop current at the same time. Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters. Execute remote tests with auto step and auto ramp. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 1.433 LBS |
| Product Height | 1.85 IN |
| Product Length | 7.87 IN |
| Product Width | 3.77 IN |
| Shipping Weight | 4 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| Shipping Height | 12 IN |
| Shipping Length | 5 IN |
| Shipping Width | 16 IN |
