Fluke 714B Temperature Calibrator, 17 Thermocouple Types/Millivolts

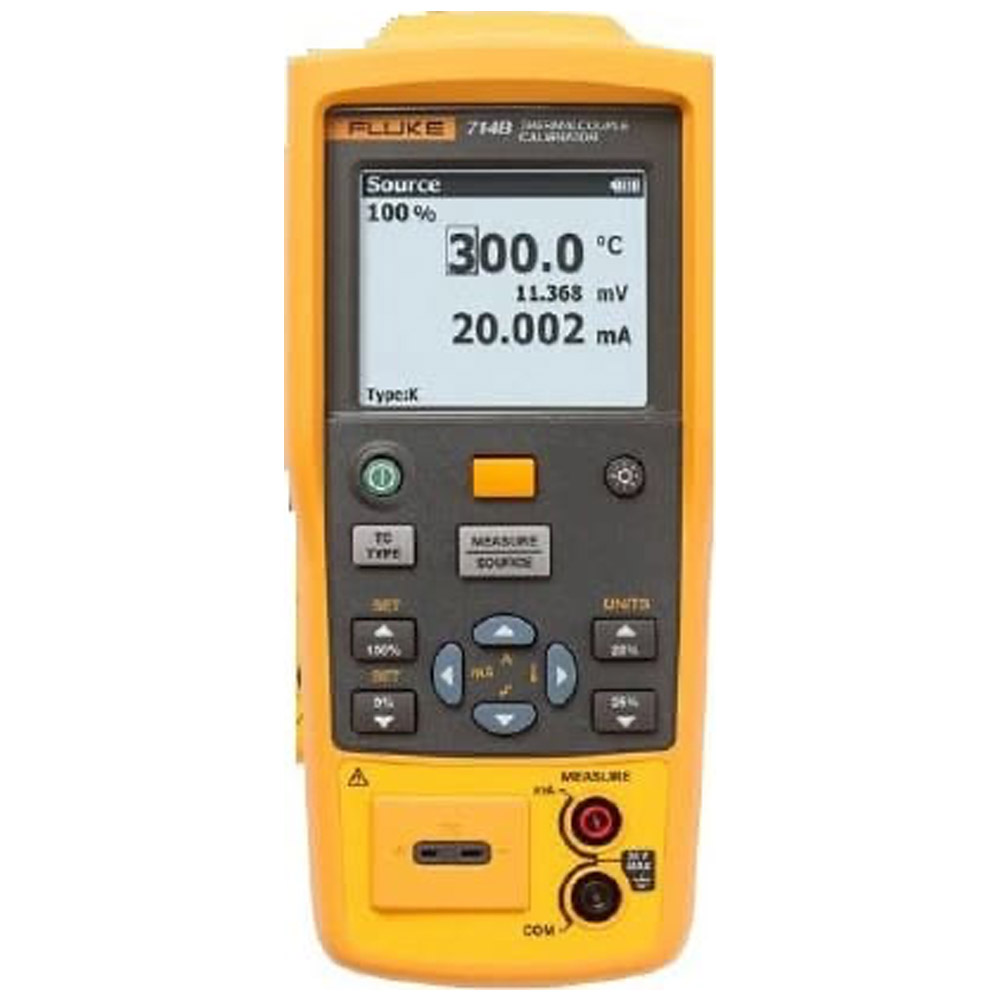

The Fluke 714B Thermocouple Calibrator is a handheld, battery-operated instrument that measures and sources a variety of thermocouples. It also has an isolated channel to measure 4-20 mA. For the temperature calibration professional that wants a highly accurate, easy-to-use, single function thermocouple temperature calibrator the Fluke 714B is the ideal test tool.
The 714B can measure and simulate (17) different thermocouple types and millivolts. Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal. Hanging tool designed in and included with every unit. Configurable 0 % and 100 % source settings for quick 25 % linearity checks. Linear ramp and 25 % step auto ramp based on 0 % and 100 % settings. Dual inputs and backlit display for easy interpretation of measurements. Power down settings remembered at power up for easy restart of tests. 1-year and 2-year specifications and traceable certificate of calibration.
Standard Equipment
|
Magnet Mounting with Hanging Strap
|
Measure Temperature with a Thermocouple
Connections for Simulating a Thermocouple
|
Replace the Batteries
|
Manufacturer Specs
| Fluke 714B General Specifications | |
| Maximum voltage applied between any terminal and earth ground or between any two terminals | 30 V |
| Operating temperature | -10 °C to 50 °C |
| Storage temperature | – 30 °C to 60 °C |
| Operating altitude | 2,000 meters |
| Storage altitude | 12,000 meters |
| Relative humidity (% RH operating without condensation) | Non condensing |
| 90% (10 °C to 30 °C) | |
| 75% (30 °C to 40 °C) | |
| 45% (40 °C to 50 °C) | |
| (Without condensation) | |
| Vibration requirements | MIL-T-28800E, Class 2 |
| Drop text requirements | 1 meter |
| IP Rating | IEC 60529: IP52 |
| Electromagnetic environment | IEC 61326-1, Portable |
| Safety | IEC 61010-1, Max 30 V to earth, Pollution Degree 2 |
| Power supply | 4 AA NEDA 1.5A IEC LR6 batteries |
| Size (H x W x L) | 52.5 mm x 84 mm x 188.5 mm |
| Weight | 515 g |
| DC mA Measurement | |
| Resolution | 0-24 mA |
| Range | 0.001 mA |
| Accuracy (% of reading + counts) | 0.010% + 2 µA |
| Temperature coefficient | ± (0.002% of reading + 0.002% of range) /°C ( <18 °C or >28 °C) |
| Millivolt Measurement and Source | |
| Resolution | -10 mV to 75 mV |
| Range | 0.01 mV |
| Accuracy (% of reading +counts) | 0.015% + 10 µA |
| Temperature coefficient | ± (0.002% of reading + 0.002% of range) /°C ( <18 °C or >28 °C) |
| Thermocouple Input and Output | |||||
| TC Type | Range (°C) | Measure (°C) | Source (°C) | ||
| 1 year | 2 year | 1 year | 2 year | ||
| E | -250 to 200 °C | 1.3 | 2.0 | 0.6 | 0.9 |
| -200 to -100 °C | 0.5 | 0.8 | 0.3 | 0.4 | |
| -100 to 600 °C | 0.3 | 0.4 | 0.3 | 0.4 | |
| 600 to 1000 °C | 0.4 | 0.6 | 0.2 | 0.3 | |
| N | -200 to -100 °C | 1.0 | 1.5 | 0.6 | 0.9 |
| -100 to 900 °C | 0.5 | 0.8 | 0.5 | 0.8 | |
| 900 to 1300 °C | 0.6 | 0.9 | 0.3 | 0.4 | |
| J | -210 to -100 °C | 0.6 | 0.9 | 0.3 | 0.4 |
| -100 to 800 °C | 0.3 | 0.4 | 0.2 | 0.3 | |
| 800 to 1200 °C | 0.5 | 0.8 | 0.3 | 0.3 | |
| K | -200 to -100 °C | 0.7 | 1.0 | 0.4 | 0.6 |
| -100 to 400 °C | 0.3 | 0.4 | 0.3 | 0.4 | |
| 400 to 1200 °C | 0.5 | 0.8 | 0.3 | 0.4 | |
| 1200 to 1372 °C | 0.7 | 1.0 | 0.3 | 0.4 | |
| T | -250 to -200 °C | 1.7 | 2.5 | 0.9 | 1.4 |
| -200 to 0 °C | 0.6 | 0.9 | 0.4 | 0.6 | |
| 0 to 400 °C | 0.3 | 0.4 | 0.3 | 0.4 | |
| B | 600 to 800 °C | 1.3 | 2.0 | 1.0 | 1.5 |
| 800 to 1000 °C | 1.0 | 1.5 | 0.8 | 1.2 | |
| 1000 to 1820 °C | 0.9 | 1.3 | 0.8 | 1.2 | |
| R | -20 to 0 °C | 2.3 | 2.8 | 1.2 | 1.8 |
| 0 to 100 °C | 1.5 | 2.2 | 1.1 | 1.7 | |
| 100 to 1767 °C | 1.0 | 1.5 | 0.9 | 1.4 | |
| S | -20 to 0 °C | 2.3 | 2.8 | 1.2 | 1.8 |
| 0 to 200 °C | 1.5 | 2.1 | 1.1 | 1.7 | |
| 200 to 1400 °C | 0.9 | 1.4 | 0.9 | 1.4 | |
| 1400 to 1767 °C | 1.1 | 1.7 | 1.0 | 1.5 | |
| C | 0 to 800 °C | 0.6 | 0.9 | 0.6 | 0.9 |
| 800 to 1200 °C | 0.8 | 1.2 | 0.7 | 1.0 | |
| 1200 to 1800 °C | 1.1 | 1.6 | 0.9 | 1.4 | |
| 1800 to 2316 °C | 2.0 | 3.0 | 1.3 | 2.0 | |
| L | -200 to -100 °C | 0.6 | 0.9 | 0.3 | 0.4 |
| -100 to 800 °C | 0.3 | 0.4 | 0.2 | 0.3 | |
| 800 to 900 °C | 0.5 | 0.8 | 0.2 | 0.3 | |
| U | -200 to 0 °C | 0.6 | 0.9 | 0.4 | 0.6 |
| 0 to 600 °C | 0.3 | 0.4 | 0.3 | 0.4 | |
| BP | 0 to 1000 °C | 1.0 | 1.5 | 0.4 | 0.6 |
| 1000 to 2000 °C | 1.6 | 2.4 | 0.6 | 0.9 | |
| 2000 to 2500 °C | 2.0 | 3.0 | 0.8 | 1.2 | |
| XK | -200 to 300 °C | 0.2 | 0.3 | 0.2 | 0.5 |
| 300 to 800 °C | 0.4 | 0.6 | 0.3 | 0.6 | |
| G | 100 to 300 °C | 1.6 | 2.4 | 1.2 | 1.8 |
| 300 to 1500 °C | 1.0 | 1.5 | 1.0 | 1.5 | |
| 1500 to 2320 °C | 2.0 | 3.0 | 1.6 | 2.4 | |
| D | 0 to 300 °C | 1.6 | 2.4 | 1.2 | 1.8 |
| 300 to 1500 °C | 1.0 | 1.5 | 1.0 | 1.5 | |
| 1500 to 2315 °C | 2.0 | 3.0 | 1.6 | 2.4 | |
| P | 0 to 1000 °C | 1.6 | 2.4 | 0.6 | 0.9 |
| 1000 to 1395 °C | 2.0 | 3.0 | 0.8 | 1.2 | |
| M | -50 to 100 °C | 1.0 | 1.5 | 0.4 | 0.6 |
| 100 to 1000 °C | 1.6 | 2.4 | 0.6 | 0.9 | |
| 1000 to 1410 °C | 2.0 | 3.0 | 0.8 | 1.2 | |
Tech Specs
Process / Calibration/Temperature Calibration/Thermocouple Calibrators Template |
|
|---|---|
| Type | Hand Held |
| Measure Inputs | Yes |
| Source Outputs | Yes |
| Display (Thermocouple Calibrators) | Digital |
| Thermocouple Selection | B, C, D, E, G, J, K, L, N, Other, P, R, S, T, U |
| T/C Measurement Accuracy | ± (0.002 % of reading + 0.002 % of range) /°C ( <1 |
| T/C Source Accuracy | ± (0.002 % of reading + 0.002 % of range) /°C ( <1 |
| T/C Measurement Resolution | 0.01 mV 0.015 % + 10 μA |
| T/C Source Resolution | 0.001 mA 0.010 % + 2 μA |
| Measure RTD | Yes |
| Measure Frequency | No |
| Measure Resistance | No |
| Measure Voltage | Yes |
| Measure Current | Yes |
| Measure Thermistor | No |
| Programable | No |
| Min/Max Memory | No |
| Pulse Excitation Compatible | No |
| Auto Step/Ramp | No |
| Backlit Display | No |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Unique Features | The 714B can measure and simulate (17) different thermocouple types and millivolts Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal Hanging tool designed in and included with every unit Configurable 0 % and 100 % source settings for quick 25 % linearity checks Linear ramp and 25 % step auto ramp based on 0 % and 100 % settings Dual inputs and backlit display for easy interpretation of measurements Power down settings remembered at power up for easy restart of tests 1-year and 2-year specifications and traceable certification of calibration |
| Warranty | 1 YEARS |
| IP Rating | IP52 |
| Product Weight | 2.03 LBS |
| Product Height | 2.56 IN |
| Product Length | 9.65 IN |
| Product Width | 7.09 IN |
| Shipping Weight | 3 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 9 IN |
| UPC | 095969050685 |
| Shipping Length | 8 IN |
| Shipping Width | 12 IN |
