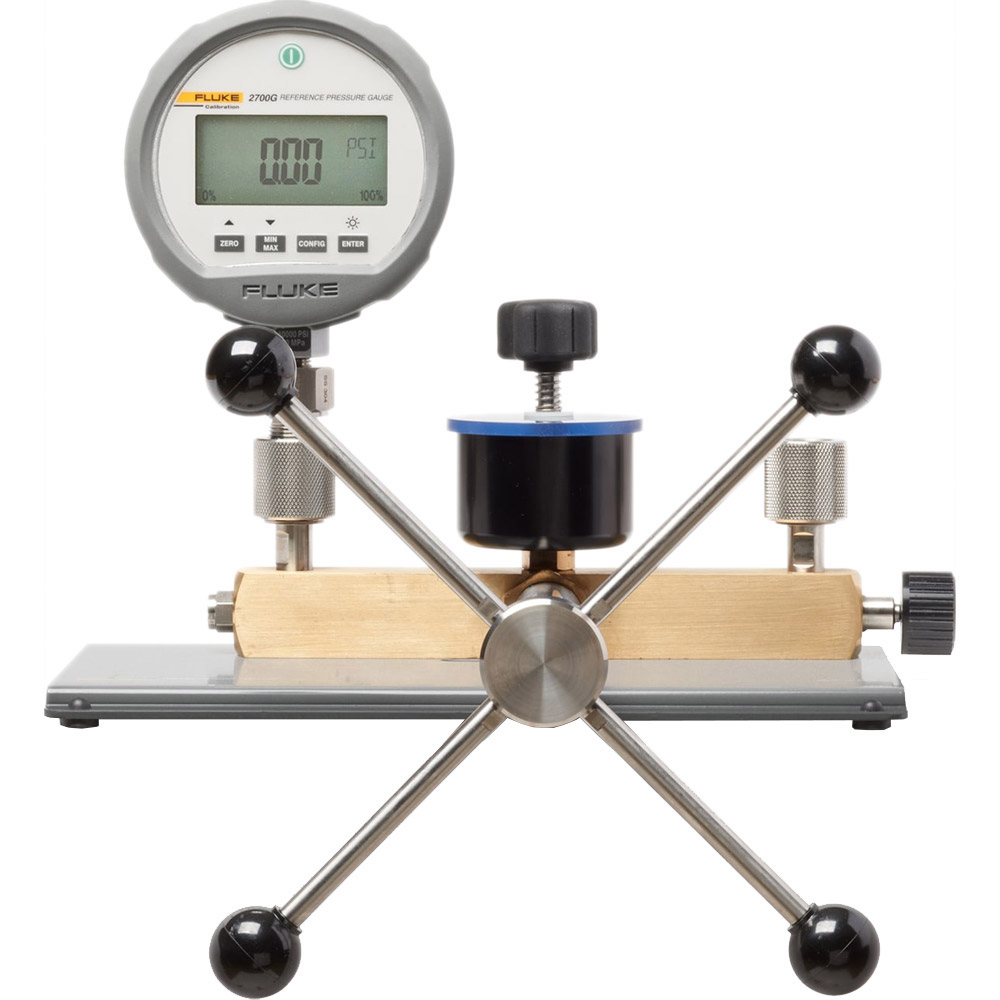

Fluke P5514B-2700G-3/C – Hydraulic Calibrator, 70 MPa, 3 Gauges, Accredited
- Hydraulic Calibrator, 70 MPa, 3 Gauges, Accredited
- Vernier fine adjustment control enables cardinal point calibrations
- Improved test port connectors adapters: included for common sizes of NPT and BSP
- Use on the bench or in the field
A pressure comparator or hydraulic test pump supplies the same precisely controlled pressure to both a reference gauge and device under test for calibration. Fluke Calibration hydraulic test pumps are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These cost-effective instruments, which include several features from our popular line of hydraulic deadweight testers, are capable of easily generating high pressures and often include a Vernier for precise control for important calibration requirements.
Make it a pressure calibrator
The Fluke Calibration P5514B Pressure Comparator, when combined with the 2700G Reference Pressure Gauges, becomes an easy-to-use alternative to traditional deadweight testers that covers a wide range of workload. For convenience, the P5514B is bundled together with selected 2700G Reference Pressure Gauges for a complete bench top pressure calibration solution. These pressure calibrators provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.
For example, the P5514B-2700G-3 is a P5514B Pressure Comparator, bundled together with 2700G-G70M, 2700G-G20M, 2700G-BG7M. This calibrator has three pressure ranges corresponding to the three 2700G Reference Pressure Gauges in the bundle and covers a total pressure range of -12 psi to 10 000 psi (-80 kPa to 70 MPa).
Manufacturer Specs
| Fluke P5514B-2700G-3/C Specifications | |
| P5514B Hydraulic Pressure Comparator | |
| Pressure Range | 0 to 10,000 psi (700 bar) |
| Test Port Adapters | 1/4 NPT (Qty 2), 1 each of 1/2 NPT, 1/4 BSP and 1/2 BSP |
| Instrument Size (W x D x H) | 11 x 11 x 10 in (280 x 280 x 254 mm) |
| Instrument Weight | 11 lb (5 kg) |
| Reservoir Volume | 75 cc |
| Screw Press Displacement | 20 cc |
| Fluid Media | The standard O-ring seals are Viton. Ethylene Propylene seals are available for use with solvents, fuel oils, brake fluids or other similar aggressive fluids. P5514B-70M: Viton Seals P5514B-70M-EP: Ethylene Propylene Seals |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Shipping Weight | 31.00 LBS |
| HTS/Schedule B Number | 8481.30.1090 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
