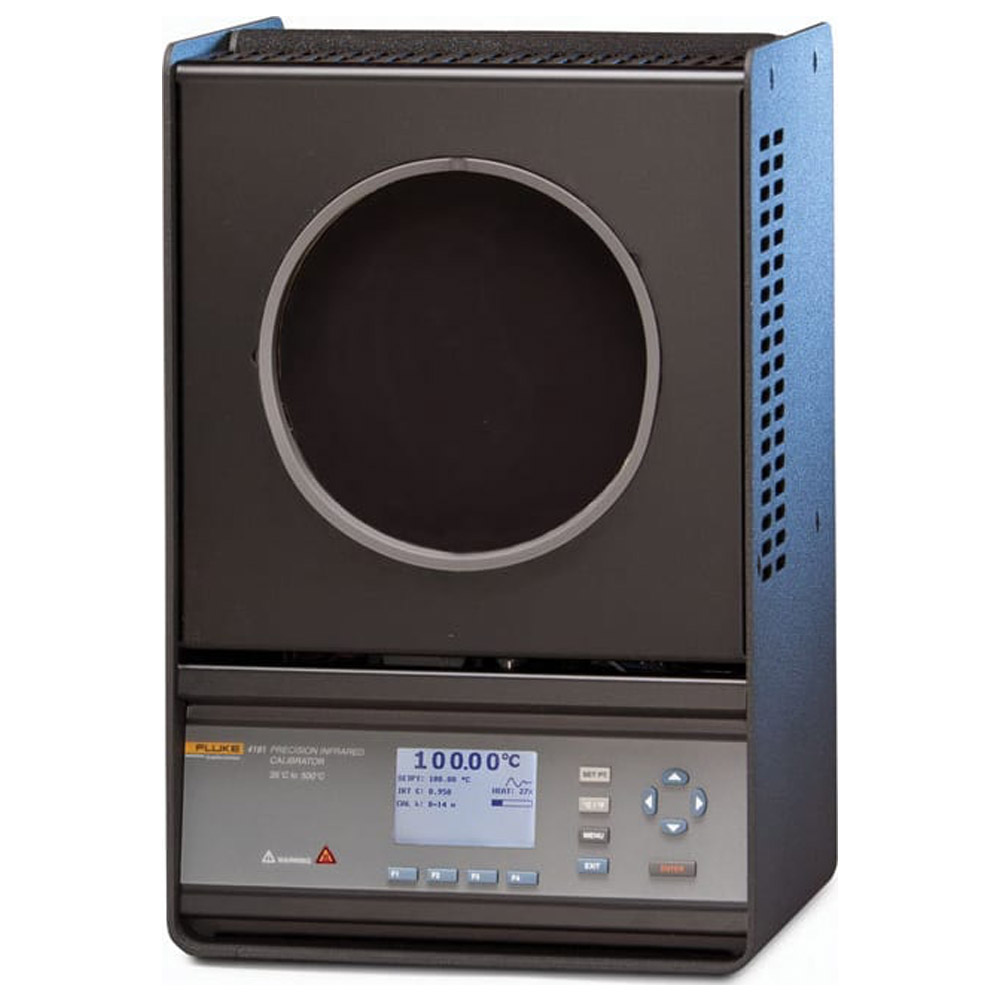

Fluke 4181-156 Precision Infrared Calibrator, 152 MM (6IN), 35 TO 500C, 115V
Accuracy and traceability for infrared measurements
Now it’s easy to increase your IR temperature measurement accuracy with the new 4180/ 81 Precision Infrared Calibrators from Fluke Calibration. These infrared temperature calibrators give more consistent, accurate and reliable calibrations because emissivity is radiometrically calibrated, and the target size minimizes size of source effect errors. In addition, these infrared calibrators simplify calibration because they uniquely compensate for errors caused by thermometer emissivity settings.
The 4180 Series of Precision Infrared Calibrators for infrared thermometers and thermal imagers is fast, accurate, and easy to use. It comes with an accredited calibration from one of the world’s most trusted temperature calibration laboratories, sample calibration procedures for Fluke thermometers built right in and everything you need to get started making high-quality infrared thermometer calibrations. This is the perfect solution for any infrared thermometer or thermal imager within its temperature range.
The 4180 Infrared Temperature Calibrator reaches temperatures from –15 °C to 120 °C and the 4181 Infrared Temperature Calibrator has a temperature range from 35 °C to 500 °C. Uniformity is important in infrared temperature calibration work because an infrared thermometer will “see” as much as the entire target when placed at the appropriate calibration distance.
In addition, with accuracies as good as ± 0.35 °C the 4180 Series can meet its specifications without additional emissivity-related corrections, leading to legitimate test uncertainty ratios (TUR) as good as 4:1.
Emissivity, blackbodies and graybodies
Most people associate a blackbody calibration source with calibrating infrared thermometers. Although the word blackbody specifically refers to an ideal surface that emits and absorbs electromagnetic radiation with the maximum amount of power possible at a given temperature, many calibrators with non-ideal surfaces are also referred to as «blackbody calibrators.» While an ideal surface would have an emissivity equal to 1.00, many of these «blackbody calibrators» have an emissivity of approximately 0.95 (better described as a “graybody”). A true blackbody calibration source would usually be a long cavity with a narrow opening. Unfortunately the opening is usually too narrow to be useful for calibrating common infrared thermometers which require a large target size for an accurate calibration. The advantage of a true blackbody calibration source is that the emissivity is precisely known. Whereas traditional flat plate calibrators have emissivities with uncertainties too large for meaningful calibrations of most thermometers. That is why the 418X Precision Infrared Thermometers are radiometrically calibrated to correct for uncertainties caused by emissivity and heat loss at the surface of the «blackbody» calibration source.
Manufacturer Specs
| Specifications | ||
| 4180 | 4181 | |
| Temperature range (@ 23 °C ambient, 0.95 emissivity) | –15 °C to 120 °C | 35 °C to 500 °C |
| Display accuracy1 | ± 0.40 °C at –15 °C ± 0.40 °C at 0 °C ± 0.50 °C at 50 °C ± 0.50 °C at 100 °C ± 0.55 °C at 120 °C |
± 0.35 °C at 35 °C ± 0.50 °C at 100 °C ± 0.70 °C at 200 °C ± 1.20 °C at 350 °C ± 1.60 °C at 500 °C |
| Stability | ± 0.10 °C at –15 °C ± 0.05 °C at 0 °C ± 0.10 °C at 120 °C |
± 0.05 °C at 35 °C ± 0.20 °C at 200 °C ± 0.40 °C at 500 °C |
| Uniformity (5.0 in dia of center of target)2 | ± 0.15 °C at –15 °C ± 0.10 °C at 0 °C ± 0.25 °C at 120 °C |
± 0.10 °C at 35 °C ± 0.50 °C at 250 °C ± 1.00 °C at 500 °C |
| Uniformity (2.0 in dia of center of target)2 | ± 0.10 °C at -15 °C ± 0.10 °C at 0 °C ± 0.20 °C at 120 °C |
± 0.10 °C at 35 °C ± 0.25 °C at 250 °C ± 0.50 °C at 500 °C |
| Heating time | 15 min: –15 °C to 120 °C 14 min: 23 °C to 120 °C |
20 min: 35 °C to 500 °C |
| Cooling time | 15 min: 120 °C to 23 °C 20 min: 23 °C to –15 °C |
100 min: 500 °C to 35 °C 40 min: 500 °C to 100 °C |
| Stabilization time | 10 minutes | |
| Nominal emissivity3 | 0.95 | |
| Thermometer emissivity compensation | 0.9 to 1.0 | |
| Target diameter | 0152.4 mm (6 in) | |
| Computer interface | RS-232 | |
| Power | 15 V ac (± 10%), 6.3 A, 50/60 Hz, 630 W 230 V ac (± 10%), 3.15 A, 50/60 Hz, 630 W |
115 V ac (± 10%), 10 A, 50/60 Hz, 1000 W 230 V ac (± 10%), 5 A, 50/60 Hz, 1000 W |
| Fuse(s) | 115 V ac 6.3 A, 250 V, slow blow 230 V ac 3.15 A, 250 V, T |
115 V ac 10 A, 250 V, fast blow 230 V ac 5 A, 250 V, F |
| Size (HxWxD) | 356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in) |
356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in) |
| Weight | 9.1 kg (20 lb) | 9.5 kg (21 lb) |
| Safety | EN 61010-1:2001, CAN/CSA C22.2 No. 61010.1-04 | |
| 1For 8 µm to 14 µm spectral band thermometers with emissivity set between 0.9 and 1.0 2The uniformity specification refers to how IR thermometers with different spot sizes both focused at the center of the targer will measure the same temperature. 3The target has a nominal emissivity of 0.95, however it is radiometrically calibrated to minimize emissivity related uncertainties. |
||
Tech Specs
Process / Calibration/Temperature Calibration/Infrared Calibrators / Blackbodies Template |
|
|---|---|
| Style (Infrared Calibrators) | Bench Top |
| Max Temperature | 500 C |
| Accuracy | ± 0.35 °C at 35 °C ± 0.50 °C at 100 °C ± 0.70 °C at 200 °C ± 1.20 °C at 350 °C ± 1.60 °C at 500 °C |
| Stability | See note |
| Stabilization Time | 10 MIN |
| Digital Display (Infrared Calibrators) | Yes |
| RTD Reference Temperature | Yes |
| Fixed Emissivity | Yes |
| Spot Diameter | 6 IN (25.40 MM) |
| Heating Time | 20 MIN |
| Cooling Time | 100 MIN |
| Programmable | Yes |
Test Equipment General Attributes |
|
| Unique Features | Rapid heating and cooling RS-232 interface capability Temperature scan rate control Eight set-point memory Adjustable readout in °C or °F Adjustable Emissivity |
| Warranty | 1 YEARS |
| Safety Approval | CSA |
| Interfaces I/O | Analog Output, IR, RS-232, Analog Input |
| Product Weight | 21 LBS |
| Product Height | 14 IN |
| Product Length | 8.5 IN |
| Product Width | 9.5 IN |
| Shipping Weight | 30 LBS |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | United States |
| Shipping Height | 19 IN |
| UPC | 095969441124 |
| Shipping Length | 24 IN |
| Shipping Width | 19 IN |
