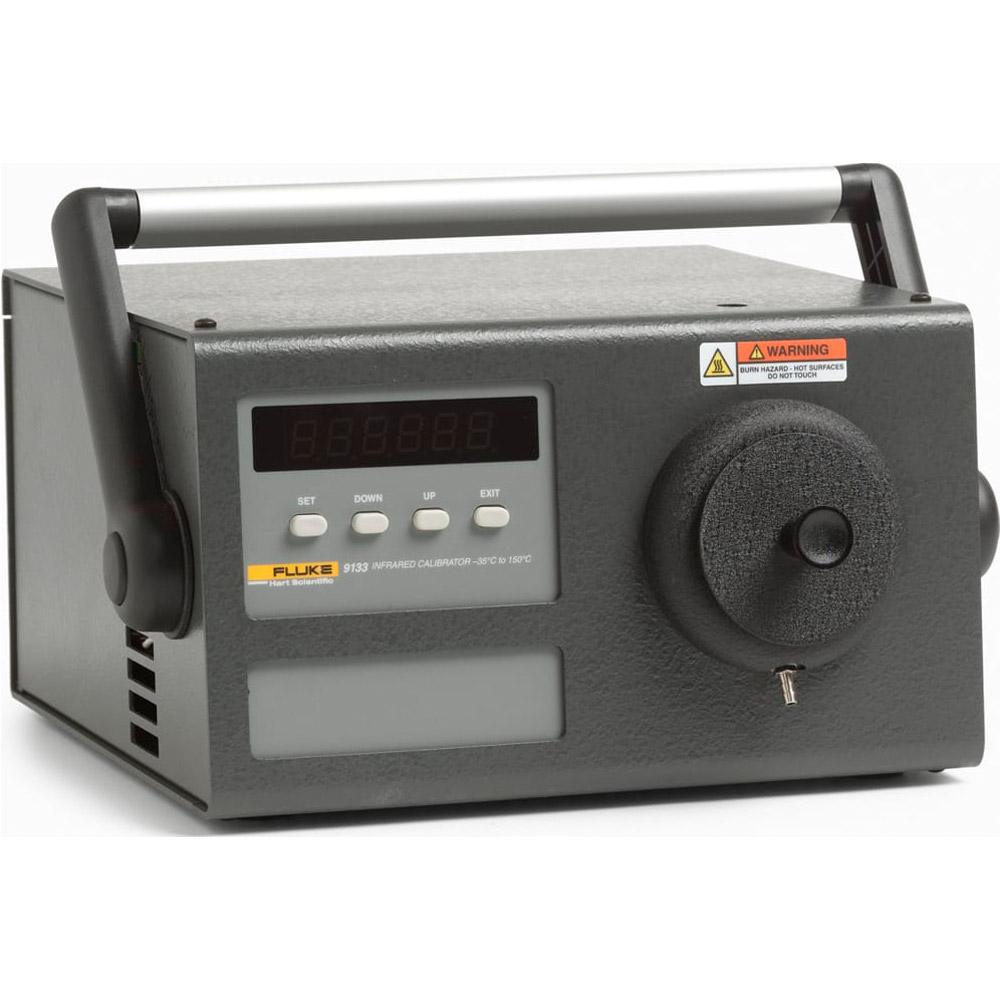

Fluke 9133-156 Portable IR Calibrator, –30 to 150 °C
Precision when you need it for infrared temperature calibration
Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.
These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact calibration.
9133: blackbody calibration from -30 °C to 150 °C
If you’re calibrating IR thermometers at cold temperatures, you’ll love our new 9133 blackbody calibration source. With solid-state cooling technology, this new IR calibrator reaches –30°C (22°F) in normal ambient conditions. With a conveniently located dry gas fitting on the front bezel, ice build up on the target can be avoided. At the upper end of its range, the 9133 provides stable temperatures to 160°C (320°F).
With heating and cooling times of about 15 minutes from ambient to either extreme, the 9133 gets you to temperature quickly and performs when it gets there.
Manufacturer Specs
| Specifications | ||
| 9133 | 9132 | |
| Temperature range | –30 °C to 150 °C at 23 °C ambient (–22 °F to 302 °F at 73 °F ambient) |
50 °C to 500 °C (122°F to 932°F) |
| Accuracy | ± 0.4 °°C (± 0.72 °F) | ± 0.5 °C at 100 °C (± 0.9°F at 212°F) ± 0.8 °C at 500 °C (± 1.4 °F at 932 °F) |
| Stability | ± 0.1 °C (± 0.18 °F) | ± 0.1°C at 100°C (± 0.18°F at 212°F) ± 0.3°C at 500°C (± 0.54°F at 932°F) |
| Target Size | 57 mm (2.25 in) | |
| Target Emissivity | 0.95 (± 0.02 from 8 to 14 mm) | |
| Resolution | 0.1 ° | |
| Heating Time | 15 minutes (25 °C to 150 °C) | 30 minutes (50 °C to 500 °C) |
| Cooling Time | 15 minutes (25 °C to –20 °C) | 30 minutes (500 °C to 100 °C) |
| Computer Interface3 | RS-232 I/O included with 9930 Interface-it software | |
| Power | 115 V ac (± 10 %), 1.5 A, or 230 V ac (± 10 %), 1.0 A, switchable, 50/60 Hz, 200 W |
115 V ac (± 10 %), 3 A or 230 V ac (± 10 %), 1.5 A, switchable, 50/60 Hz, 340 W |
| Size (HxWxD) | 152 x 286 x 267 mm (6 x 11.25 x 10.5 in) |
102 x 152 x 178 mm (4 x 6 x 7 in ) |
| NIST-Traceable Contact Calibration | Data at –30°C, 0°C, 25°C, 75°C, 100°C, 125°C, and 150°C |
Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C |
Tech Specs
Process / Calibration/Temperature Calibration/Infrared Calibrators / Blackbodies Template |
|
|---|---|
| Style (Infrared Calibrators) | Bench Top |
| Max Temperature | 150 C |
| Digital Display (Infrared Calibrators) | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Product Height | 10.50 IN |
| Product Length | 16.00 IN |
| Product Width | 12.50 IN |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
| Shipping Height | 10.50 IN |
| Shipping Length | 16.00 IN |
| Shipping Width | 12.50 IN |
