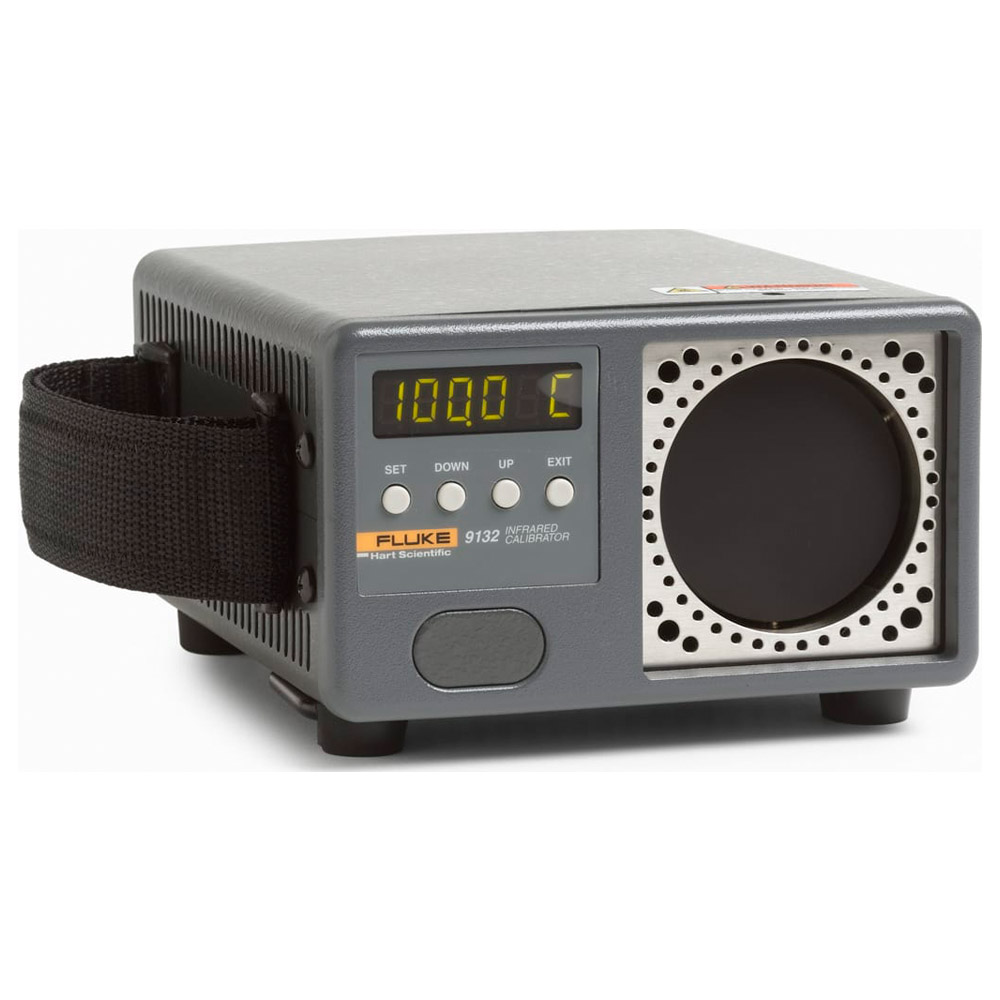

Fluke 9132-156 Portable IR Calibrator, 50 to 500 °C
Precision when you need it for infrared temperature calibration
Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30 °C to 500 °C.
These blackbody calibrator units feature a temperature controlled measurement surface with a diameter of 2.25 in (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30 °C to 500 °C and a well is located directly behind the blackbody surface for contact calibration.
9132: blackbody calibration up to 500 °C
For IR calibrations above normal ambient, the 9132 blackbody calibration source provides a stable measurement surface up to 500 °C (932 °F). Short heating and cooling times mean you won’t have to wait long to get your work done.
Manufacturer Specs
| Specifications | ||
| 9133 | 9132 | |
| Temperature range | –30 °C to 150 °C at 23 °C ambient (–22 °F to 302 °F at 73 °F ambient) |
50 °C to 500 °C (122°F to 932°F) |
| Accuracy | ± 0.4 °°C (± 0.72 °F) | ± 0.5 °C at 100 °C (± 0.9°F at 212°F) ± 0.8 °C at 500 °C (± 1.4 °F at 932 °F) |
| Stability | ± 0.1 °C (± 0.18 °F) | ± 0.1°C at 100°C (± 0.18°F at 212°F) ± 0.3°C at 500°C (± 0.54°F at 932°F) |
| Target Size | 57 mm (2.25 in) | |
| Target Emissivity | 0.95 (± 0.02 from 8 to 14 mm) | |
| Resolution | 0.1 ° | |
| Heating Time | 15 minutes (25 °C to 150 °C) | 30 minutes (50 °C to 500 °C) |
| Cooling Time | 15 minutes (25 °C to –20 °C) | 30 minutes (500 °C to 100 °C) |
| Computer Interface3 | RS-232 I/O included with 9930 Interface-it software | |
| Power | 115 V ac (± 10 %), 1.5 A, or 230 V ac (± 10 %), 1.0 A, switchable, 50/60 Hz, 200 W |
115 V ac (± 10 %), 3 A or 230 V ac (± 10 %), 1.5 A, switchable, 50/60 Hz, 340 W |
| Size (HxWxD) | 152 x 286 x 267 mm (6 x 11.25 x 10.5 in) |
102 x 152 x 178 mm (4 x 6 x 7 in ) |
| NIST-Traceable Contact Calibration | Data at –30°C, 0°C, 25°C, 75°C, 100°C, 125°C, and 150°C |
Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C |
Tech Specs
Process / Calibration/Temperature Calibration/Infrared Calibrators / Blackbodies Template |
|
|---|---|
| Style (Infrared Calibrators) | Bench Top |
| Max Temperature | 500 C |
| Digital Display (Infrared Calibrators) | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Product Height | 6.50 IN |
| Product Length | 15.00 IN |
| Product Width | 11.25 IN |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
| Shipping Height | 6.50 IN |
| Shipping Length | 15.00 IN |
| Shipping Width | 11.25 IN |
