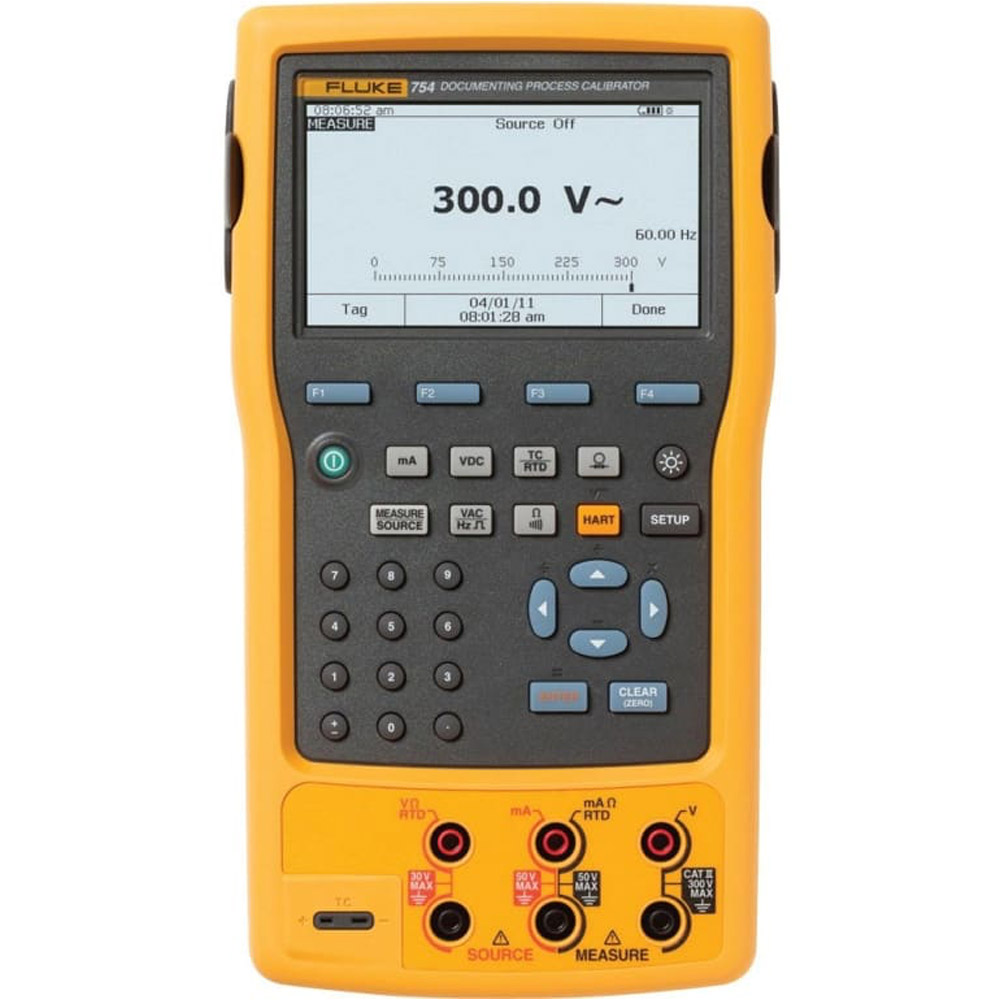

Calibrador y documentador de procesos Fluke 754/750SW BU Fluke 754 DPC AND 750SW DPCTRACK2 Bundle Package

• DPCTrack Explorer
• User-Defined Labels and Variables
• Keep on Schedule and End of Month scheduling
• More Reports
• Equipment/Loops
• Advanced Query Capability
• Set Required Fields
• Multiple Test Point ranges

The 754 is everything you needed and wished for in the 744 and more! HART communication capability is combined to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.

The 754 does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You’ll fall in love with the new improved graphical screen, Li-on battery for longer life, USB port and new accessories to complete the package.

Capability	753	754
Source/measure	●	●
Automated procedures	●	●
Results capture	●	●
Uses all Fluke pressure modules	●	●
Transmitter mode	●	●

Capability	753	754
Serial interface	●	●
Data logging	●	●
HART communications		●
Pulsed RTD simulation to 1 ms	●	●
Li-ion battery with «Gas Gauge»	●	●



The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 375 HART communicator.

• Requires no external box or second tool for everyday HART calibration and maintenance
• Offers fast HART communication
• Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator
• Works with multiple masters, burst mode, and multi-drop configurations.
• Is easy to update as additional instruments are added and new HART versions are released
• Interrogate to determine device type, manufacturer, model, tag.
• Reconfigure the sensor mapping of dual sensor temperature transmitters.
• Read HART PV function and smart transmitter digital output while measuring analog mA output.
• Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.
• Re-label smart transmitters by reading and writing to the HART tag field.

The 754 supports the commands contained in HART protocol Version 5.7. With 2 MB of memory, the 754 supports a substantial set of HART instructions:

• Universal commands provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span.
• Common practice commands provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test.
• Device-specific commands provide functions that are unique to a particular field device, for example sensor trim.

HART Operating Modes Supported

• Point to Point operation , the most commonly used mode, connects the 754 to a single HART device in a 4-20 mA loop
• In Multi-Drop mode , several HART instruments can be bussed together. The 754 searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.
• In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. The 754 can take transmitters out of burst mode during test or calibration, then later restore them to burst mode.

Pressure Modules

Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.

• Display pressure readings in any of 10 different pressure units you specify in the calibrator setup
• Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
• Features internal temperature compensation from 0º to 50º C for full accuracy performance
• Includes NIST-traceable calibration certificate.
• Modules can be calibrated locally, helping to control costs.

A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 — 1 in H20 (0 — .25kPa) and go to 0 — 10,000 psi (0 — 70,000 kPa)

Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 750 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.

Custom Units

Enable you to map one unit to another, such as mV to ºC or ºF. Allows you to use the Fluke 750 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.

User-entered Values

Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.

Limit Switch Calibration

Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.

Differential Pressure Flow Instrument Calibration

Routines use a square root function to directly calibrate DP flow instruments.

Additional Features

Multifunctional

Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool.

Powerful, yet easy to use

The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations.

Records and documents results

To support your ISO-9000 or regulatory standards the Fluke 754 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The USB interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them.

Truly hand-held

Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable Li-ion battery pack.

Rugged and reliable

Count on Fluke’s rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments.

Bright white display

Lets you read your results in any kind of light. Backlight has three (3) settings.

Soft keys

Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

Three operating modes

Measure, Source, or simultaneous Measure/Source, – enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool.

Multi-lingual interface

Displays instructions in English, French, German, Spanish, and Italian.

Built-in algebraic calculator

With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There’s no need to carry a pencil and paper or a separate calculator.

Programmable measurement delay

Inside automated procedures permits calibrating instruments that respond slowly.

The 753, 754 and 743,744 work with the Fluke DPC/TRACK2™ software, and with popular programs from Honeywell Meridium, Emerson, Cornerstone, Yokogawa, Prime Technologies, Intergraph and others. The program allows you to create procedures, instructions, and action lists to deliver fast, easy documentation.

The scheduling of calibrations, creation of procedures and documentation of your calibration results are facilitated by a number of instrumentation management software packages.

Fluke 750SW DPC/TRACK2™ software includes an instrumentation data-base that makes it easy to manage your instrumentation, create and schedule tests, load and unload the 753 or 754 and 743, 744, print a variety of standard reports, and manage calibration data. Print standard reports automatically. The software assembles pre-formatted reports from your database files, saving time and reducing errors. Reports include calibration certificates, instruments due for calibration, inventory characteristics, calibration histories, calibration procedures, and traceability to instruments touched.
