Calibrador y documentador de procesos Fluke 754 – HART

• Best in Class Accuracy Rating
• Large Easy to Read Display
• USB Connectivity
• HART Connectivity
• Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms

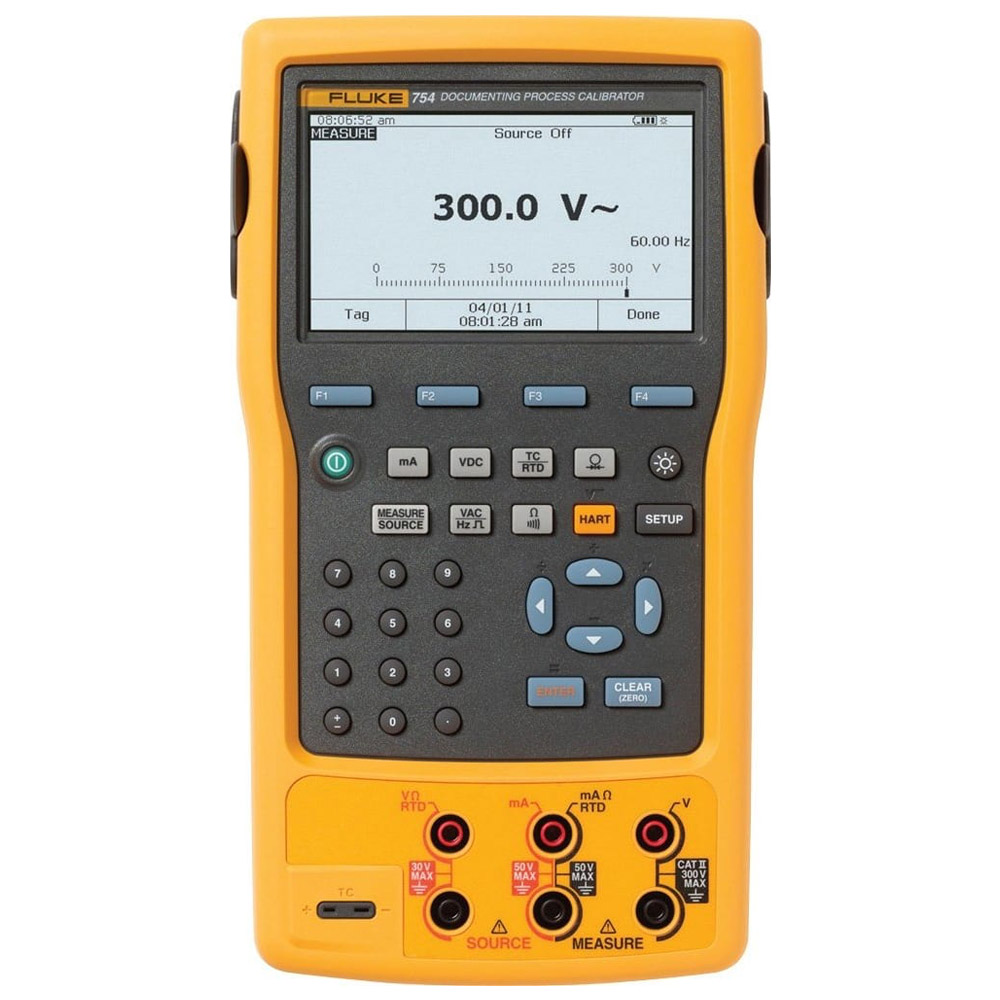

Introducing the Fluke 754 Documenting Process Calibrator with HART communication capability. Fluke has designed the 754 to withstand the trial of everyday use with a rugged exterior shell. It is the perfect tool for calibration, maintenance, and troubleshooting HART and other instruments.

The Fluke 754 is designed to be an all-in-one tool. Its small size packs several important tools including sourcing, simulating pressure, measuring pressure, temperature, and electrical signals. Even with all of these tools, the 754 manages to keep a user-friendly interface and an easy-to-read large screen. The lithium-ion battery provides longer life and a USB connection provides PC connectivity.

Capability	753	754
Source/measure	●	●
Automated procedures	●	●
Results capture	●	●
Uses all Fluke pressure modules	●	●
Transmitter mode	●	●



Capability	753	754
Serial interface	●	●
Data logging	●	●
HART communications		●
Pulsed RTD simulation to 1 ms	●	●
Li-ion battery with «Gas Gauge»	●	●



The Fluke 754 is built to work in a variety of applications. It works with Fluke software and an assortment of other platforms including Emerson, Honeywell, Cornerstone, Yokogawa, Prime Technologies, and Intergraph. The 754 is simple to use and makes it easy to create procedures, instructions, and action lists to deliver quickly with simple documentation.

• No required external box or secondary tool for HART calibration or maintenance
• Fast HART communications
• Supports popular models of HART transmitters
• More device-specific command support than any other HART field calibrator
• Works with multiple masters, burst mode, and multi-drop configurations.
• Is easy to update as additional instruments are added
• Interrogate to determine device type, manufacturer, model, tag.
• Reconfigure the sensor mapping of dual-sensor temperature transmitters.
• Read HART PV function and smart transmitter while measuring analog mA output.
• Read and write HART configuration functions to make field adjustments
• Re-label smart transmitters by reading and writing to the HART tag field.

Automated Procedures

Setting up automated calibration procedures with the Fluke 754 is simple. They can be used in a variety of applications including linear transmitters, DP flow transmitters, and one & two point limit switches. After set up, the 754 will perform the necessary tests and calculate any errors. Users can then easily view final results and quickly locate out of tolerance points.

Custom Units

Gives users the ability to map one unit of measurement to another such as mV to ºC or ºF. This allows the 754 to be used with accessories that output in mV and still properly document th test using an unsupported unit of measurement including parts per million or rpm.



User-entered Values

Give users the ability to record results from external measurements devices such as a panel meter. This allows for comprehenssive data recording.

Limit Switch Calibration

Limit switch calibration is simple and fast with the 754’s automated procedures. Procedures can be used for either one or two point switches and measure voltage, current, pressure and temperature.



Differential Pressure Flow Instrument Calibration

Built in square root functions quickly calibrate DP flow instruments.

Multifunctional

The 754 is able to calibrate temperature, pressure, voltage, current, resistance, and frequency. With these capabilities and the ability to both measure and source, the 754 can troubleshoot and callibrate.



Powerful & Simple

Users will find the Fluke 754’s user interface easy to navigate and follow step by step through each procedure. Have your unit up and running with in a few minutes. Saving valuable time and money.

Records and documents results

The Fluke 754 seemlessly records all calibration data, perminately eliminating the need to transcribe results on a computer or piece of paper. This ensures that all results are recorded properly. The USB connection allows for easy data transfer to your computer.



Truly hand-held

Despite all of its features, the 754 is still able to maintain a compact and easy to transport design. It is compact enough to fit into most tool bags and can be used in tight work areas. The rechargable lithium ion battery provides enough battery for a standard day’s use (approximately 10 hours).

Bright white display

The bright white display featured on the 754 offers users the ability to view results in real time indoors or outdoors. With 3 brightness settings, this display will work in any environment.



Soft keys

Fluke has added soft keys to the 754 giving users instant access to task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

Rugged and reliable

Fluke has designed the 754 to withstand the rigors of daily usage. The strong urethane case can withstand the rough conditions brought on by an industrial environment.



Built-in algebraic calculator

Built-in math functions eliminate the need to make separate calculations after data is recorded. Eliminating opportunity for error during data transcription.

Operating Modes

Designed to be an all-in-one tool, the 754 has three separate operating modes including measure, source and a combination of both measure and source. This eliminates the need for multiple tools.
