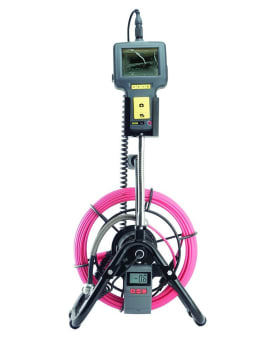

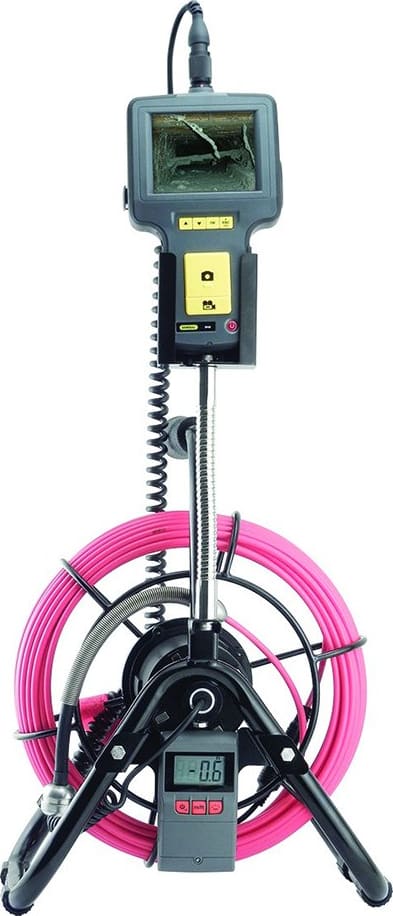

General Tools R30 – Pipe Inspection Camera
- Combines an #H16 recording console with a 100 Ft. Pipe & Duct Inspection Probe & Reel Set

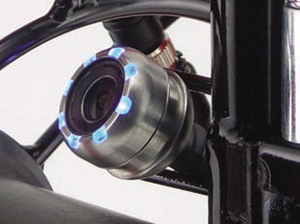

- Eight super-bright white LEDs illuminating the probe camera produce 640 x 480 pixel (VGA) resolution video clips and photos
- The probe is watertight to the IP67 standard and is flexible enough to make two 90° bends in a 1.6 in. (40mm) I.D. pipe
- The stainless steel camera head is immune to bathroom toilet cleaner, unleaded gasoline, brake/transmission fluid and machine oil
- The steel probe reel is sturdy and dust-tight to the IP65 standard. The reel works vertically or horizontally, and it includes an IP55-rated probe length counter, as well as a bracket for the H16 console

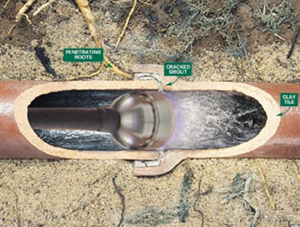

The #DPS16-R30 Pipe & Duct Recording Video Inspection Camera/Borescope with 100Ft. Probe is ideal for examining the interior of 2, 4 and 6 inch I.D. water and sewer pipes with the help of included probe centering accessories. The IP68-rated probe is 100ft. (30m) long, with a field replaceable 28mm (1.1 in.) diameter.
Manufacturer Specs
| H16 CONSOLE | |
| Display | 3.5 in. (89mm) diagonal TFT color LCD |
| Display resolution | 320 by 240 pixels (QVGA) |
| Camera and recording resolution | 640 x 480 pixels (VGA) |
| Analog video out formats | NTSC and PAL 2X zoom and horizontal mirroring controls on front panel |
| Recording medium | Standard-size SD card (4GB card included) |
| Operating temperature | 32° to 140°F (0° to 60°C) |
| Weight | 13.4 oz. (380g) |
| Power source | Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included) |
| P16PIP PROBE | |
| Camera head diameter | 1.1 in. (28mm) |
| Light source | Eight white LEDs |
| Depth of field | 0.4 in. (10mm) to infinity |
| Field of view | 150.8° (diagonal) |
| Length | 100 ft. (30m) |
| Material | Fiberglass |
| Minimum bending radius | 6 in. (150mm) |
| Waterproof depth (IP68) | 50 ft. (10m) |
| Operating temperature | 14° to 140°F (-10° to 60°C) |
| REEL | |
| Frame diameter | 11.8 in. (300mm) |
| Dust/oil/water resistance | To IP65 standard |
| Weight | 6.6 lb. (3kg) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 100 Ft (1200 IN) |
| Shaft Diameter | 1.1 IN (0.025 M) |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Warranty Details | 1-year limited warranty |
| Safety Approval | CE, RoHS |
| IP Rating | IP68 |
