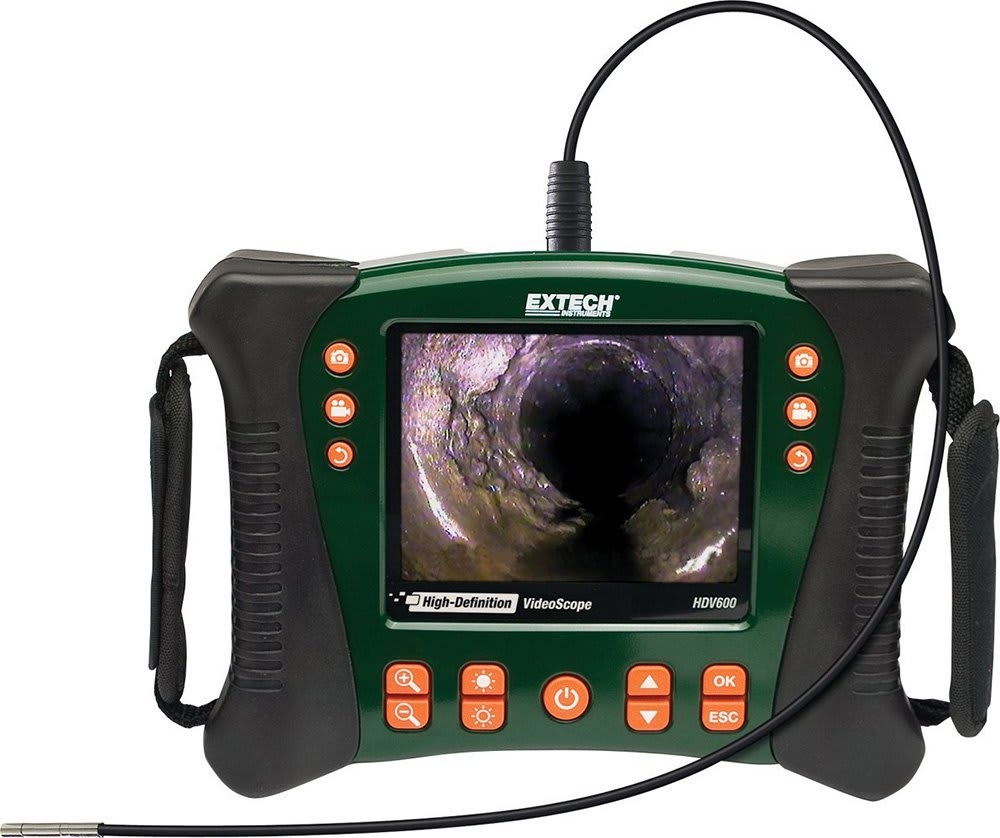

Extech HDV610 – HD VideoScope Kit with HDV600 Monitor and 5.5mm Flexible Probe
- Inspection camera with 5.5mm flexible, 60° FOV, macro probe (1m)
- HDV600 VideoScope with 5.7″ color LCD TFT with high definition 640 x 480 VGA pixel resolution
- Compact, high-resolution water-proof camera probe
- Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
- Glare-free close-up field of view
Narrow diameter cameras with 5.7″ High Definition Color LCD* Monitor
Deliver high image resolution on large color display where images and videos can be stored on SD memory card (included)
The HDV610 Kit includes an Inspection Camera with a 5.5 mm Flexible, 60-Degree FOV, Macro Probe (1m) and an HDV600 VideoScope with 5.7 in. color LCD TFT with high definition 640 x 480 resolution. Compact, high-resolution water-proof camera probe and four built-in bright LED lamps with dimmer control illuminate viewed object and provide glare-free close-up field of view. The SD memory card stores more than 14,600 images. Video recording (up to 4 hours) with voice annotation. AV output for viewing images and video directly on a monitor. Video and images can be transferred to a PC via the SD card or USB output. Optional wireless transmitter allows you to transmit video up to 100 ft. (30 m) from the measurement point to your monitor. Accessories include SD card, 3.7-Volt rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera probe, and hard carrying case.
A. Camera with 4 built-in bright LED lights illuminate dark areas.
B. HDV-WTX – Optional Wireless Transmitter transmits video to the main display from tight or hard to reach places up to 100ft (30m) away
C. Optional Articulating (6mm diameter) camera probes adjust up to 240° viewing angle
Applications:
- Industrial Processing & Manufacturing
- Heavy Equipment
- HVAC/Boilers
- Aerospace
- Government & Security
- Insurance
- Mining and Aggregate
- Aviation AOG and FBO
- Power Generation
- Building Inspection & Commissioning
- PetroChem/Refineries
- Infrastructure
Manufacturer Specs
| Camera | |
| Minimum Focus distance | 2.36″ (60mm); macro: 0.59″ (15mm) |
| Field of View | 65° |
| Shaft diameter | HDV610: 0.22″ (5.5mm) |
| Working length | 39″ (1m) |
| Borescope | |
| *LCD Color TFT Display | 5.7″ (14.5cm) size; 5.3″ (13.5cm) viewable |
| Pixels | 640 x 480 VGA pixel resolution (320 x 240 for 4mm camera) |
| Frame Rate | 30 fps frame rate (NTSC & PAL) |
| SD Card | 2GB SD memory card included (supports up to 32GB SD storage) |
| Operating | up to 4 hours AVI video |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 5.5 MM (0.0055 M) |
| Screen Size | 5.7 IN |
| Detachable Screen | No |
| Screen Type | TFT LCD |
| Max Probe Distance with Extensions | 100 Ft |
| Video Output Format | NTSC, PAL |
| IP Rating | IP57, IP67 |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | SD Card |
| Product Height | 15.50 IN |
| Product Length | 24.00 IN |
| Product Width | 7.00 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9013.80.9000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | Other |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 15.50 IN |
| Shipping Length | 24.00 IN |
| Shipping Width | 7.00 IN |
