Description

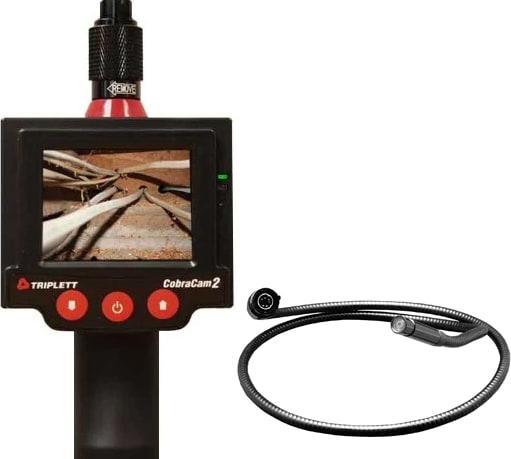

Triplett 8115-KIT5 – Promo Cobracam 2, Inspection Camera with free CC2-CAM3FM 5mm camera head 3”.
Promo Cobracam 2
- Image can rotate 180 degrees
- Video output to a secondary monitor or DVR
- 1 Year Warranty
- Waterproof camera head and wand
- 2 adjustable high intensity LED’S for lightning
The Triplett CobraCam 2 is a portable self contained inspection camera that utilizes a 2.4 inch color LCD display. Comes standard with a 6 foot camera wand that is replaceable and waterproof. The CobraCam 2 also features a video output to be directly connected to a monitor or a DVR and a video input that can be used to view security camera footage to make line-of-sight adjustments.
Applications
- Gain visual access to tight areas
- Check down drains, behind walls, and hard to reach places
- Save money by finding problems before tearing down walls, and pulling up pipe
- Adjust security cameras for perfect line of sight
Manufacturer Specs
| General Specifications | |
| Size | Flexible Snake: less than 5/16″ dia x 6 feet long Camera: less than 13/32″ dia x 1 11/16″ long Handle: 9″ x 2.5″ x 3.5″ (including LCD and connector) |
| Camera | 320 x 240 pixels 1/18″ CMOS imager |
| Focal distance | 1″ to 3″. Usable to infinity 54 degree viewing angle F 2.8 lens Auto exposure and white compensation |
| IP Rating | Water resistant (IP67) |
| LCD | 2.4″ TFT LCD 320 x 234 pixels Full color |
| Snake | Polyethylene covered steel flex. Minimum radius bend, 1.5″ |
| Illumination | 2 adjustable brightness white LEDs in camera head |
| Video Input & Output | Standard NTSC format (standard format used in the USA) |
| Power | Four AA Alkaline batteries |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 6 Ft (72 IN) |
| Shaft Diameter | 0.313 IN (0.025 M) |
| Screen Size | 2.4 IN |
| Detachable Screen | No |
| Screen Type | TFT LCD |
| Video Resolution (Boroscopes) | 320 x 240 |
| Image Resolution | 320 x 240 |
| Video Output Format | NTSC |
| IP Rating | IP67 |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Interfaces I/O | Other |
| Product Height | 9 IN |
| Product Length | 2.5 IN |
| Product Width | 3.5 IN |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
