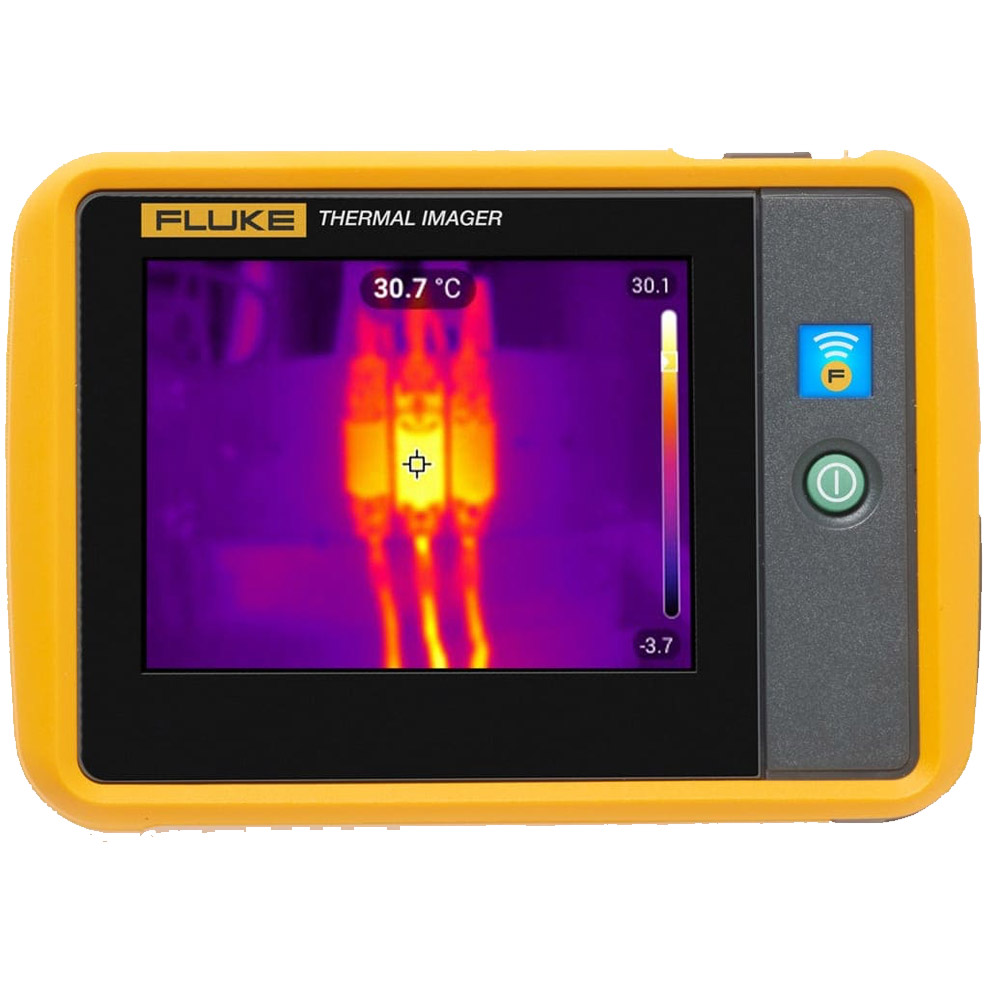

Fluke PTI120 9HZ 400C – Pocket Thermal Imager for Up to 400°C
- Upgrade of PTi120 thermal imager
- This model measures up to 400°C and includes enterprise Wi-Fi
- Pocket sized, simple point and shoot technology empowers teams to quickly scan equipment
- Asset tagging – store your assets to a predefined folder by scanning your asset’s QR code
- 120 x 90 infrared resolution (10,800 pixels)
The bigger the problem, the faster you need to solve it. The upgraded Fluke Pocket Thermal Imager puts the power to minimize downtime in everyone’s hands with the right tool at the right time. As the first line of defense for easy troubleshooting, the PTi120 empowers you to stop fighting fires on the job, and start preventing them.
Small enough to carry every day without worry, the PTi120 stands up to dirt and water, and can survive a 1-meter drop. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets.
After successfully scanning the QR code on your equipment, you can send your images complete with data and time stamped information to predefined folders. Send via Wifi or automatically upload once you connect to the network or computer via USB. Now you can more efficiently safe, find and report on issues before they become problems.
Rugged, portable camera
- Pocked sized, simple point and shoot technology empowers teams to quickly scan equipment
- Can survive a 1-meter drop
- Stands up to dirt and water; IP54
Automatically save your images to the right folders with Asset Tagging
- Store your assets to a predefined folder by scanning your asset’s QR code
- Send via Wifi or automatically upload once you connect to your network or via USB
- Eliminate the tedium of sorting and organizing your infrared images
- Efficiently find and report issues before they become problems
Get your preferred level of infrared every time
- The 3.5” LCD touchscreen offers IRFusion™ to blend a visible light image
- Slide your finger across the screen to adjust the setting.
Manufacturer Specs
| Fluke PTI120 9HZ 400C Specifications | |
| Thermal Sensitivity | ≤60mk |
| Infrared resolution | 120 X 90 (10,800 pixels) |
| Field of View | 50° H X 38° V |
| Fully Radiometric | Yes |
| Temperature Measurement Range (not calibrated below -10 °C) |
-20 °C to 400 °C (-4 °F to 752 °F) |
| Wireless | Yes |
| Screen Size | 3.5” Touchscreen |
| Accuracy | +/-2 °C |
| Color Palettes | 6 |
| Battery | >2 hours |
| Markers | Hot/Cold markers |
| Torch | Yes |
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 120 x 90 Sensor |
| Thermal Sensitivity | 60 mK (NETD) |
| Temperature Range Max | 400 C (752 F) |
| Temperature Range Min | -20 C (-4 F) |
| Image Frequency | 9 Hz |
| Field of View | 50 x 38 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 22.8 CM (0.228 M) |
| Accuracy | Accuracy: ± 2° C or ± 2 % |
| Battery operating time Continuous | 2 HR |
| Camera Light | Yes |
| Voice Annotation | No |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Interfaces I/O | Wifi, Micro USB |
| Storage | Internal Memory |
| IP Rating | IP54 |
| Product Weight | 0.514 LBS |
| Product Height | 3.5 IN |
| Product Length | 1 IN |
| Product Width | 5.00 IN |
| Shipping Weight | 0.55 LBS |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A993 |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 8.5 IN |
| Shipping Length | 2.38 IN |
| Shipping Width | 5.07 IN |
