Fluke Ti300+ 60HZ Thermal Imnager, GS1

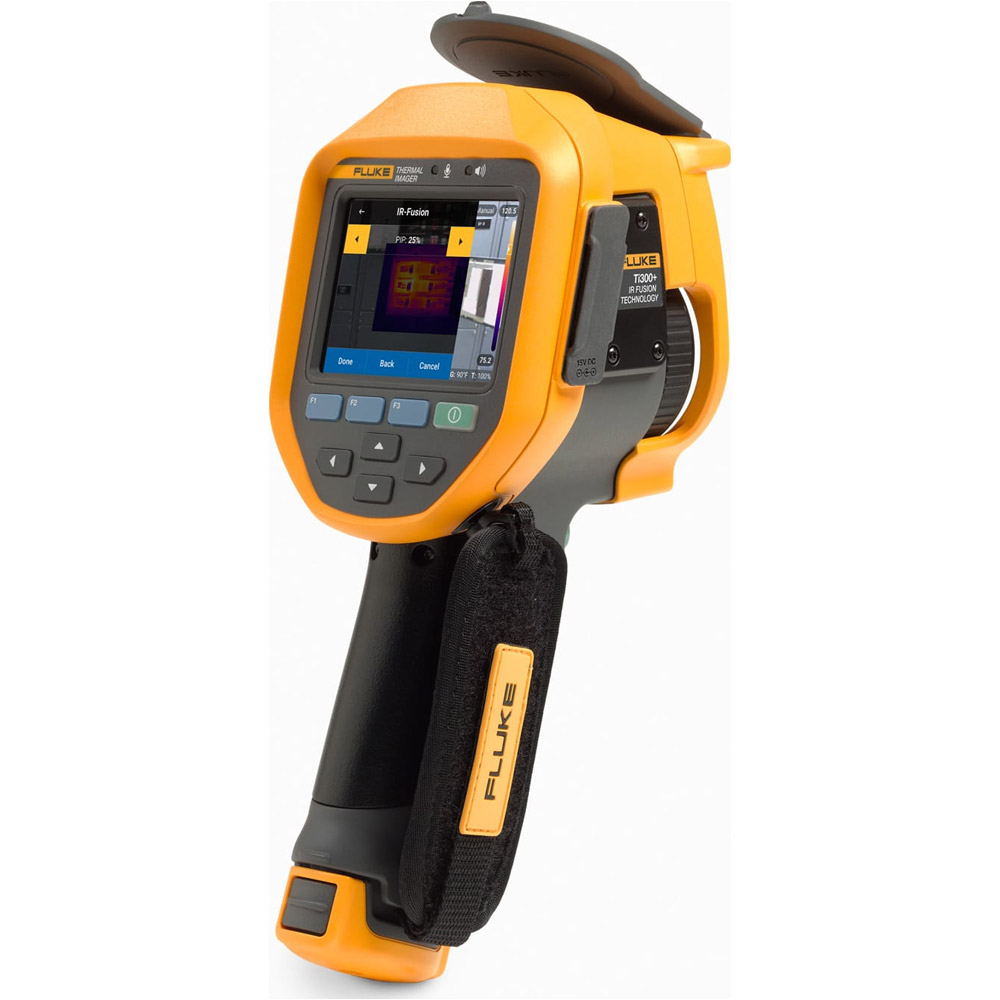

Fluke Ti300+ 60Hz Thermal Imager
- 320 x 240 resolution
- Measure up to 650 °C
- Engineered and tested to withstand a 2-meter drop
- Manual or automatic focus
The Ti300+ thermal camera is compatible with Fluke Connect the largest integrated system of maintenance software and tools in the world. Perform the same inspections multiple times as a part of your preventive maintenance program—the built-in laser distance meter calculates and displays how far you are from your target, making repeatability much easier.
Accurate, reliable results
Find issues before they are fully formed. The resolution and accuracy needed to clearly reveal temperature differentials or demonstrate progressive heat changes over time. With LaserSharp™ AutoFocus the Ti300+ ensures focused images—every single time. Enable your team to get clear images while maintaining a safe distance from operating equipment.
Focus matters – intelligent focus system
Patented Fluke LaserSharp Auto Focus uses a built-in laser distance meter that provides both speed and precision. The laser-driven target detection pinpoints the target while the camera focuses to capture a precise, high-quality image.
Difficult inspection sites.
Passive auto focus systems may only capture near-field subject, meaning that you may be capturing measurements of the wrong target.
Fluke LaserSharp Auto Focus allows you to select and focus on a specific target.
Preventive maintenance simplified. Rework eliminated
- Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect system.
- Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record.
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer.
- Access baseline, historical and current measurements by asset. Share your measurement data using ShareLiveTM video calls and emails.
- The Ti300+ infrared camera is part of a growing system of connected test tools and equipment maintenance software. Visit the website to learn more about the Fluke Connect system.
Manufacturer Specs
| General Specifications | |
| Infrared resolution | 320 x 240 (76,800 pixels) |
| SuperResolution™ | No |
| IFOV with standard lens (spatial resolution) | 1.85 mRad, D:S 532:1 |
| Field of view | 34° H x 24° V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| MultiSharp™ Focus | No |
| LaserSharp™ Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| Fluke Connect™ app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets | Through the desktop, assign images to assets, easily compare measurement types in one location and create reports. |
| Fluke Connect instant cloud upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect instant server upload | No |
| IR-Fusion™ technology | Yes, adds the context of the visible details to your infrared image |
| Ruggedized touchscreen display | 3.5 inch (landscape), 640 x 480 LCD |
| Ergonomic design | Pistol-grip design for one-handed use |
| Thermal sensitivity (NETD)** | ≤ 0.075 °C at 30 °C target temp (75 mK) |
| Level and span | Smooth auto and manual scaling |
| Touchscreen adjustable level/span | Yes |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Built-in digital camera (visible light) | 5MP |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Digital zoom | No |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | bmp, jpeg, is2 |
| Memory review | Thumbnail and full screen review |
| Software | Full analysis and reporting software with access to the Fluke Connect system |
| Analyze and store radiometric data on a PC | Yes |
| Export file formats with Fluke Connect software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required |
| IR-PhotoNotes™ | Yes – 2 images |
| Text annotations | Yes. Including standard shortcuts as well as user programmable options |
| Video recording and formats | No |
| Remote control operations | No |
| Auto capture (temperature and interval) | No |
| MATLAB® and LabVIEW® tool boxes | No |
* Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor.
** Best possible
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 320 x 240 Sensor |
| Thermal Sensitivity | 75 mK (NETD) |
| Temperature Range Max | 1202 F |
| Temperature Range Min | -4 F |
| Image Frequency | 60 Hz |
| Field of View | 34 x 24 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Auto Focus |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 15 CM (0.15 M) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 3 HR |
| Camera Light | Yes |
| IR Digital Zoom | No |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Interfaces I/O | Bluetooth, Wifi, HDMI |
| Storage | SD Card |
| Product Weight | 2.3 LBS |
| Product Height | 10.9 IN |
| Product Length | 6.5 IN |
| Product Width | 4.8 IN |
| ECCN Number | 6A003.b.4.b |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 11.02 IN |
| Shipping Length | 15.35 IN |
| Shipping Width | 12.20 IN |
