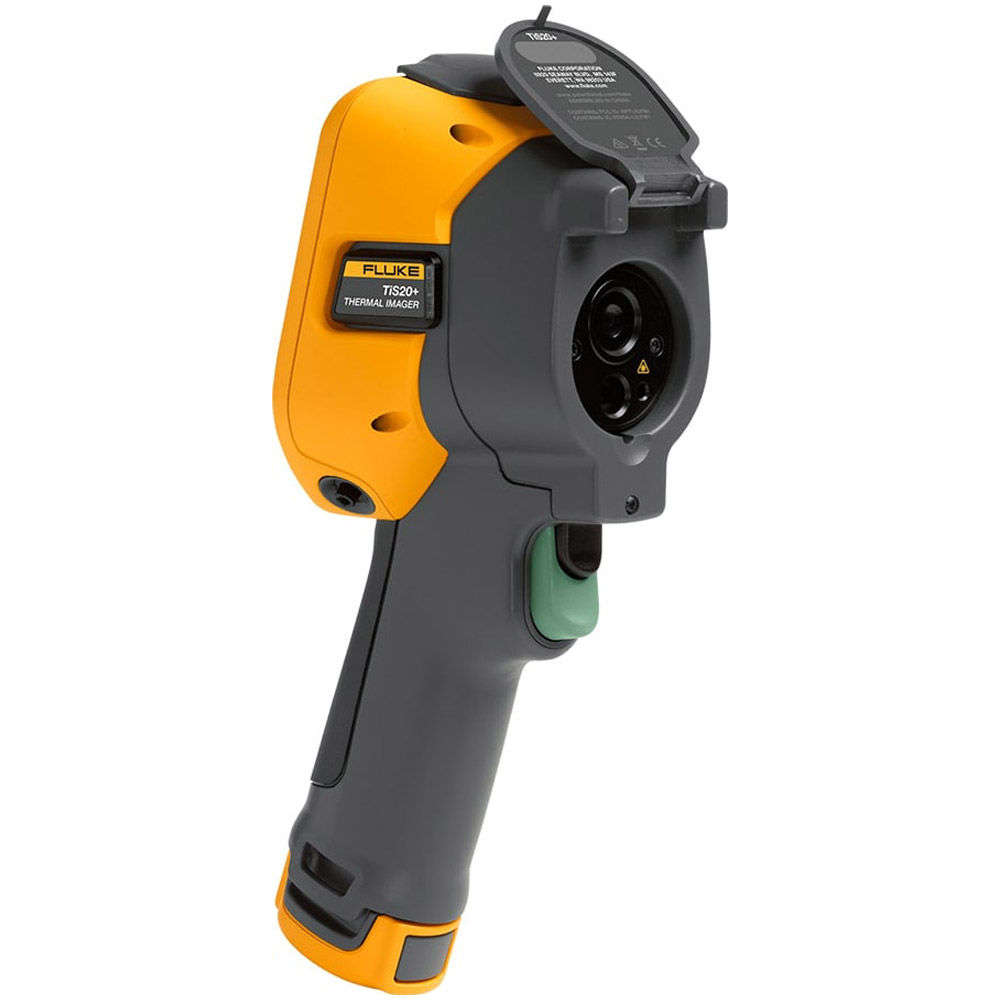

Fluke TiS20+ 9 Hz Thermal Camera
9Hz thermal imager
- Save time with the right level of infrared and analysis
- Continuous touchscreen IR-Fusion, slide your finger across the screen to adjust the setting
- 120 x 90 infrared resolution (10,800 pixels)
- 3.5″ LCD touchscreen display for easy troubleshooting
The Fluke TiS20+ is an easy to use thermal camera with very good image quality for everyday use. This camera is designed to make your job easier and quicker by empowering you to point, shoot, sort, and fix issues on the spot.
Save time with the right level of infrared and analysis
- Continuous touchscreen IR-Fusion, slide your finger across the screen to adjust the setting.
- 120 x 90 infrared resolution (10,800 pixels)
- 3.5″ LCD touchscreen display for easy troubleshooting
- Automatically sort images with Fluke Connect Asset Tagging
Rugged
Whether you are finding an uneven load on a switchgear or inspecting a ventilation system, the Fluke TiS20+ helps you detect issues quickly.
- Can withstand a drop up to 2 meters
- Water and dust resistant-IP54 enclosure rating
IR-Fusion
Fluke IR-Fusion technology combines visible and infrared images for faster inspections and better reporting. With a single touch, you can scan from full infrared to full visible images to pinpoint the location of an issue.
Full infrared image*
75 % blended image*
50 % blended image*
Full visible imageTiS20+ Benefits
- Asset Tagging
- Streamline image sorting and reporting
- IR-Fusion™ technology
- Blending and overlay give context to images
- Battery life
- 20% more than closest competitor
- Display Size
- 17% larger than the closest competitor
- Fluke Connect™
- Include measurements from other Fluke tools (voltage/current along with your IR image)
Manufacturer Specs
| Key features | TiS20+ |
| Infrared resolution | 120 x 90 (10,800 pixels) |
| IFOV (spatial resolution) | 7.6 mRad, D:S 130:1 |
| Field of view | 50° H x 38° V |
| Minimum focus distance | 50cm (20 inches) |
| Focus system | Fixed focus |
| Data transfer | Mini USB used to transfer image to PC |
| Wireless connectivity | Yes, (802.11 b/g/n (2.4 GHz)) |
| Fluke Connect instant upload | Yes, connect your camera to your building’s WiFi network (802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke Connect system or your local server for storage and viewing on your PC |
| Image quality | |
| Level and span | Smooth auto and manual scaling |
| IR-Fusion technology | AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image |
| Display | 3.5″ LCD touchscreen (landscape) |
| Display resolution | 320 x 240 LCD |
| Thermal sensitivity (NETD) | 60 mK |
| Frame rate | 9 Hz |
| Data storage and image capture | |
| Memory | Internal 4GB memory (includes slot for optional micro SD card up to 32GB) |
| Image capture, review, save mechanism | One-handed image capture, review, and save capability |
| Image file formats | Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files |
| Software | Fluke Connect desktop software—full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with software | .bmp, .dib, .jpg, .tif, .tiff |
| Battery | |
| Batteries (field-replaceable, rechargable) | Lithium ion smart battery pack with five-segment LED display to show charge level |
| Battery life | ≥ 5 hours continuous (without WiFi) |
| Battery charging time | 2.5 hours to full charge |
| Battery charging system | In-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
| Temperature measurement | |
| Temperature measurement range (not calibrated below 0 °C) | -20 °C to 150 °C (-4°F to 302°F) |
| Accuracy | Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2 % at 25 °C, whichever is the greater. |
| On-screen emissivity correction | Yes, material table |
| On-screen reflected background temperature compensation | Yes |
| Center-point temperature | Yes |
| Spot temperature | Hot and cold spot markers |
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 120 x 90 Sensor |
| Thermal Sensitivity | 60 mK (NETD) |
| Temperature Range Max | 302 F |
| Temperature Range Min | -4 F |
| Image Frequency | 9 Hz |
| Field of View | 50×37.5 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 20 IN (0.508 M) |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Battery operating time Continuous | 5 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Unique Features | Fluke Connect
IFOV (spatial resolution) 7.6 mRad, D:S 130:1 IR Fusion – AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to One-handed image capture, review, and save capability |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | Wifi, USB |
| Storage | Internal Memory, Micro SD |
| IP Rating | IP54 |
| Product Height | 10.50 IN |
| Product Length | 5.70 IN |
| Product Width | 4.00 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A993 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | China |
| Shipping Height | 10.50 IN |
| Shipping Length | 5.70 IN |
| Shipping Width | 4.00 IN |
