Descripción

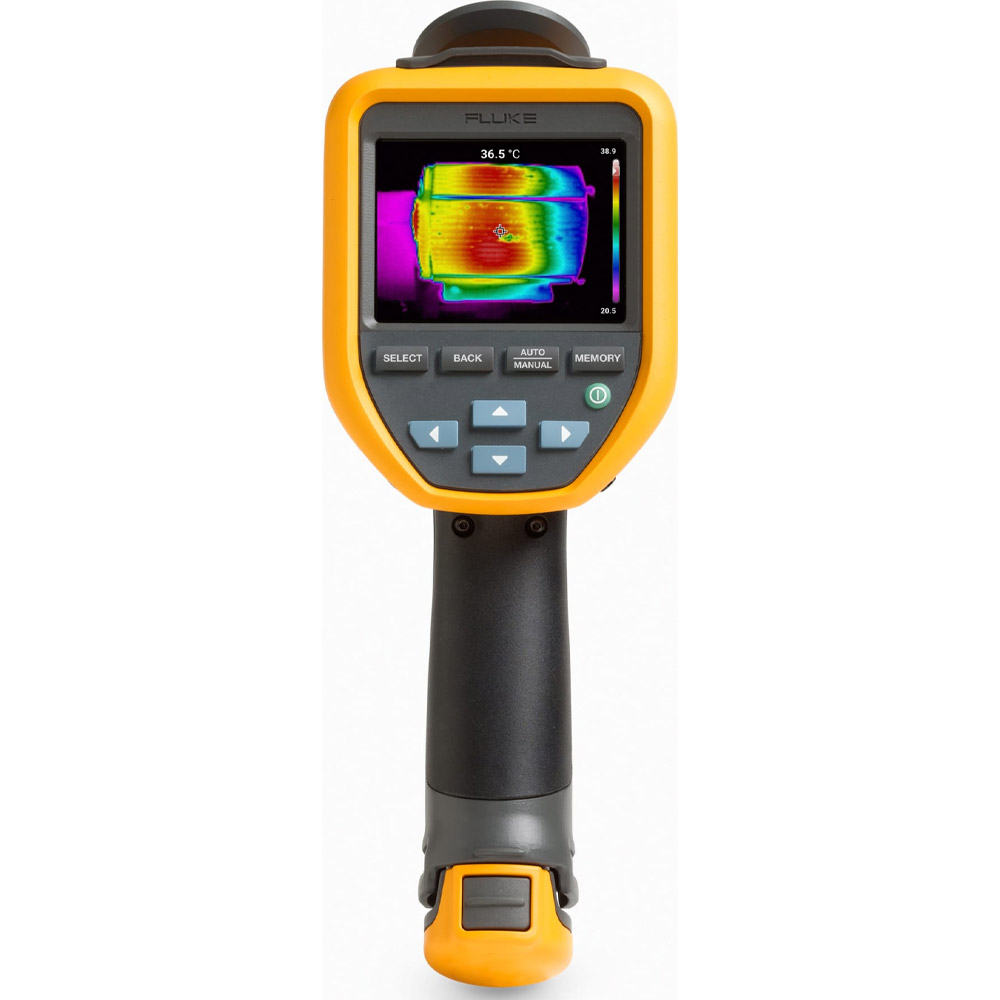

Fluke TIS55+ Thermal Imager – 27Hz Frame Rate, 256 x 192 Infrared Resolution
- 256 x 192 infrared resolution (49,152 pixels)
- 27Hz frame rate
- Designed to simplify your proactive maintenance (PM) program
- Built in personal assistants embed information in your images
- Voice annotation, IR photo notes, asset tagging
Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS55+ and TiS75+, you’re well on your way to implementing a successful PM program.
- Asset Tagging allows you to easily compare asset images over time.
- Scanning the QR code on each asset creates a timeline of your inspections.
- Use the time saved (25% on average spent organizing thermal images) to analyze asset images for trends, diagnosing issues and fixing problems before they become failures.
Ditch the clipboard
With so many inspections in your day, it can be hard to remember what you saw and where that was. Maybe you carry around a clipboard to jot down notes onto. The TiS55+ and TiS75+ come with built-in personal assistants, which means you can finally ditch the clipboard and have all the information you need in the images you take, including:
- Voice annotation
- Record up to 60 seconds per thermal image
- Identify exactly what you see in real time
- IR-Photo Notes
- Take photos of asset numbers and other identifiers
- Use as a reference when looking at the thermal image on your computer
- Asset Tagging
- Sort your thermal images by asset
- Scan a QR code on your asset, then start capturing thermal images
- Connect your camera to your computer to view the images, sorted by asset
Annotations
Asset tagging
Eliminate hours at the computer organizing your thermal images, let Asset Tagging do all that work for you. No more dragging and dropping or renaming files in the office, just scan a QR code on your asset, capture your thermal images and they automatically are sorted by asset. Start spending your time analyzing your images and creating reports instead of sorting your files one at a time.
Manufacturer Specs
| General Specifications | |
| Resolution | 256 x 192 |
| Sensitivity | 40mk |
| FOV | 28° x 20° |
| IFOV | 1.91 mRad |
| Temperature Range | -20° to 550° |
| Focus | Focus-Free / Manual |
| IR-Fusion | AutoBlend continuous 0-100% |
| Voice annotation | 60 seconds |
| Text annotation | Yes |
| Asset Tagging | Yes |
| Alarms | Color Alarms |
| Video | No |
| Display | 3.5″ |
| Frame Rate | 27Hz |
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Thermal Sensitivity | 40 mK (NETD) |
| Temperature Range Max | 550 C (1022 F) |
| Temperature Range Min | -20 C (-4 F) |
| Image Frequency | 27 Hz |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | No |
| Focus | Adjustable and Fixed |
| Laser Spot | Yes |
| Picture in Picture | Yes |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | Yes |
| Minimum Focus Distance | 0.5 M |
| Accuracy | ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature |
| Battery operating time Continuous | 3.5 HR |
| IR Digital Zoom | Yes |
| Voice Annotation | Yes |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Product Height | 11.00 IN |
| Product Length | 15.50 IN |
| Product Width | 8.50 IN |
| Shipping Weight | 7.26 LBS |
| ECCN Number | 6A003.b.4.b |
| Shipping Height | 11.00 IN |
| Shipping Length | 15.50 IN |
| Shipping Width | 8.50 IN |
