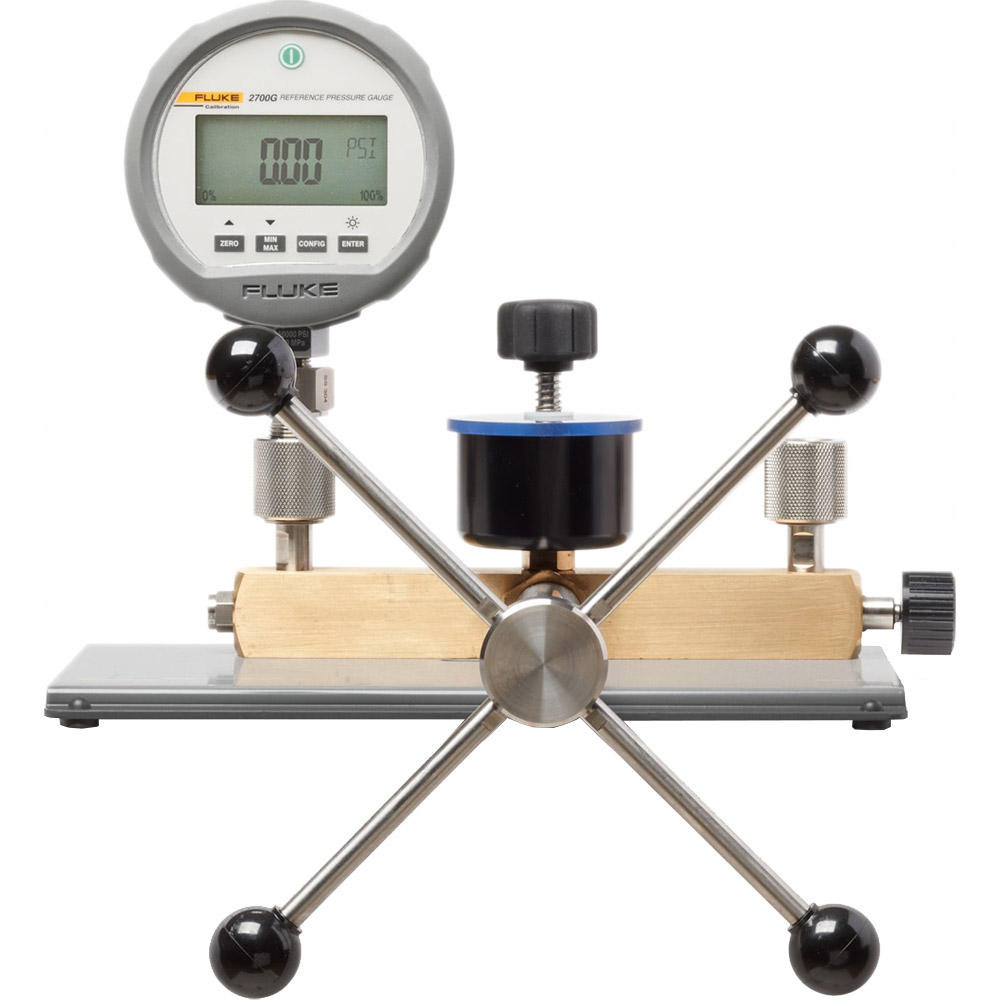

Fluke P5510/14B-2700G-4/C – Pressure Calibrator and Pneumatic Comparison Test Pump, 4 Gauges, Accredited
- Includes P5510 pneumatic comparison test pump, Pressure Calibrator, 4 Gauges
- Accredited
- Easily generate pressure to 10 000 psi (70 MPa)
- Tool-free test connectors for easy, leak free connections
- Vernier fine adjustment control enables cardinal point calibrations
- Improved test port connectors adapters: included for common sizes of NPT and BSP
A pressure comparator or hydraulic test pump supplies the same precisely controlled pressure to both a reference gauge and device under test for calibration. Fluke Calibration hydraulic test pumps are used for checking pressure measuring instruments against master test gauges, indicators or transducers. These cost-effective instruments, which include several features from our popular line of hydraulic deadweight testers, are capable of easily generating high pressures and often include a Vernier for precise control for important calibration requirements.
Make it a pressure calibrator
The Fluke Calibration P5514B Pressure Comparator, when combined with the 2700G Reference Pressure Gauges, becomes an easy-to-use alternative to traditional deadweight testers that covers a wide range of workload. For convenience, the P5514B is bundled together with selected 2700G Reference Pressure Gauges for a complete bench top pressure calibration solution. These pressure calibrators provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.
For example, the P5514B-2700G-3 is a P5514B Pressure Comparator, bundled together with 2700G-G70M, 2700G-G20M, 2700G-BG7M. This calibrator has three pressure ranges corresponding to the three 2700G Reference Pressure Gauges in the bundle and covers a total pressure range of -12 psi to 10 000 psi (-80 kPa to 70 MPa).
Fluke Calibration P5510 Pneumatic Comparison Test Pump
This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost-effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.
Manufacturer Specs
| Fluke P5510/14B-2700G-4/C Specifications | |
| P5514B Hydraulic Pressure Comparator | |
| Pressure Range | 0 to 10,000 psi (700 bar) |
| Test Port Adapters | 1/4 NPT (Qty 2), 1 each of 1/2 NPT, 1/4 BSP and 1/2 BSP |
| Instrument Size (W x D x H) | 11 x 11 x 10 in (280 x 280 x 254 mm) |
| Instrument Weight | 11 lb (5 kg) |
| Reservoir Volume | 75 cc |
| Screw Press Displacement | 20 cc |
| Fluid Media | The standard O-ring seals are Viton. Ethylene Propylene seals are available for use with solvents, fuel oils, brake fluids or other similar aggressive fluids. P5514B-70M: Viton Seals P5514B-70M-EP: Ethylene Propylene Seals |
| Fluke Calibration P5510 Pneumatic Comparison Test Pump | |
| Pressure range | 0 to 300 psi (20 bar) |
| Vacuum range | 0 to 24 inHg (800 mbar) |
| Instrument size (W x D x H) | 9.5 x 13 x 7 in (240 x 330 x 180 mm) |
| Instrument weight | 7.5 lb (3.5kg) |
| Test port adapters | 2 sets 1/8, 1/4, 3/8, and 1/2 NPT or BSP |
Tech Specs
Process / Calibration/Pressure Calibration/Pressure Calibrators Template |
|
|---|---|
| Max Pressure | 10000 psi (10000 hPa) |
| Intrinsically Safe | No |
Test Equipment General Attributes |
|
| Unique Features | Accredited |
| Warranty | 1 YEARS |
| Product Height | 10 IN |
| Product Length | 11 IN |
| Product Width | 11 IN |
| Shipping Weight | 43.80 LBS |
