Descripción

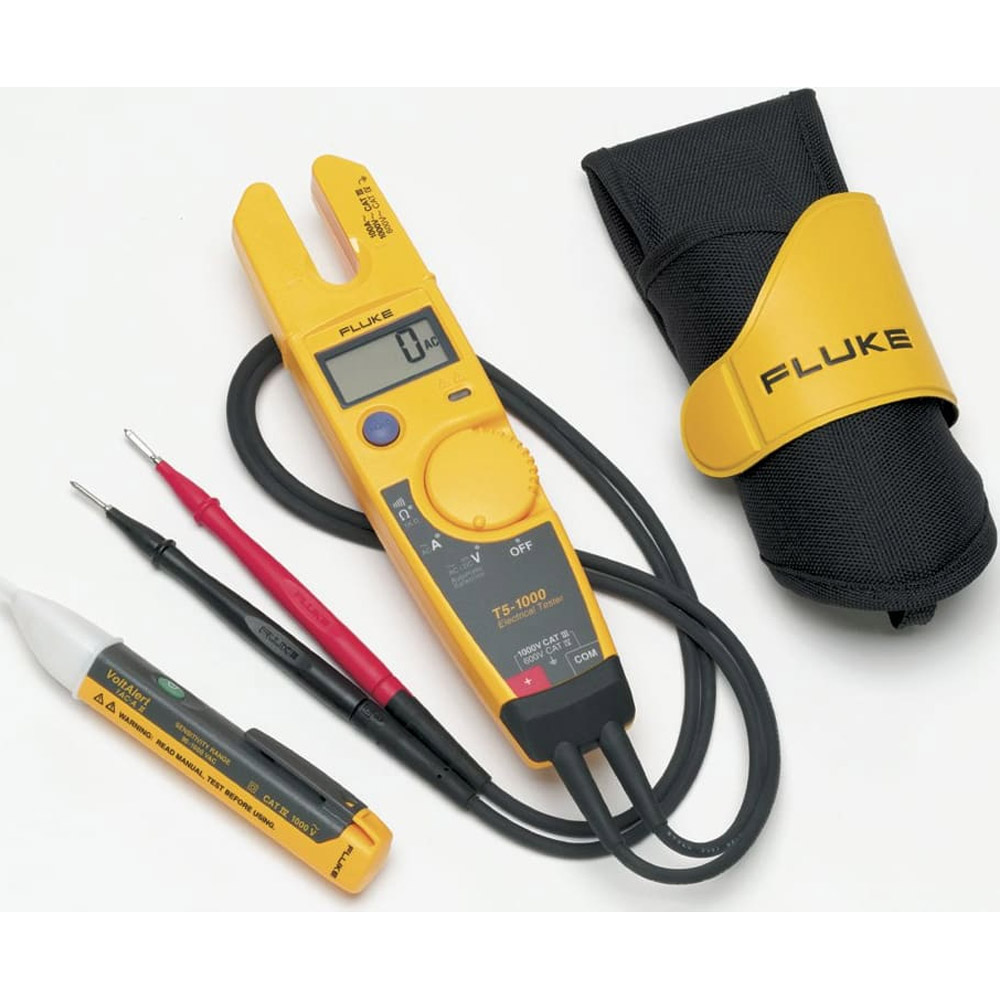

T5-H5-1AC KIT/US Voltage, Continuity and Current Tester Kit with Holster.
Manufacturer Specs
| Fluke 1AC-II | |
| Operating principle | Senses the steady state electrostatic ?eld produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges | Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model |
| Detector tip style | Blade or round, depending on model |
| Light source | One high intensity red LED |
| Agency Approvals | c CSA us, CE, C-Tick |
| Safety Rating | 1000 V, CAT IV |
| IP Rating | IP 40 |
| Operating Temperature | -10 °C to 50 °C |
| Operating humidity ranges | 0 % to 95 % (0 °C to 30 °C) 0 % to 75 % (30 °C to 40 °C) 0 % to 45 % (40 °C to 55 °C) |
| Operating Altitude | 3000 meters |
| Batteries | 2 AAA alkaline batteries included |
| Fluke T5-1000 | ||
| Battery | Type | Two AA zinc chloride |
| Life | 200 hour zinc chloride, 400 hour alkaline; low battery indicator | |
| Test leads | Type | Heavy duty, flexible leads rated for 1000V use. Field replaceable leads terminate in male shrouded banana plugs |
| Probes | One red, one black. Detachable Slim-ReachT probe tips in one of two tip | |
| Styles | TP1 flat blade (US style) or TP4 4 mm round (European style) | |
| Continuity beeper | Threshold | On at <25W, off at >400W |
| Volts indicator LED | Threshold | Guaranteed on by 30V ac |
| Environmental | Operating temperature | -10°C to 50°C |
| Storage temperature | -30°C to 60°C | |
| Temperature coefficient | 0.1 x (specified accuracy)/degree C (<18°C or >28°C) | |
| Relative humidity | 0% to 95% (5°C to 30°C) 0% to 75% (30°C to 40°C) 0% to 45% (40°C to 50°C) |
|
| Operating altitude | 2000 meters max Dust and water resistant |
|
| Mechanical | Size | 30.5 mm H x 51 mm W x 203 mm L (1.2″ x 2.0″ x 8.0″) approximate |
| Weight | 0.3 kg (10 oz) approximate | |
| Current sensor opening | 12.9 mm (.508″) | |
| Safety | Maximum operating voltage | 1000V ac/dc, Overvoltage Category III between any terminal and earth ground |
| Agency approvals | UL, CSA, and VDE | |
| General | Warranty | 2 years |
| Calibration cycle | 1 year | |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Height | 2.75 IN |
| Product Length | 14.00 IN |
| Product Width | 6.50 IN |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Country of Origin | Malaysia |
