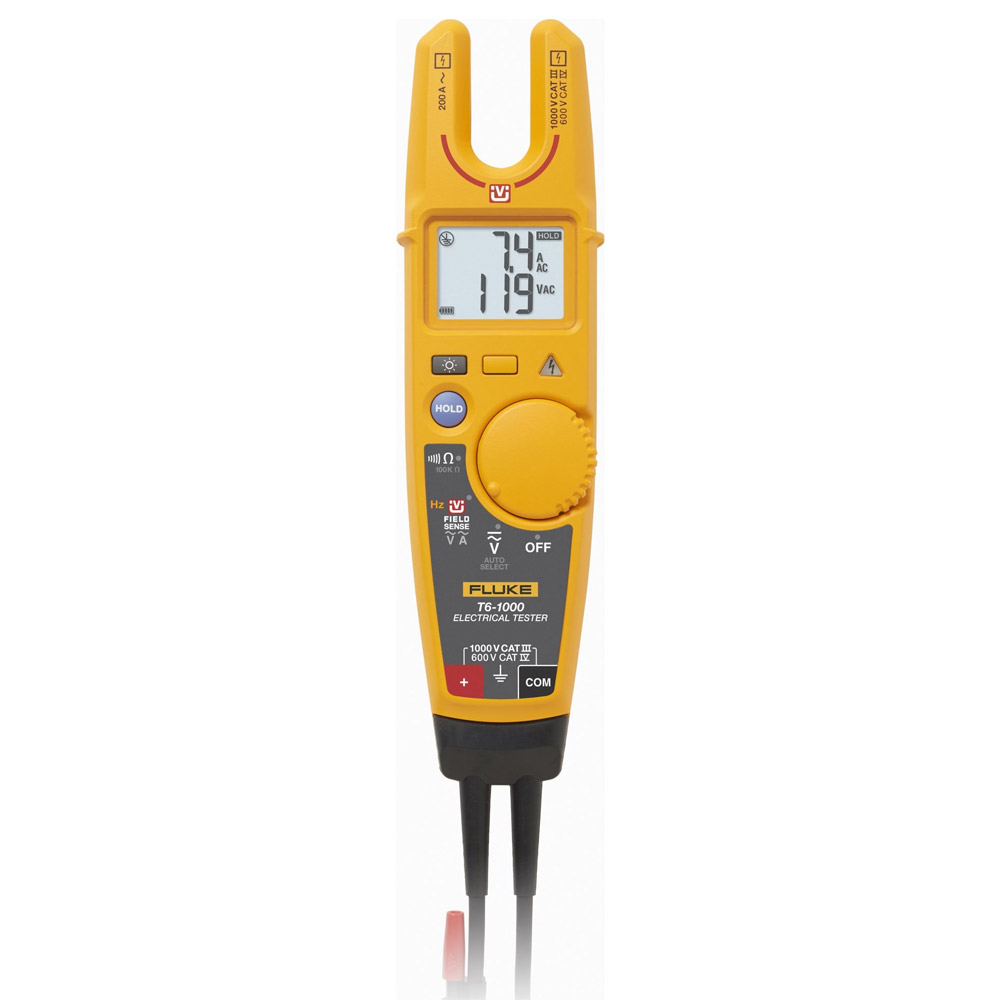

Fluke T6-1000PRO Electrical Tester
T6-1000 PRO/AMER
- HOLD button temporarily freezes the screen for easy viewing
- Easy to read display with backlight
- Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.
Manufacturer Specs
| General Specifications | |
| Calibration | 1-year calibration cycle |
| Dimensions | 61.1 mm x 259.3 mm x 43.8 mm |
| Weight | 0.35 kg (0.78 lb) |
| Fork opening | 17.8 mm (0.7”) |
| Temperature Operating: Storage: |
-10 °C to +50 °C (14 °F to 122 °F) -30 °C to +60 °C (-22 °F to +140 °F) |
| Altitude Operating: Storage: |
2,000 m (6,562 feet) 10,000 m (32,808 feet) |
| Relative Humidity | 0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F) 0 % to 75 %, 30°C to 40 °C (86 °F to 104 °F) 0 % to 45 %, 40°C to 50 °C (104 °F to 122 °F) |
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense |
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F) |
| Safety | IEC/EN 61010-1, IEC/EN 61010-2-033: Pollution Degree 2 |
| Electromagnetic Environment | IEC/EN 61326-1: Portable |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Height | 10.50 IN |
| Product Length | 3.00 IN |
| Product Width | 4.60 IN |
| ECCN Number | 3A992 |
| Country of Origin | United States |
