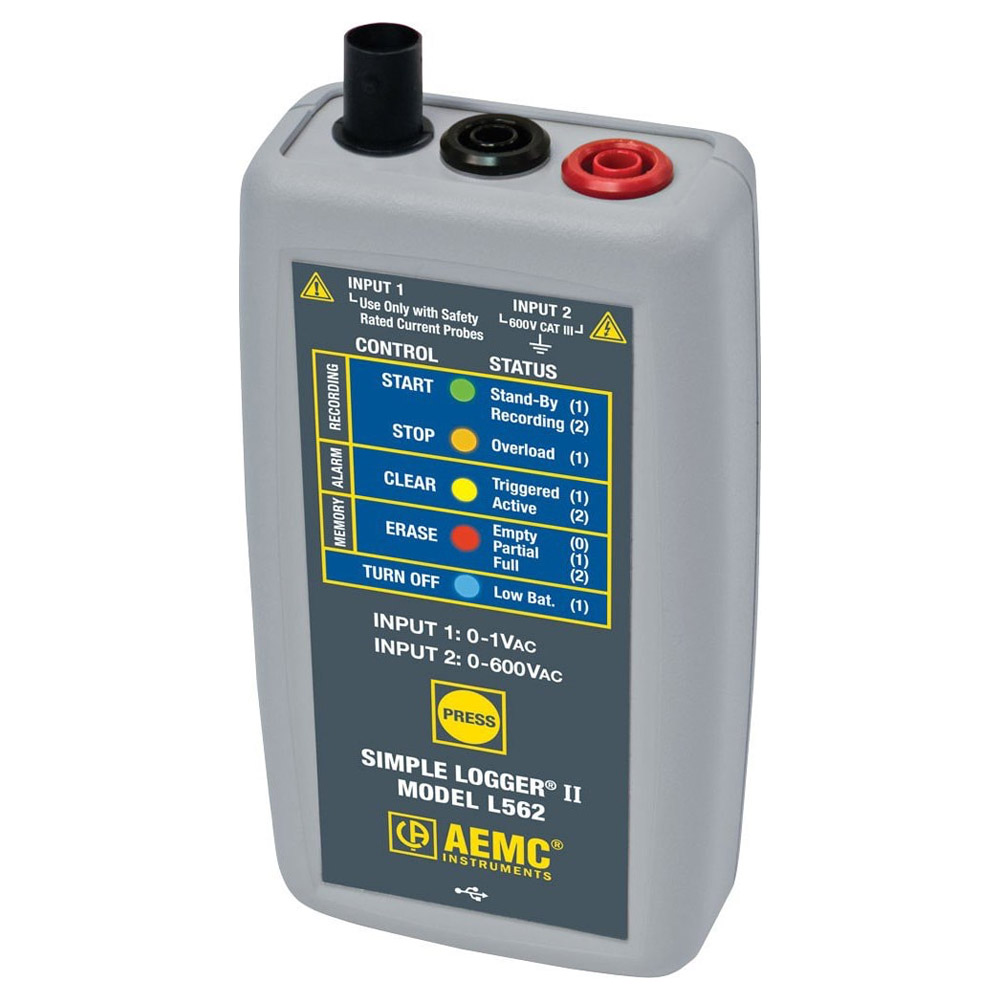

AEMC L562 – 2-Channel Voltage and Current Simple Logger II, 600V Voltage, 1V Current
- 2 input channels
- Voltage: 0 to 600VAC TRMS
- Current: compatible with current probes with voltage outputs
- 64 samples per cycle
- 3 user-selectable storage modes; Stop when full, FIFO, XRM
The Simple Logger II Model L562 is a two-channel Volt/Amp data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRM) and delayed start time are just two of the many application-friendly features.
The Simple Logger II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the input(s) are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with an easy and intuitive setup from a computer using DataView software.
Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.
Applications:
- Single phase power monitoring
- Residential, commercial, industrial troubleshooting
- Find sags and surges
- Track energy usage
DataView Graphing & Analysis Software
The DataView software provides a convenient way to configure and control logging from your computer. Through the use of clear and easy-to-use tabbed dialog boxes, all Simple Logger II functions can be configured and tests can be initiated. Results can be displayed in real-time and stored in your PC or the logger. Standard or custom reports may be printed along with the operator’s comments and analysis.
Configure all data logger functions
- Display and analyze real-time data on your PC
- Configure all data logger functions and parameters from your PC including sample rate, recording length, channel configuration, and more
- Create and store a complete library of configurations that can be uploaded to the logger as needed
- Zoom in and out and pan through sections of the graph to analyze the data
- Download, display, and analyze recorded data
- Display waveforms, trend graphs, harmonics (AC models), and text summaries
- Create custom views and reports
- Print reports using standard or custom templates you design
Manufacturer Specs
| Simple Logger II Model L562 | ||
| Electrical | ||
| Channels | Two | |
| Connection | Current Channel | Voltage Channel |
| Input Connection | BNC | Two Recessed Banana Jacks |
| Input Range | * 0 to 1V (for use with current probes with a voltage output) | 0 to 600Vac |
| Resolution | 0.1mA | 0.1V |
| Accuracy | 0 to 10mV unspecified 10 to 50mV: ±(0.5% of Reading + 1mV) 50 to 1000mV: ±(0.5% of Reading + 0.5mV) |
0 to 5V unspecified 5 to 50V: ±(0.5% of Reading + 1V) 50 to 600V: ±(0.5% of Reading + 0.5V) |
| Measurement Input Voltage | 5Vrms (-7.07V peak to + 7.07V peak max) | 1000V |
| Sample Rate | 64 samples/cycle | |
| Storage Rate | Programmable from 125ms to 1 day | |
| Storage Technique | Stop when full, FIFO and Extended Recording Mode (XRM™) | |
| Recording Length | 15 minutes to 8 weeks, programmable using DataView | |
| Memory | 240,000 measurement (512KB). The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed. | |
| Communication | USB 2.0 optically isolated | |
| Power Source** | 2 x 1.5V AA-cell alkaline batteries | |
| Battery Life | 100 hours to > 45 days (dependent on sample rate and recording length) | |
| Mechanical | ||
| Dimensions | 5.38 x 2.75 x 1.28″ (136 x 70 x 32mm) | |
| Max Conductor Size | Current probe dependent | |
| Weight (with battery) | 6.4 oz (181 grams) | |
| Case | UL94-VO | |
| Vibration | IEC 68-2-6 (1.5mm, 10 to 55Hz) | |
| Shock | IEC 68-2-27 (30G) | |
| Drop | IEC 68-2-32 (1m) | |
*The native measurement of the instrument is voltage. This voltage is scaled to display current corresponding to the users probe selection. This accuracy specification does not account for probe errors.
**A memory backup provides backup power while the batteries are being changed.
Tech Specs
Dataloggers / Data Acquisition/Current Dataloggers Template |
|
|---|---|
| Battery Life | 45 DAYS (1080 HR) |
| Power Source | Battery |
| # Inputs/Channels | 2 |
| SAMPLE RATE/Intervals | 64 samples per cycle |
| TRMS | Yes |
| Accuracy | +/- 0.5% of Reading + up to 1mV current channel and 1 V volt channel |
| LCD Screen | No |
| Software Included | Yes |
| Data Output Format | proprietary for use with AEMC DataView |
| Type | AC |
| Input Type | Voltage Output |
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
| Max Voltage | 600 V |
| Min Voltage | 0 V |
Test Equipment General Attributes |
|
| Unique Features | User selectable probes. 1 channel volts, the other channel current. 4 record modes Rexords from 15 min to 8 weeks recording length 15 min to 8 weeks |
| Warranty | 12 MONTHS (1 YEARS) |
| Additional Info/Comments | Current probe with voltage output not to exceed 1 volt |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Compact Flash |
| IP Rating | IP40 |
| Product Weight | 6.4 OUNCES (0.4 LBS) |
| Product Height | 1.28 IN |
| Product Length | 5.38 IN |
| Product Width | 2.75 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030390100 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 685338140408 |
