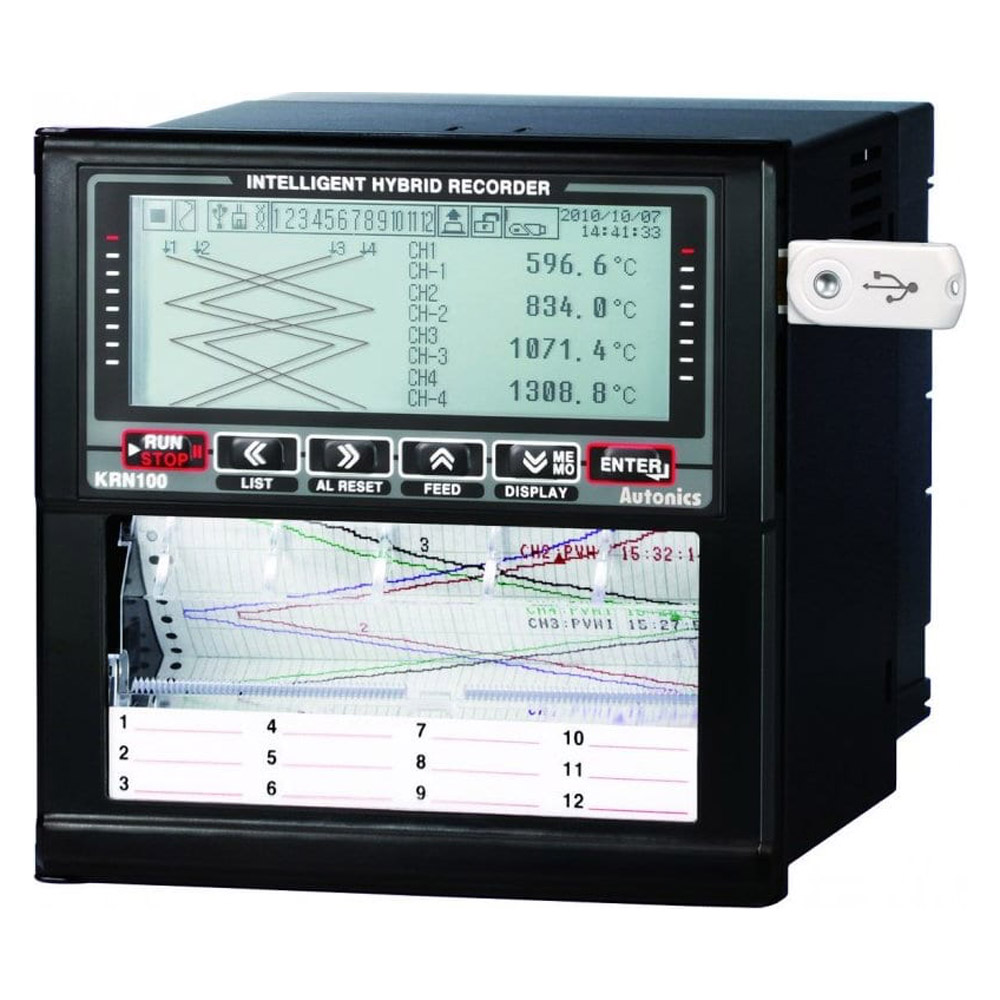

Name: Data Logger Autonics KRN100-04000-01-0S 100mm Hybrid Recorder
SKU: DT904-DTAT-KRN100-04000-01-0S
Price: 69194.36 MXN
Availability: InStock

Descripción

Autonics 100mm Hybrid Recorder

Hybrid 100 mm Chart and Paperless Recorder

2-in-1 Hybrid Type Paper/Paperless Recorder Autonics is unveiling a new 100mm hybrid recorder, KRN100 Series. KRN100 Series is a hybrid recorder that simultaneously displays measured values of temperature, humidity, flow, level and pressure on LCD panel and prints out on thermal paper. Measured data can be stored in USB flash drives and data logger function allows data backup from internal memory preventing data loss in case of paper shortage. Also, user convenience was enhanced with various options including parameter setting via USB configuration, input/output card slots supporting up to 12 channels and optional cards with various functions.

Integrated device management program(DAQMaster)

DAQMaster is the integrated device management program to set parameters and manage monitoring data.

Computer specification for using software
Item	Minimum requirements
System	IBM PC compatible computer with Intel Pentium ? or above
Operating system	Microsoft Windows 98/NT/XP/Vista/7
Memory	256MB or more
Hard disk	More than 1GB of free hard disk space
VGA	1024×768 or higher resolution display
Others	RS-232 serial port(9-pin), USB port

DAQMaster screen

Rear side of KRN100 standard model

This figure is the rear side of KRN100-04000-00-0S.

Slot	Description
1 to 6	Connects universal input card(KRN-UI2).
7 to 10	Connects digital input card(KRN-DI6), alarm output card(KRN- AR4, KRN-AT6), transmitter power output card(KRN-24V3).
C	Connects communication output card(KRN-COM).

I/O card

Universal input card [KRN-UI2]	Digital input card [KRN-DI6]

Alarm output card [KRN-AR4(relay output)]	Alarm output card [KRN-AT6(transistor output)]

Transmitter power output card [KRN-24V3]	Communication output card [KRN-COM]

Dimensions

Part descriptions

Front and side part

① Display part: Displays measurement values as trend graph, bar graph, or digital number (1/8/12 channel). Please refer to [Screen display] of the A-13p.
② Recording print part: Records measuring value of data by each channel with designated color.
③ Channel information part: Write the information by each channel.
④ Control key/Function key: Executes parameter setting and recording, and special function.

Key	Function
	Used for starting/stopping recording, changing input characters on virtual keyboard status, and displaying Function key. Press this key for 3 sec. in stop state, the ink cartridge moves to the center. (Use this key to replace the ink cartridge.)
	Used for going out from parameter setting group or setting manual channel switch mode. It also executes to release auto channel switch mode and printer list output (3 sec.) function.
	Used for moving parameter in setting mode, setting manual channel switch mode and forced alarm reset (3 sec.).
	Used for moving parameter in setting mode, increasing digit value, setting auto channel switch mode, and manual feed function (by pressing over 3 sec.) in stop state.
	Used for moving parameter in setting mode, decreasing digit value, changing display mode and executing manual digital memo (3 sec.) in recording state.
	Used for entering setting mode (3 sec.) and set value change mode.

④ USB port :Connects an USB memory. It recognizes max. 32Gbyte and if using cable, it is available up to 1.5m.

Rear part

① Slot(C) for connecting communication output card(KRN-COM)
② Slot(7to10) for connecting digital input card(KRN-DI6), alarm relay output
card(KRN-AR4), alarm transistor output card(KRN-AT6), transmitter power output
card(KRN-24V3).
You can connect total 4EA by combining digital input card, alarm output card, and
transmitter power output card, as below combination example.

③ Slot(1 to 6) for connecting universal input card(KRN-UI2)
④ Power connecting part (100-240VAC 50/60Hz)
* Above the rear side image is connected every otuput card to help your understand.

Inside

① Ink cartridge (model: D33006B-66X-01)
② Recording paper cassette Cassette saves the recording paper.
③ Recording paper cassette lever Press the lever down and this recording paper cassette is removed from KRN100.
* Remove the recording paper cassette for recording paper replacement, ink cartridge replacement.

Paper cassette

① Recording paper holder Movement holder of recording paper when recording
② Recording paper storage part Storage part for recorded recording paper
③ Front cover of recording paper storage Open recording paper guide for recording paper replacement
④ New recording paper storage: Storage part for new recording paper (1EA recording paper is storable.)
⑤ Rear cover of recording paper storage

Manufacturer Specs

Autonics KRN100 General Specifications
Series		KRN100
Power voltage		100-240VAC 50/60Hz
Allowable voltage range		85 to 110% of rated voltage
Power consumption		Max. 55VA
Screen	LCD type	STN Graphic LCD
	Resolution	320×120Pixel
	Adjusting brightness	4-level (OFF/Min/Standard/Max)
	Backlight	White LED, 2-level(Temp/Always)
Input channels		2 / 4 / 6 / 8 / 10 / 12-channel(2-channel/card)-Expandable
Universal input ^※1		Temperature sensor(RTD, thermocouple), analog
Sampling cycle		1 to 4-channel : 25ms/125ms/250ms, 5 to 12-channel : 125ms/250ms (inner sampling cycle is operation unit time for average movement filter and alarm output function.) ※Max. sampling cycle for TC-R, U, S, T sensor is 50ms.
Recording period in graph mode		10, 20, 40, 60, 120, 240mm/H
Recording speed accuracy		F.S. ±0.5%
Storage cycle		1 to 3600sec. (storage interval time to inner log file is 1 sec.)
Inner memory		512MB
USB memory		User purchased, recognizes max. 32GB, enables to use cable up to 1.5m
Dielectric voltage		250VAC 50/60Hz for 1min. (power terminal and case) ※ Excepts USB Device and Ethernet
Vibration strength (for convey and storage) and operating vibration		Vibration strength : 10 to 60Hz 4.9m/s² (each of X, Y, Z axes for 1 hour) Operating vibration : 10 to 60Hz 1m/s² (each of X, Y, Z axes for 10 min.)
Insulated resistance		Min. 20MΩ(at 500VDC megger)
Noise		±2kV the square wave noise (pulse width 1㎲) by the noise simulator
Time accuracy		Within ±2min./year (enables to use up to 2100 year)
Mechanism	Ink cartridge	Enables to normal print with going and returning printing max. 5 times within 7 days after opening the unit
	Ink dry time	Max. 15 minutes
Protection		IP40(for front panel)
Recording paper		113mm×9m
Environment	Ambient temperature	0 to 50℃, storage : -20 to 60℃ (without ink cartridge)
	Ambient humidity	35 to 85% RH, storage : 35 to 85% RH
Unit weight		Approx. 1.7 to 2.0kg
※ 1. For more information of universal input, please refer to 「I/O card」of the A-6 page. ※ 2. When using this unit in high humidity, it may cause paper jam. Please do not use this unit in high humidity. ※ Environment resistance is rated at no freezing or condensation.
