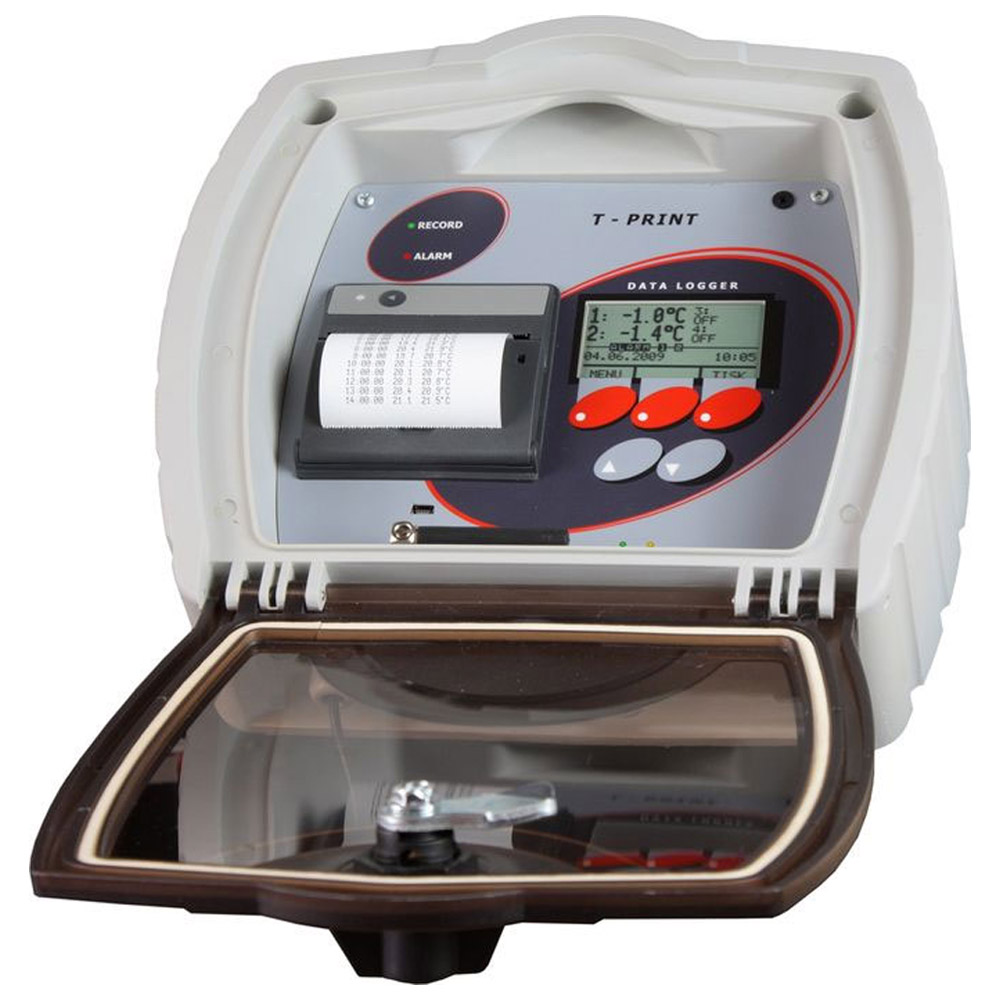

Comet G0841MW T-PRINT Temperature Recorder with Built-in GSM Modem and Output for Wireless Alarm Unit
- Print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
- Designed specifically for external installation on semi-trailers
- Built in a durable plastic case with transparent lid
Temperature Recorders with Built-in Printer
Recorder is built in a durable plastic case with transparent lid. Instrument is designed for temperature measurement and record from up to two external temperature probes and two binary signals from external contacts (it records time of monitored event, e.g. door opening/closing). Measured temperature value from both channels and actual binary inputs states are displayed on dual line illuminated LCD display and are recorded in adjustable time interval to internal, non- volatile memory. Recorded values will not be lost even in disconnection instrument from power). Record of actual or average values is user selectable including minimum and maximum temperatures. If memory is fulfilled oldest recorded values are overwritten with new values. Setting and control of recorder is performed from keyboard recorder or by means of computer. In both cases setting can be protected by password.
Recorder is equipped with alarm function. I.e. each 5 seconds (independently on adjusted logging interval) temperature is measured from both external probes, measured value from each channel is compared with two adjustable limits for each channel (including signals from binary inputs). Limit exceeding is indicated on the LCD display, by the red LED and acoustically. Alarm evaluation is possible to enable or disable for each channel. Audible indication can be also enabled or disabled.
Measured values recorded in recorder memory can be printed out in table or graph format on built-in printer or transferred by means of USB communication cable to personal computer for evaluation. Also Delivery Ticket with current temperature value(s) and header can be printed.
Recorder is equipped with internal GPRS modem and can be optionally equipped with radio sender for wireless alarm unit G9000.
Instrument conforms EN 12830 requirements: conditions for class 1 accuracy and is suitable for temperature record during storing (S) and transport (T) of food in climate environment code A, B. Recorder is designed specifically for external installation on semi-trailers.
Complete solution for temperature record during the transport.
Manufacturer Specs
| General Specifications | |
| Measured Value: | Temperature |
| Construction Type: | For External Temperature Probes Pt1000 |
| Temperature Measuring Range: | -90 to 260 °C |
| Two-State Input: | Yes |
| Lcd Display: | Yes |
| Built-In Printer: | Yes |
| Operating temperature range: | -30 to +65°C |
| Accuracy of temperature input without probe: | ±0.2°C |
| Resolution of the reading: | 0.1°C |
| Digital output: | serial RS232 |
| Real time clock: | year, leap year, month, day, hour, minute, second |
| Data logging interval: | adjustable from 1 minute to 60 minutes |
| Total memory capacity: | 1MB – up to 172 000 records |
| Dimensions: | 250 x 242 x 110 mm (W x H x D) |
| Power: | 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery |
| Consumption while printing: | approximately 8 W |
| Consumption – not printing: | approximately 0.2 W |
| IP protection: | IP65 |
| Weight without probes: | approximately 1650 g |
| Warranty: | 3 years |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Country of Origin | Czech Republic |
